Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 9 illustrations

Illustrations

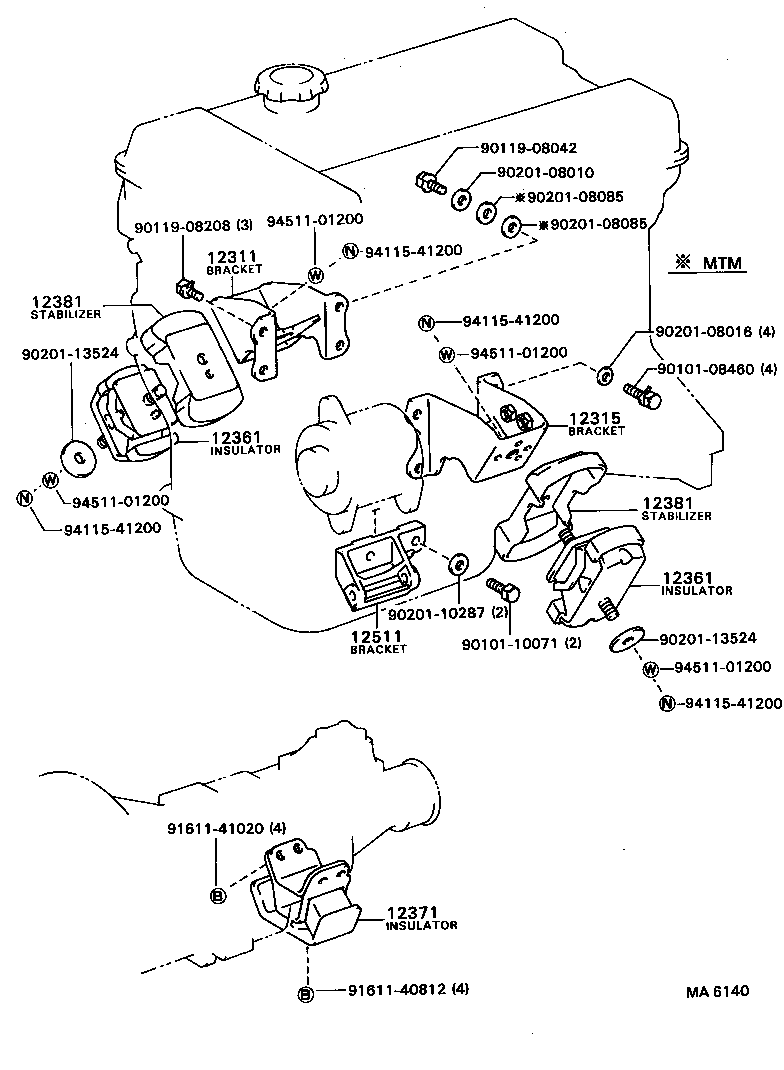

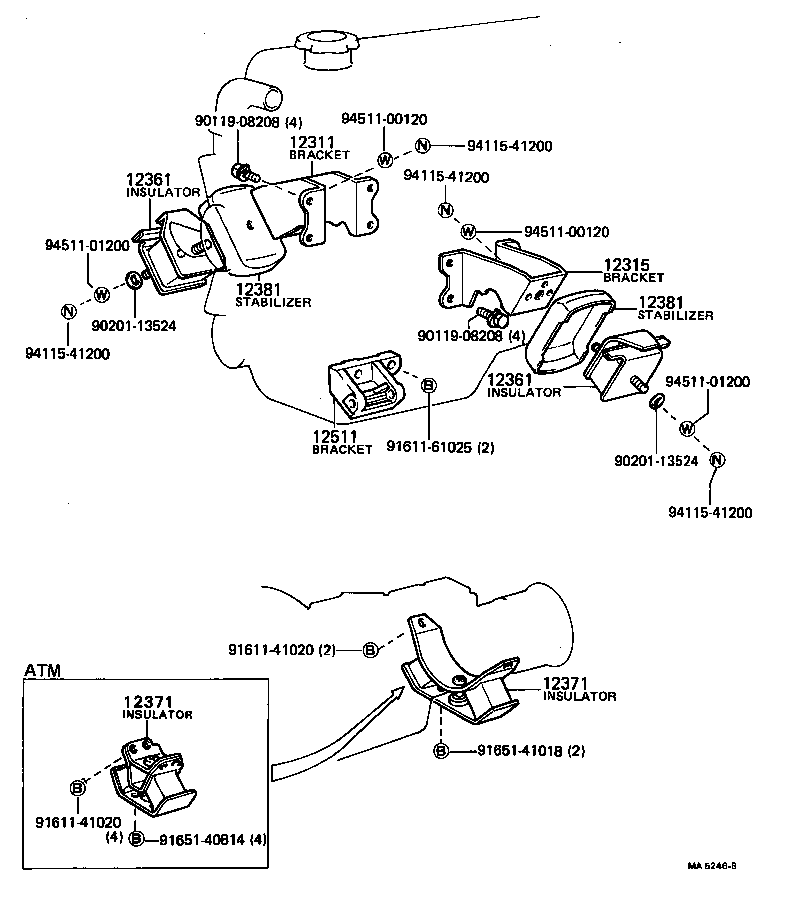

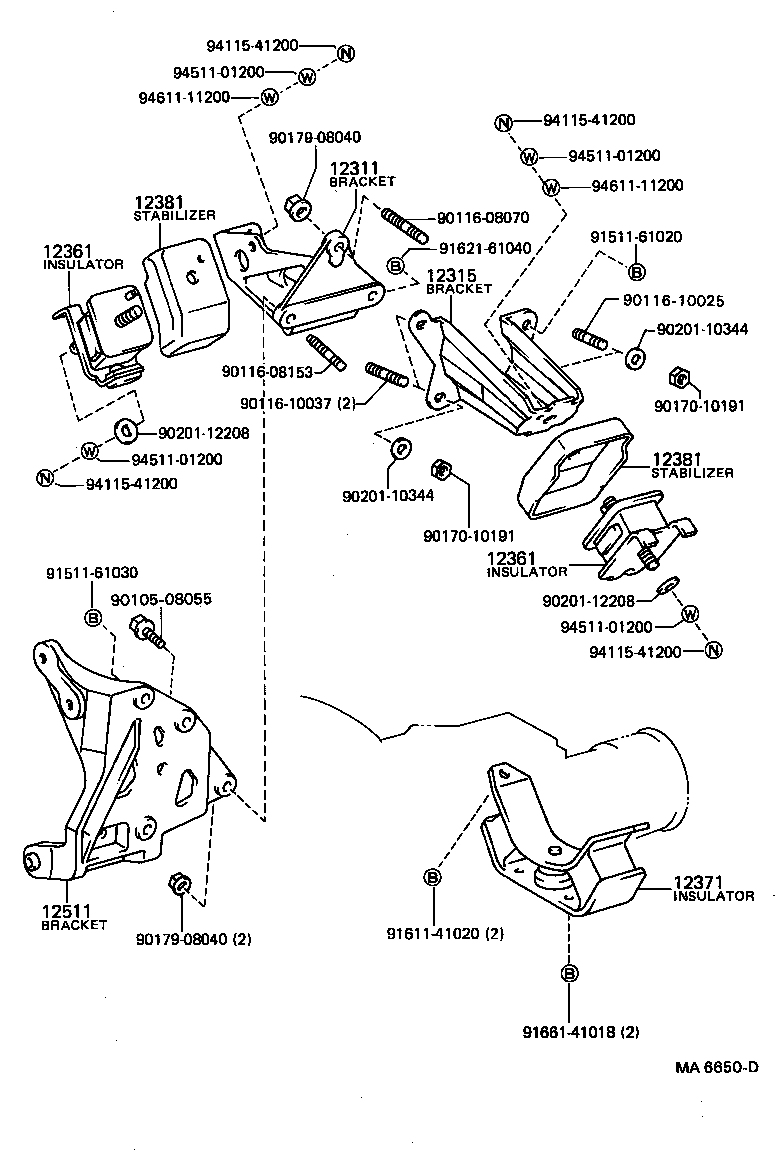

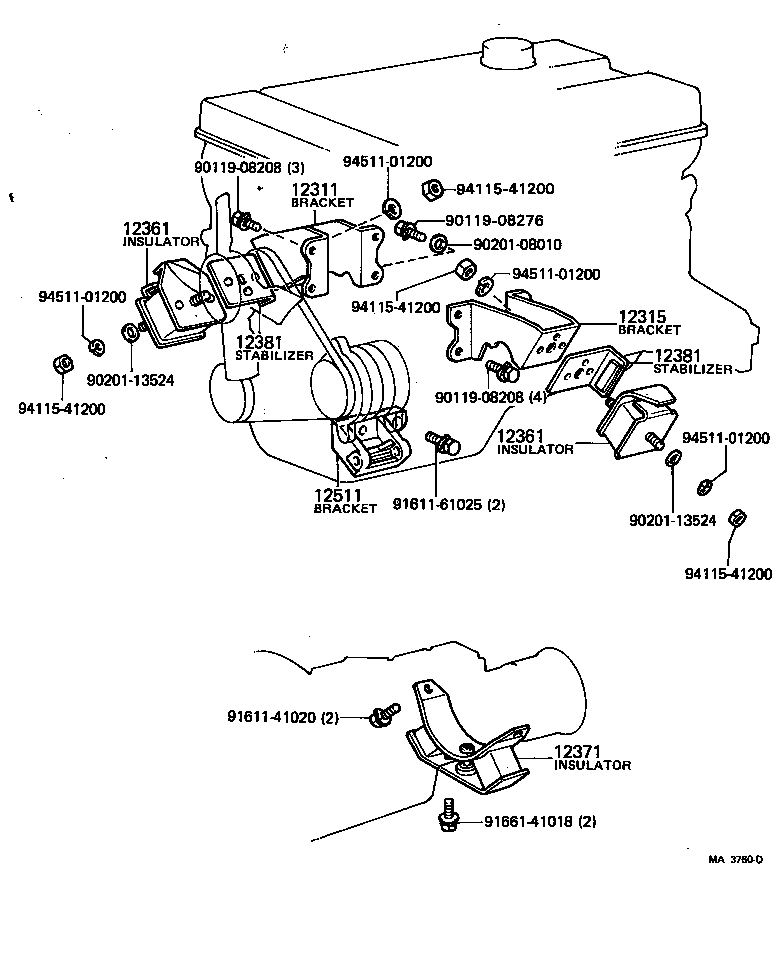

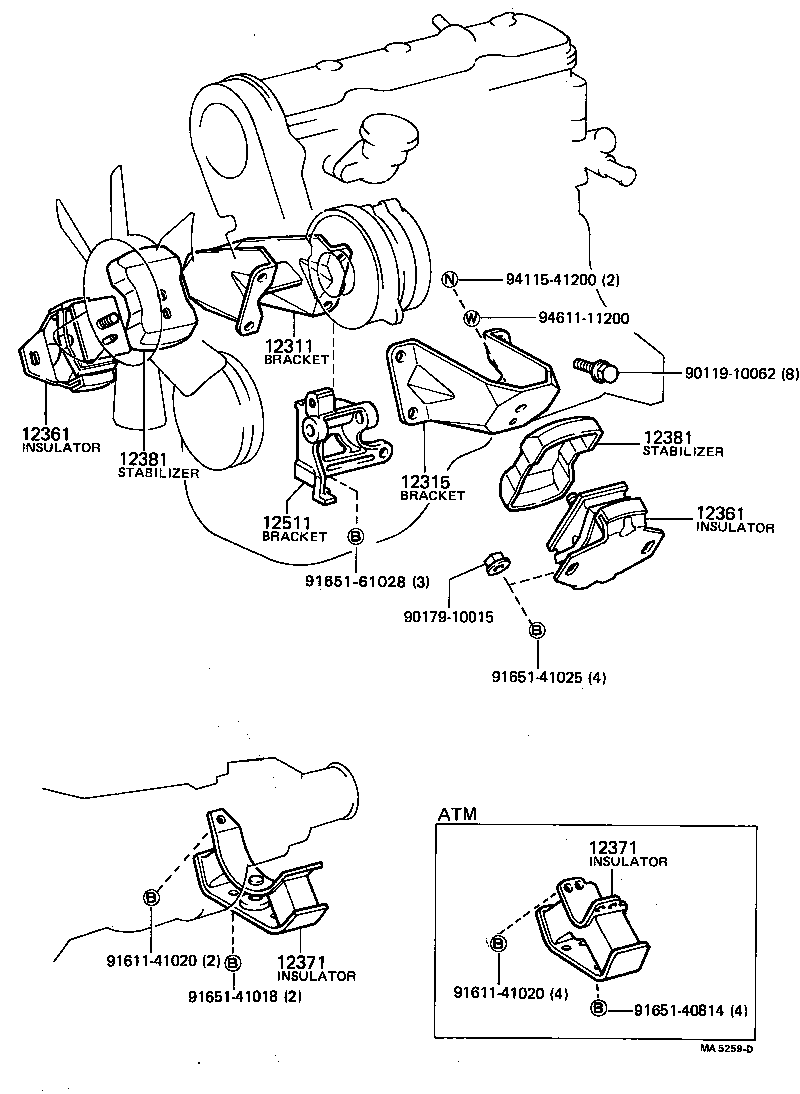

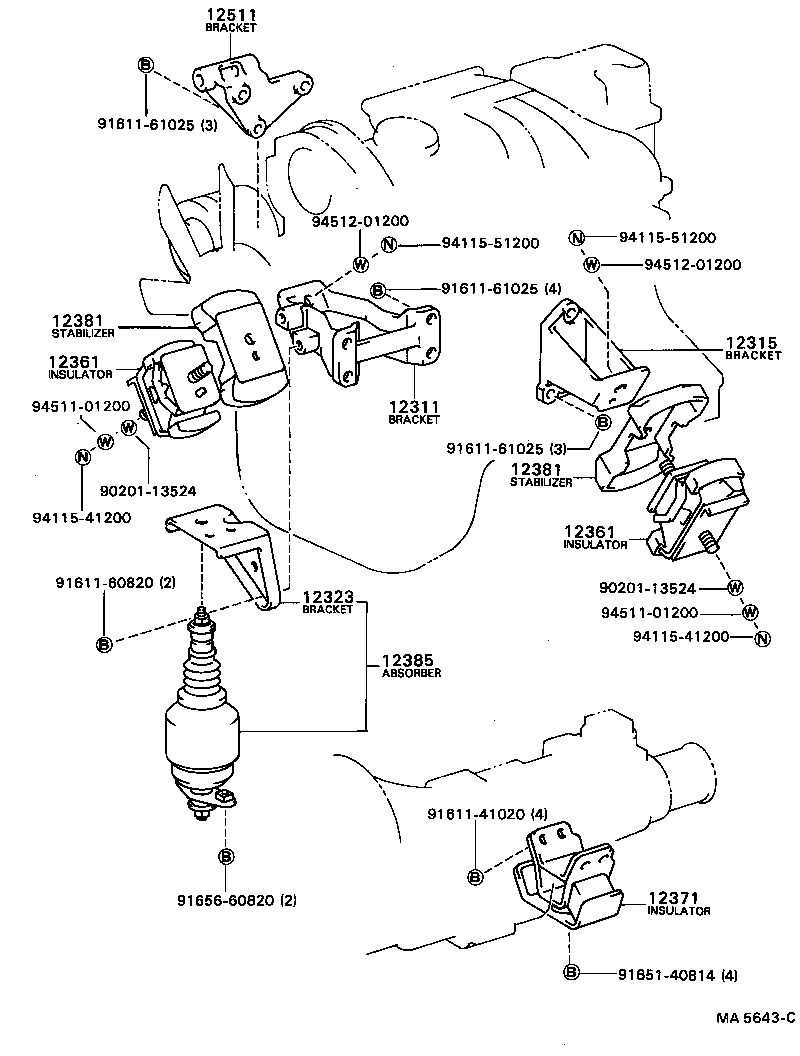

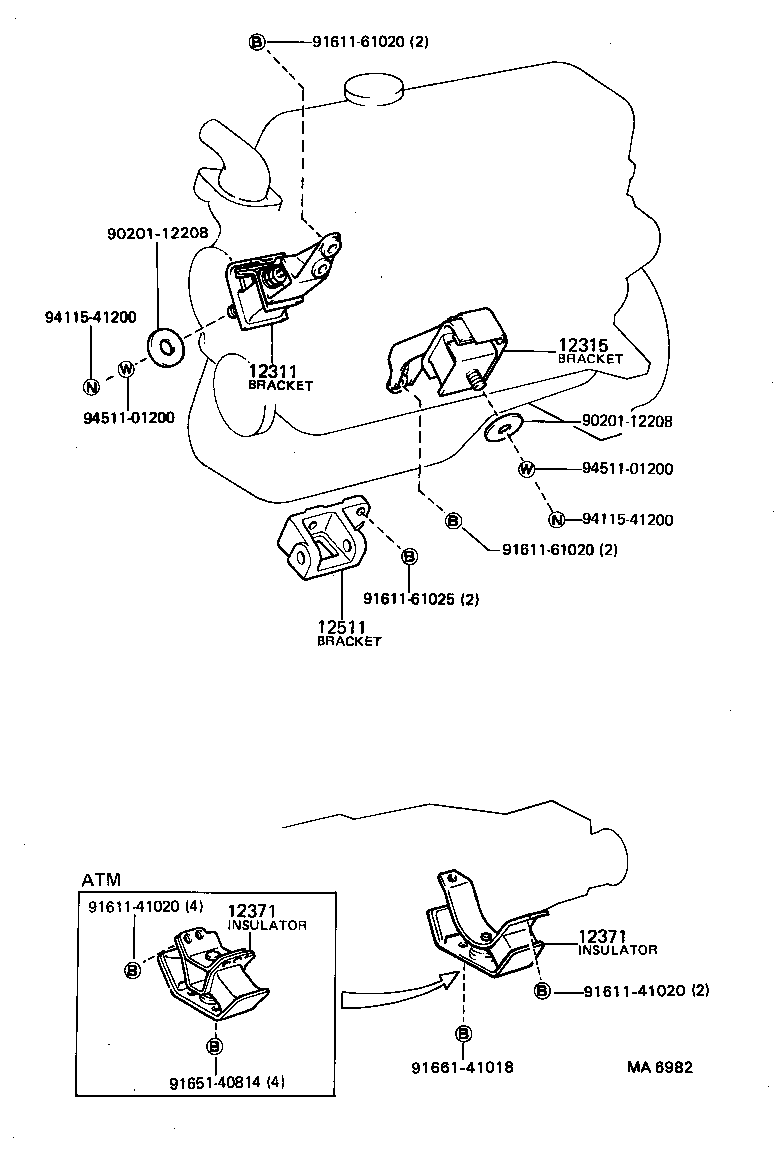

Figure MA5466D MA5466D 1981-09 → — Figure MA6650D MA6650D 1983-05 → 1985-07 Figure MA5643C MA5643C 1982-02 → — Figure MA6982 MA6982 1983-08 → — Figure MA5289B MA5289B 1981-09 → 1982-10 Figure MA5259D MA5259D 1981-09 → — Figure MA5246B MA5246B 1981-09 → 1983-08 Figure MA3760D MA3760D 1981-09 → 1983-05 Figure MA6140 MA6140 1982-10 → 1985-07

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
