Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

16 part groups · 9 illustrations

Illustrations

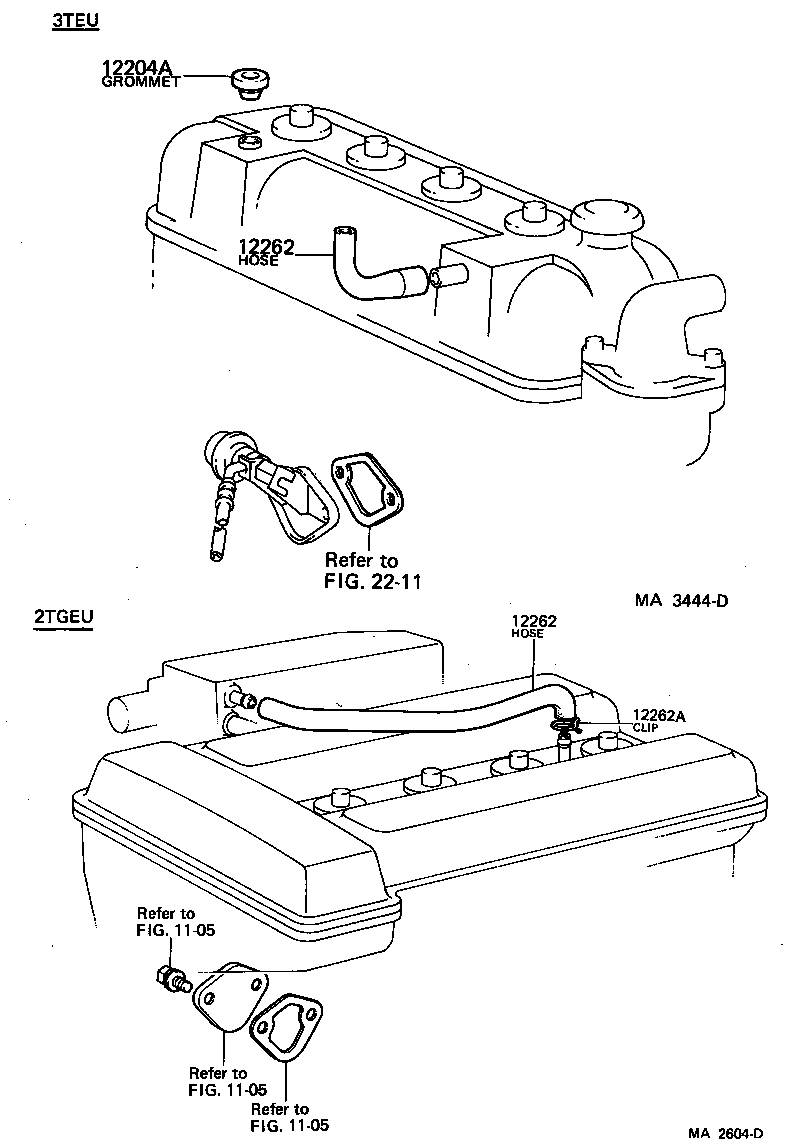

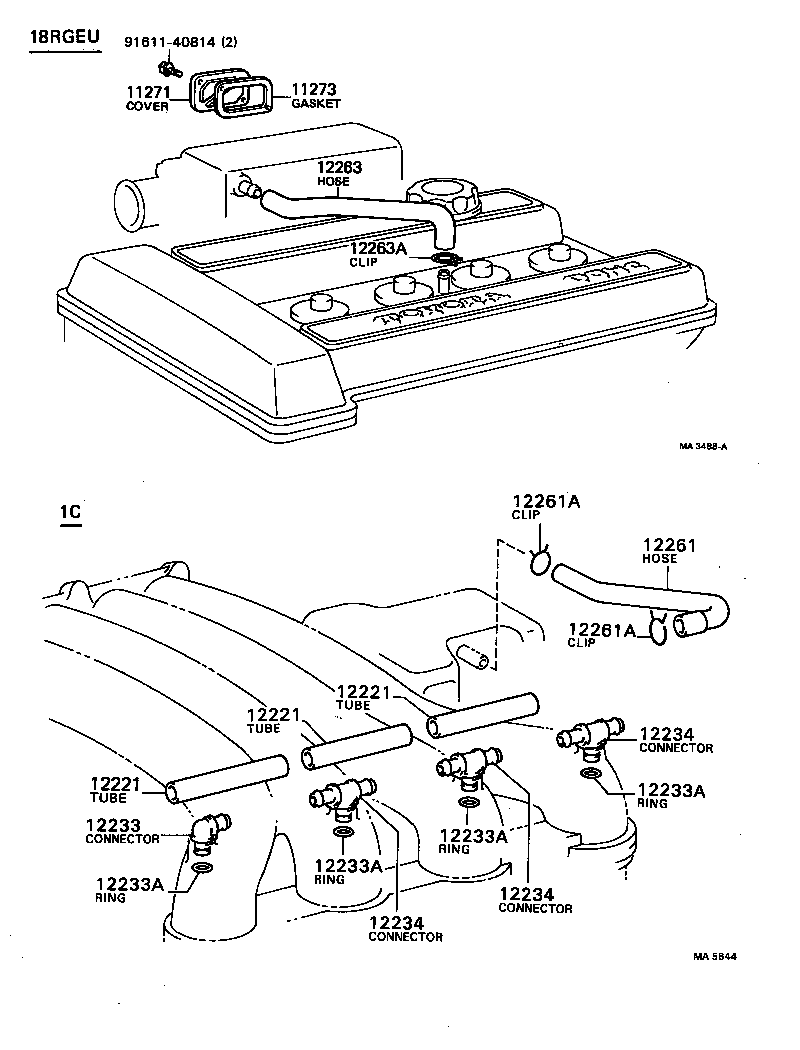

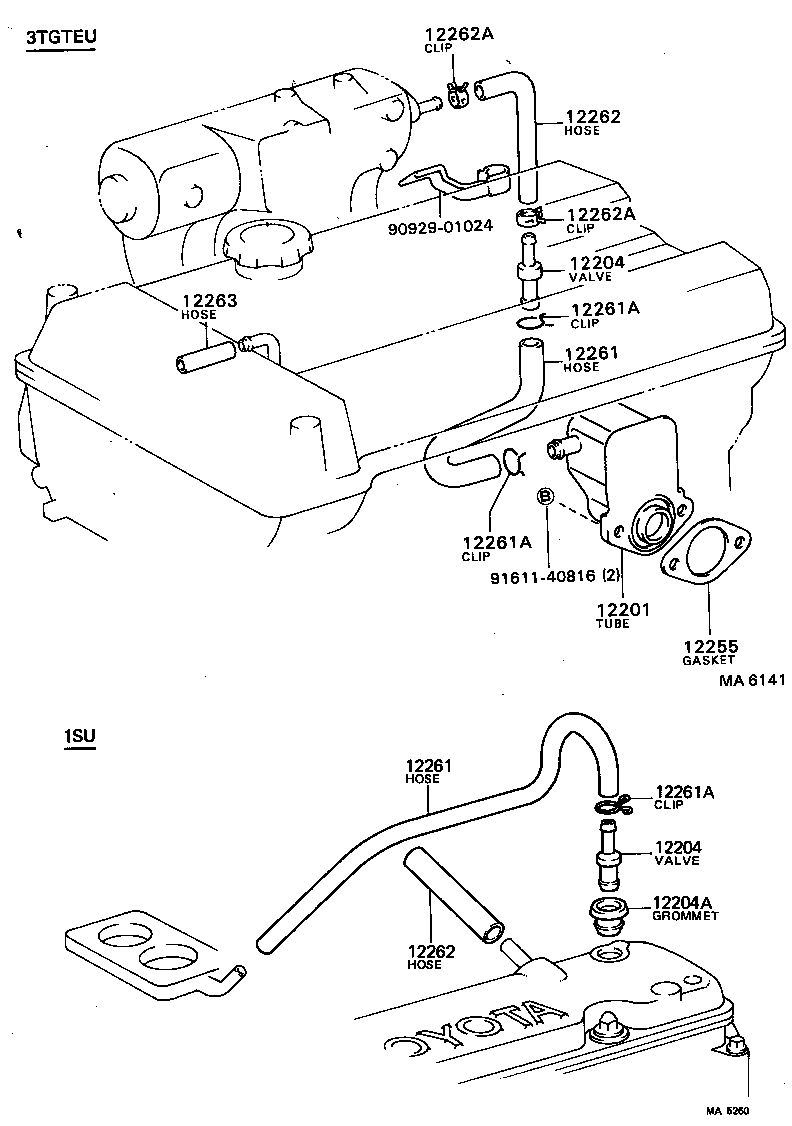

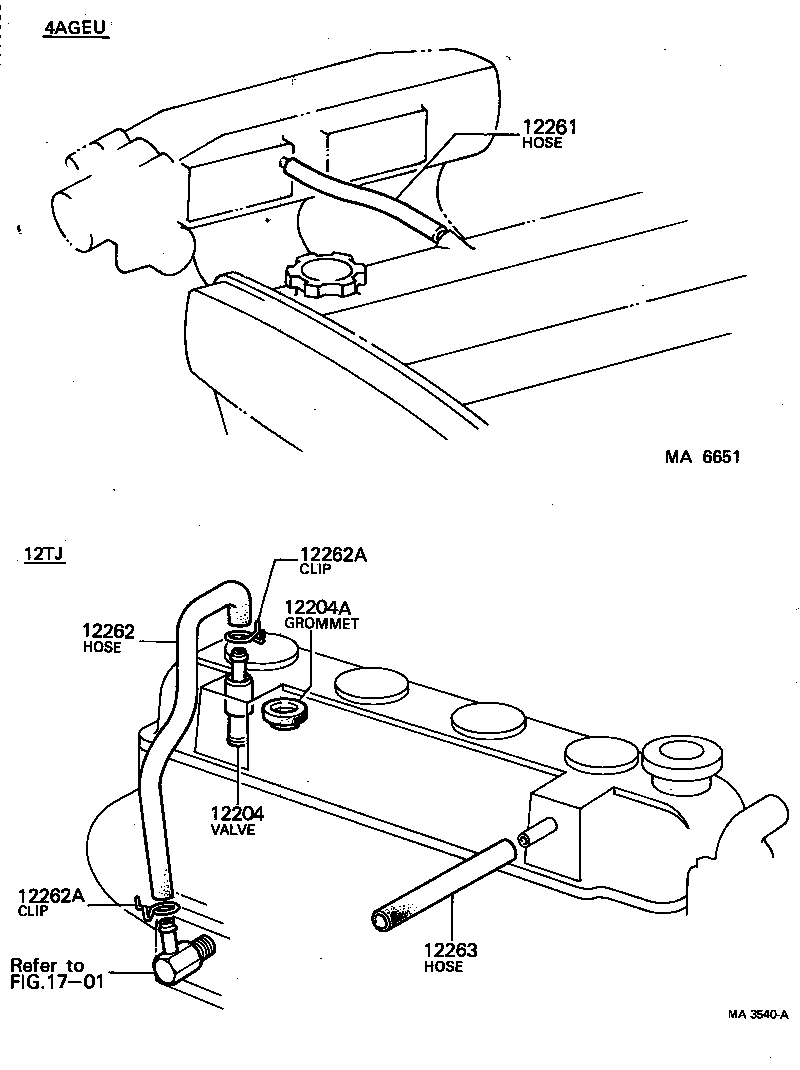

Figure AS0289A AS0289A 1981-09 → — Figure AS0381 AS0381 1981-09 → 1985-07 Figure AS0341 AS0341 1981-09 → — Figure MA6993 MA6993 1983-08 → — Figure AS0341 AS0341 1981-09 → — Figure AS0291A AS0291A 1981-09 → — Figure AS0381 AS0381 1981-09 → 1985-07 Figure AS0290A AS0290A 1981-09 → 1983-05 Figure AS0291A AS0291A 1981-09 → —

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12221 Tube, Ventilation NO.1
12233 Connector, Ventilation NO.1
12233A Ring, O(FOR VENTILATION CONNECTOR)
12234 Connector, Ventilation NO.2
12254 Cover, Ventilation Valve
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
