Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

45 part groups · 11 illustrations

Illustrations

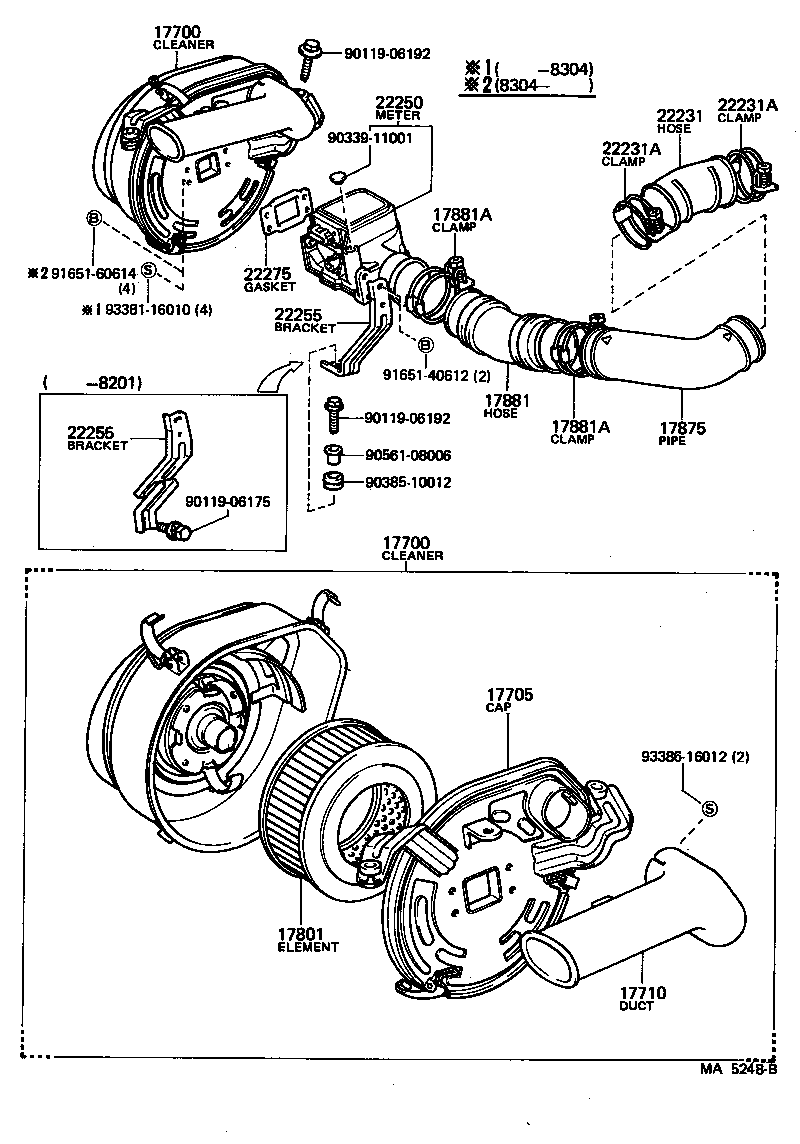

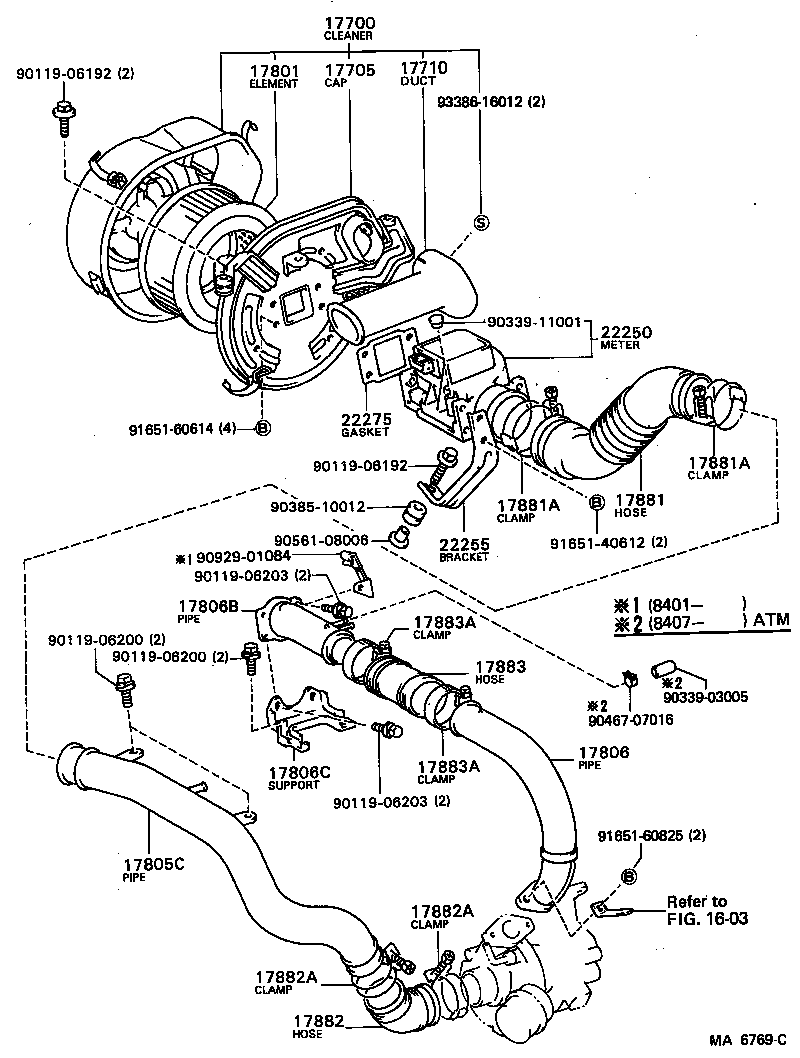

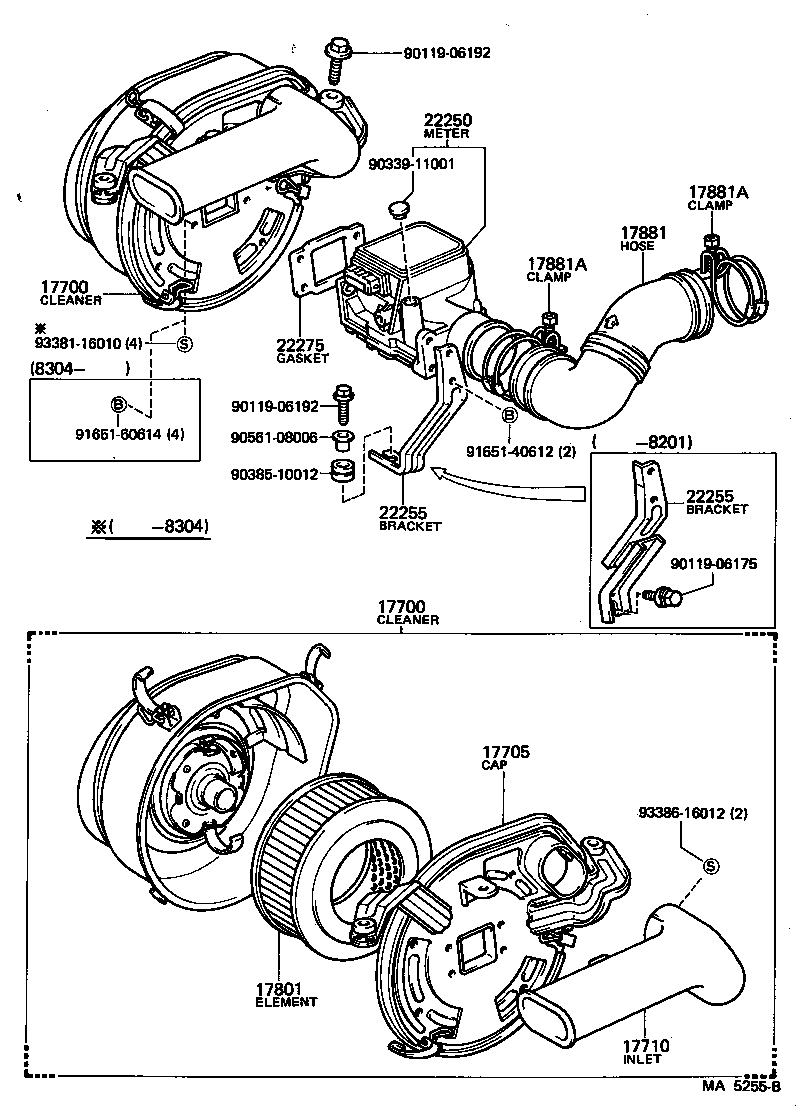

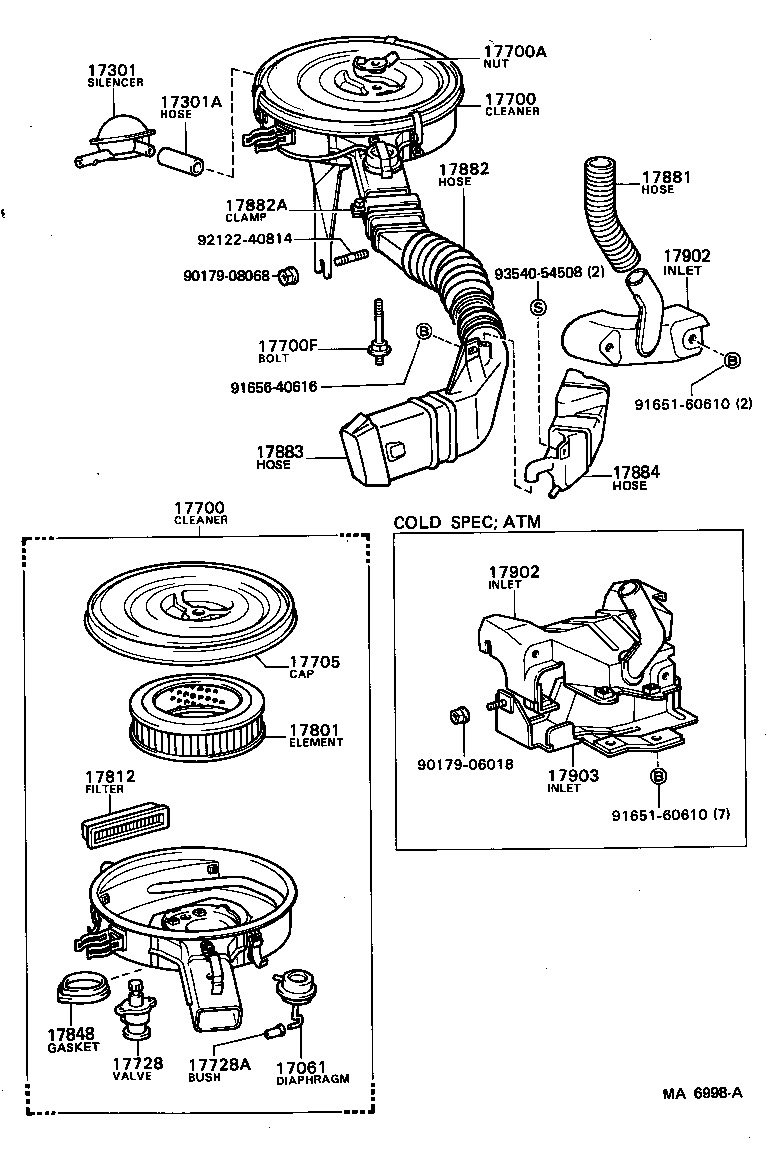

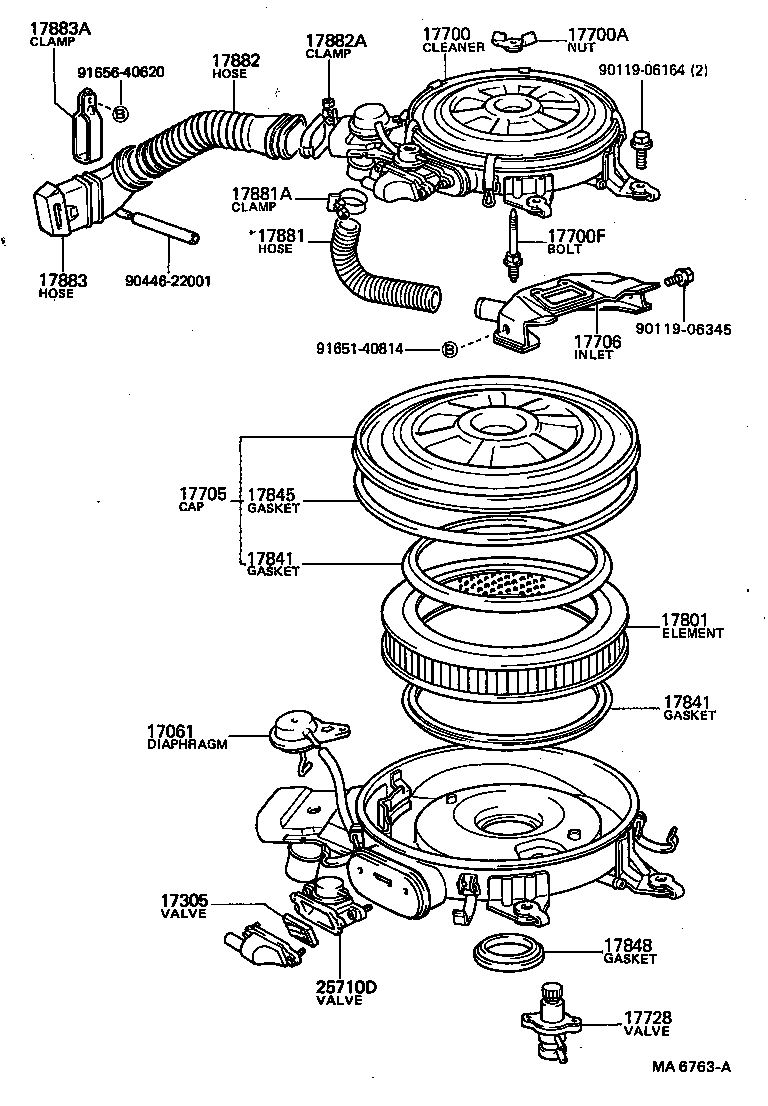

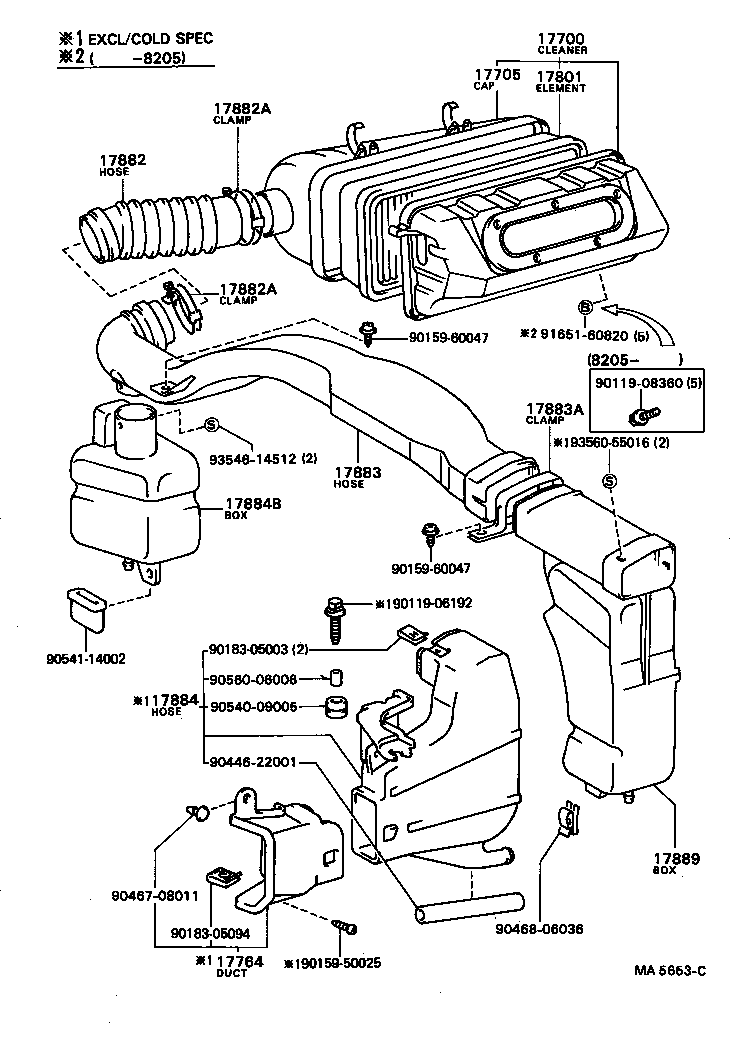

Figure MA5470 MA5470 1981-09 → 1983-05 Figure MA6763A MA6763A 1983-05 → — Figure MA6759A MA6759A 1983-05 → 1985-07 Figure MA5653C MA5653C 1982-02 → — Figure MA6998A MA6998A 1983-08 → — Figure MA5255B MA5255B 1981-09 → 1983-05 Figure MA5268F MA5268F 1981-09 → — Figure MA5436A MA5436A 1981-09 → 1983-08 Figure MA5248B MA5248B 1981-09 → 1983-05 Figure MA5255B MA5255B 1981-09 → 1983-05 Figure MA6769C MA6769C 1982-10 → 1985-07

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17301 Silencer Sub-assy, Air Suction
17301A Hose(FOR AIR CLEANER TO SILENCER)
17305 Valve Sub-assy, Reed
17670C Valve Assy, Air By-pass
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17728 Valve, Thermostatic
17728A Bush
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806B Pipe Sub-assy, Air Cleaner, NO.3
17806C Support, Air Cleaner Pipe
17812 Filter, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17872 Bracket, Intake Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884B Box, Air Cleaner, NO.1
17889 Box, Air Cleaner Hose, NO.2
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
17908 Filter Sub-assy, Air Suction
17991 Case, Air Suction Filter
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
23285B Valve, Check, NO.1
25710D Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
