Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 4 illustrations

Illustrations

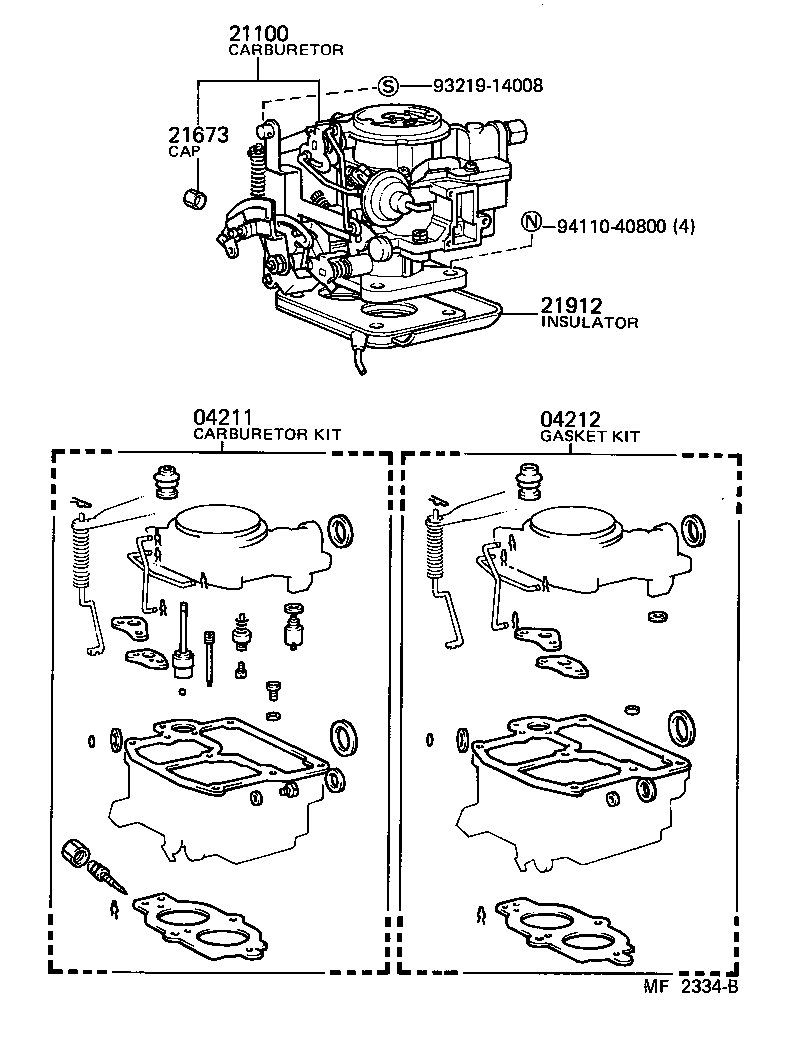

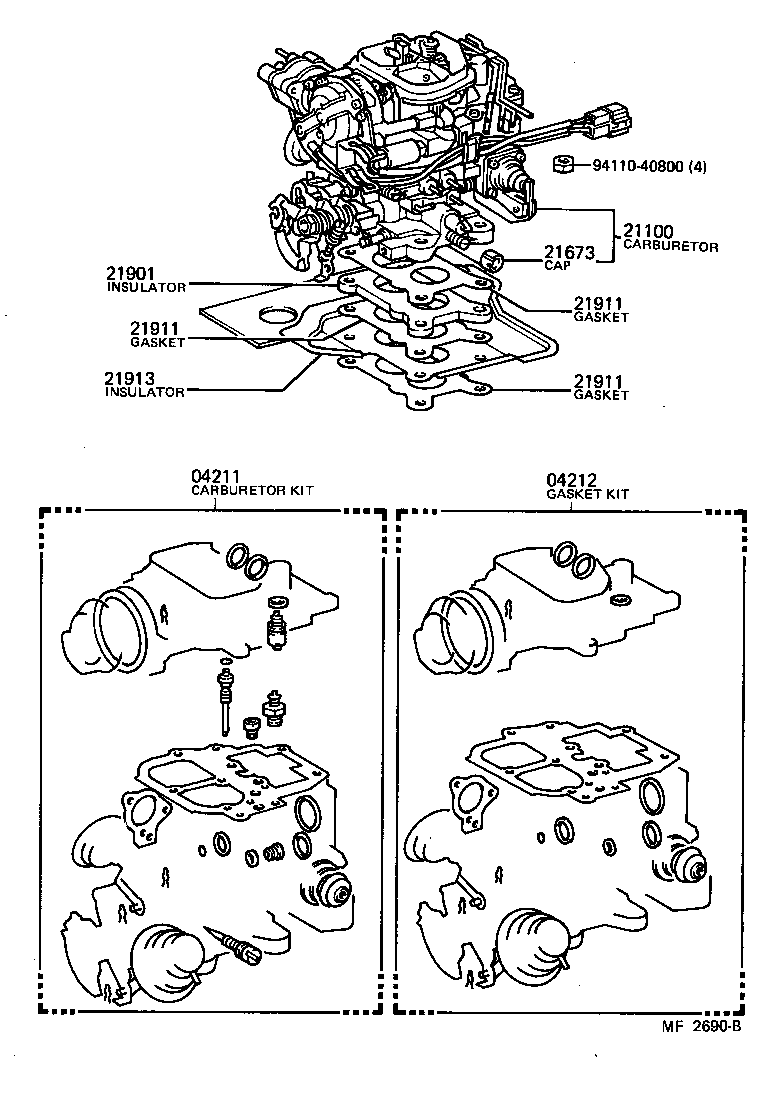

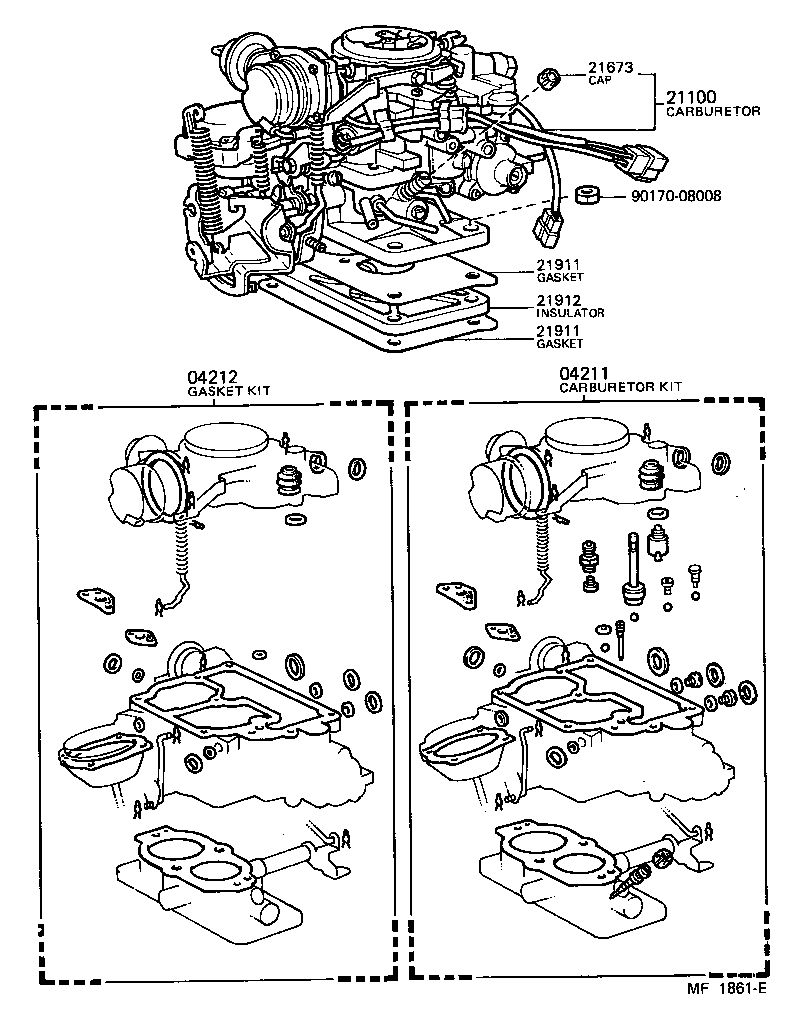

Figure MF3728A MF3728A 1981-09 → — Figure MF2334B MF2334B 1983-08 → — Figure MF2690B MF2690B 1981-09 → — Figure MF1861E MF1861E 1981-09 → 1983-08

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21912 Insulator, Carburetor Heat
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
