Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 6 illustrations

Illustrations

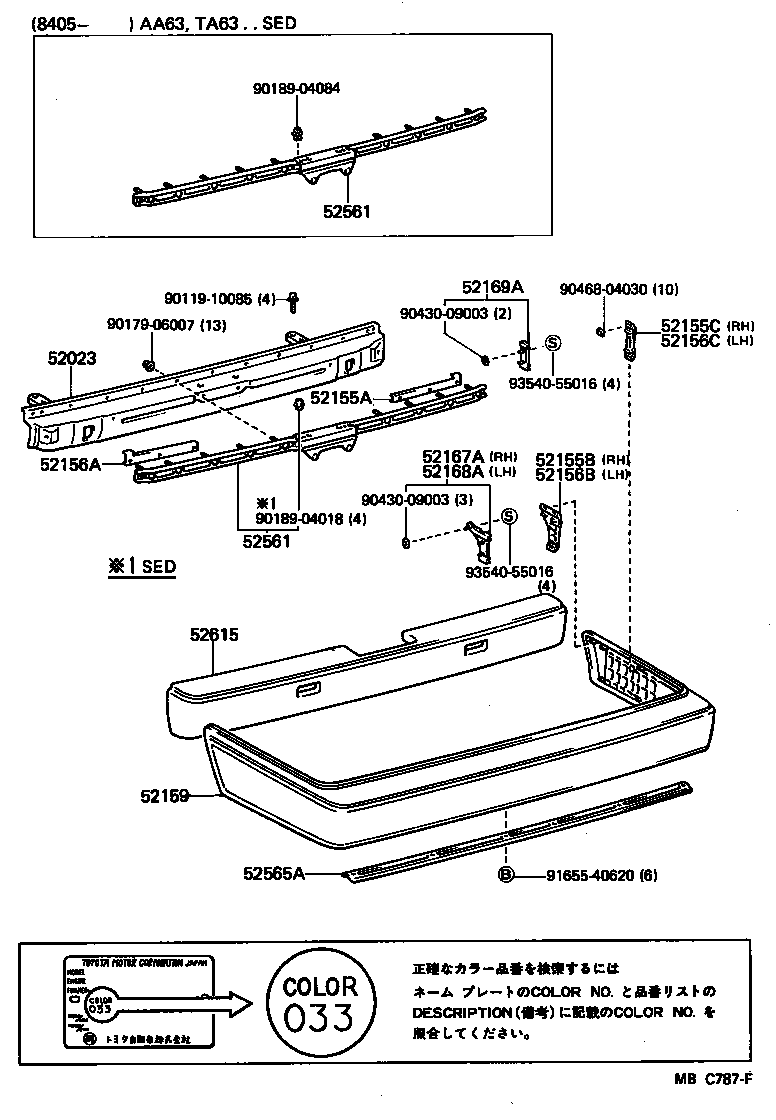

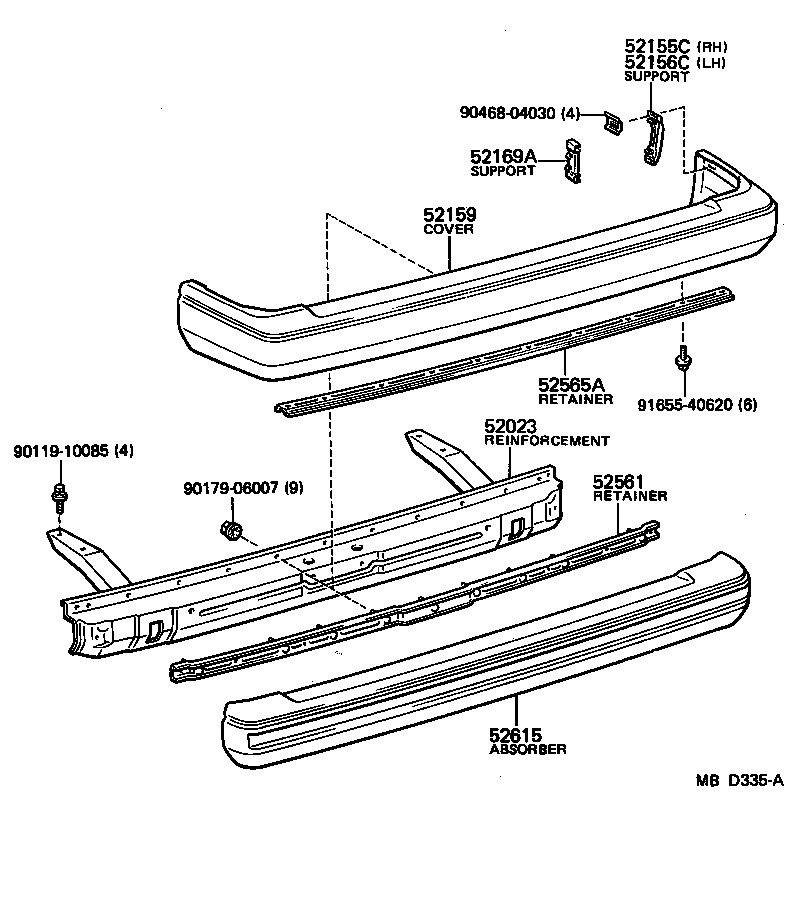

Figure MBC786D MBC786D 1981-09 → — Figure MBC786D MBC786D 1982-06 → 1985-07 Figure MBC787F MBC787F 1981-09 → — Figure MBC787F MBC787F 1982-02 → — Figure MBC788F MBC788F 1981-09 → — Figure MBD335A MBD335A 1982-03 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52155B Support, Rear Bumper Side, NO.2 RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156B Support, Rear Bumper Side, NO.2 LH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52169A Support, Rear Bumper Side, NO.3
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
