Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

Figure MBC789F

MBC789F 1981-09 → —

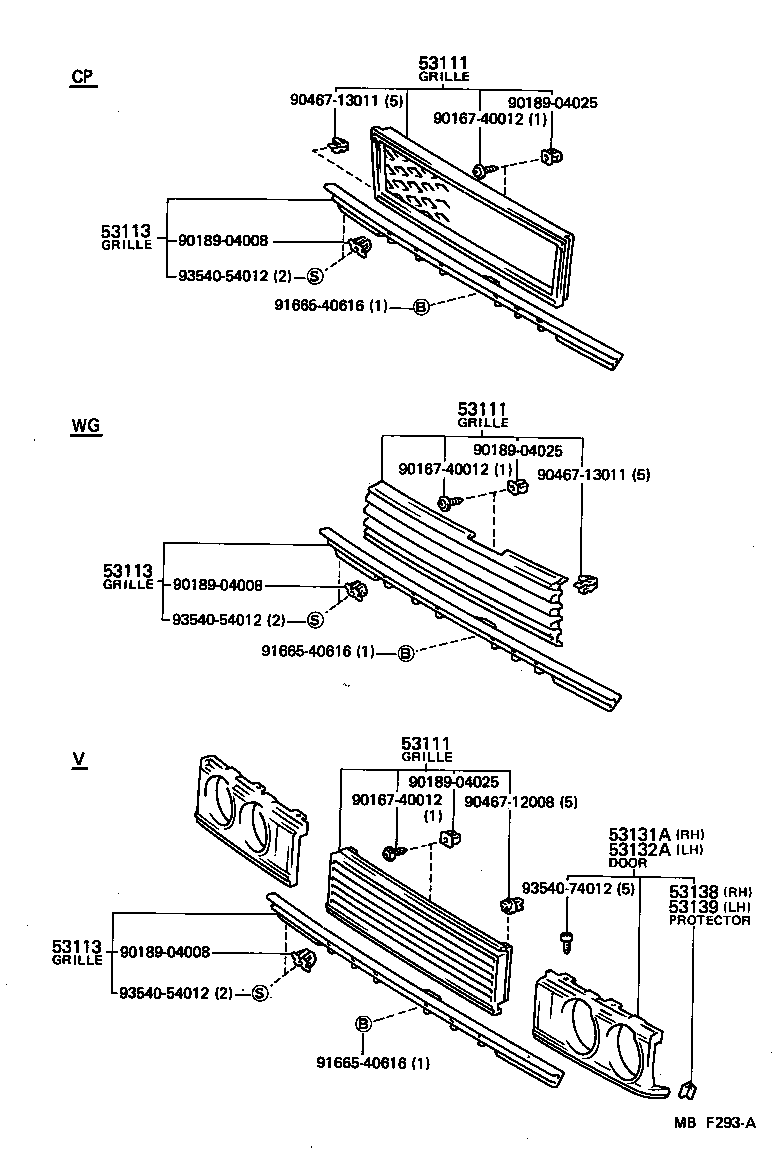

Figure MBF293A

MBF293A 1981-09 → —

Part groups

PNC	Description
53111	Grille, Radiator
53113	Grille, Radiator, LH OR Lower
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH
53138	Protector, Headlamp Door, RH
53139	Protector, Headlamp Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
