Toyota Carina FR
1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan
Discontinued model
Data version 1988-05

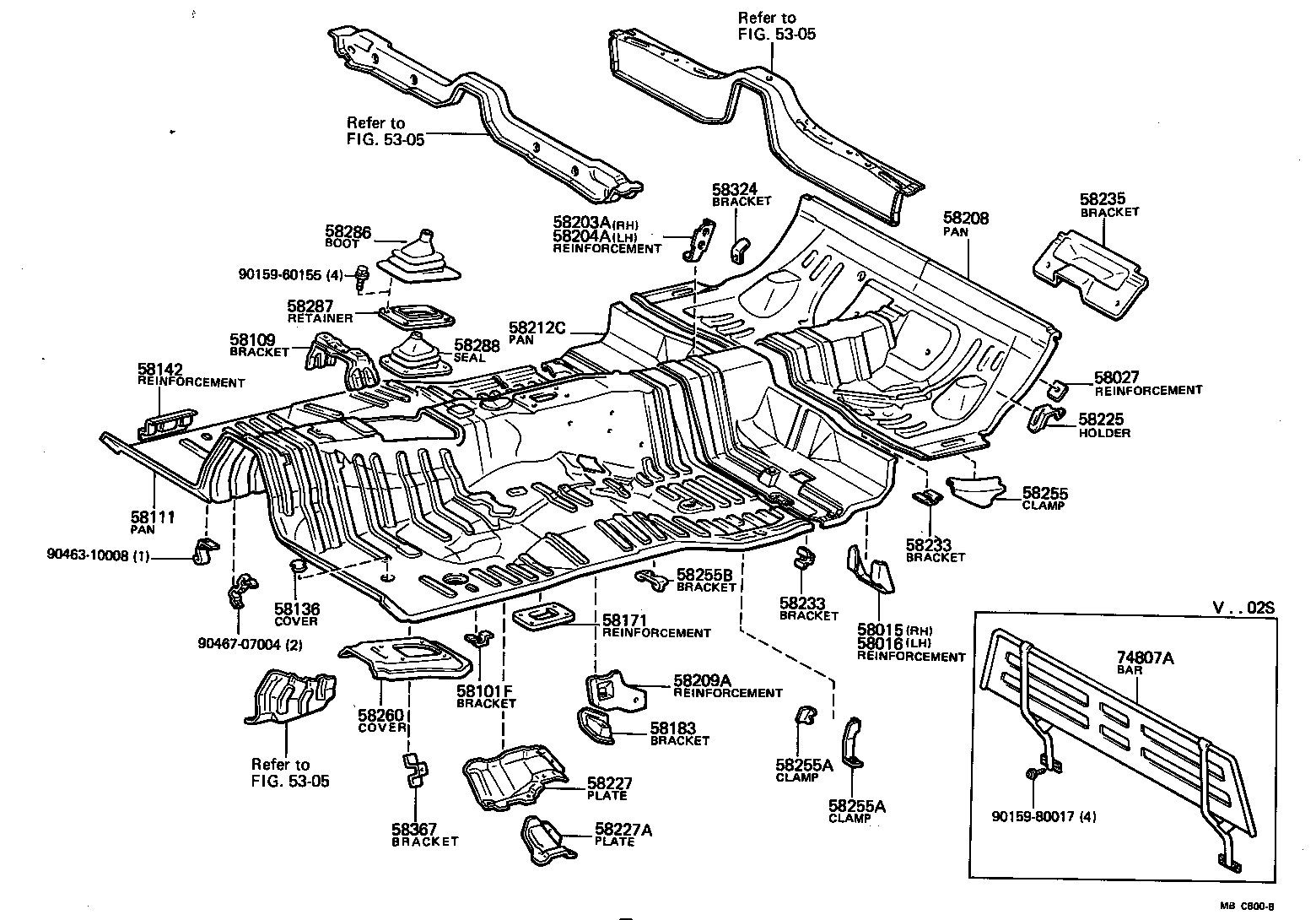

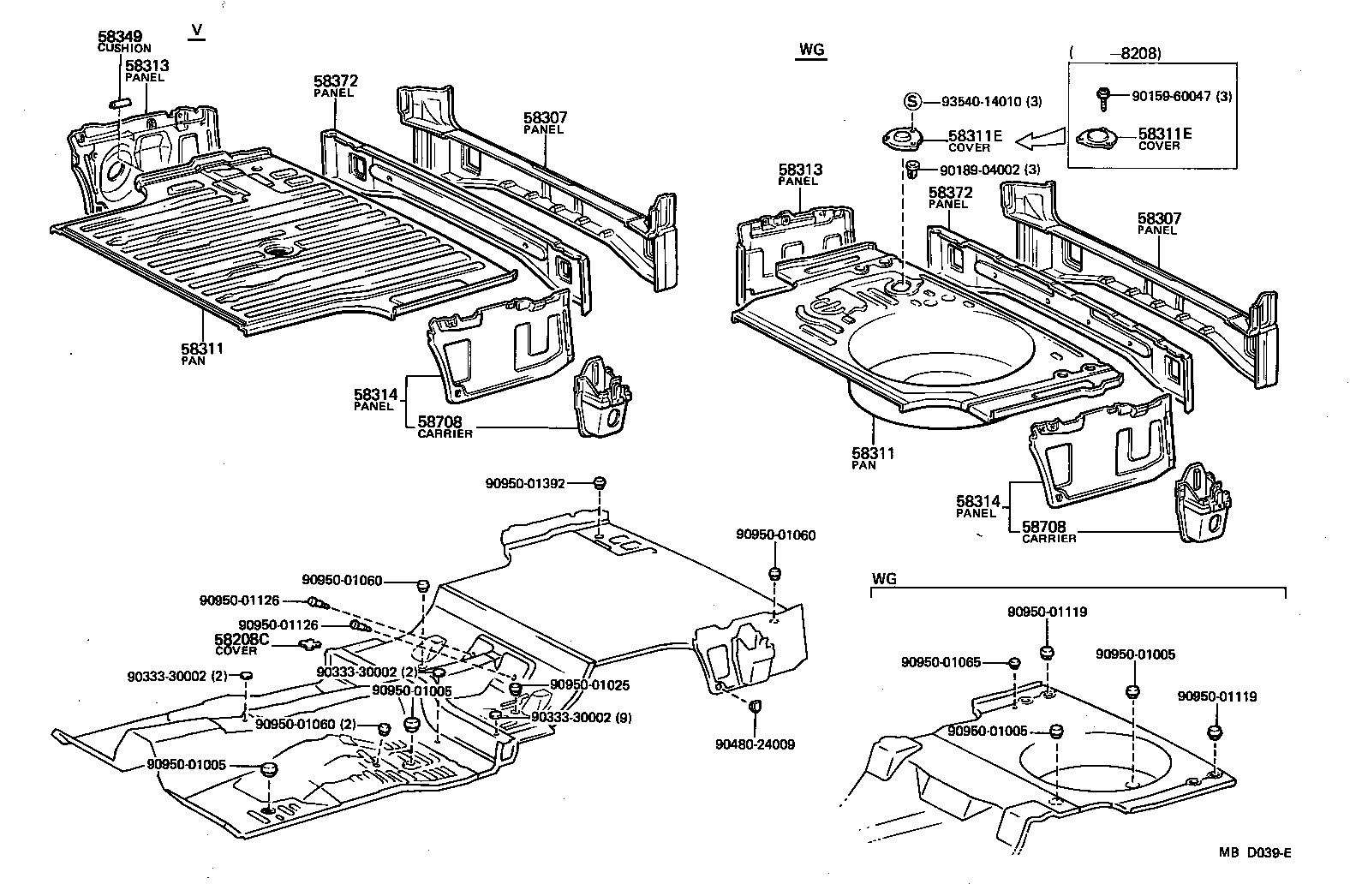

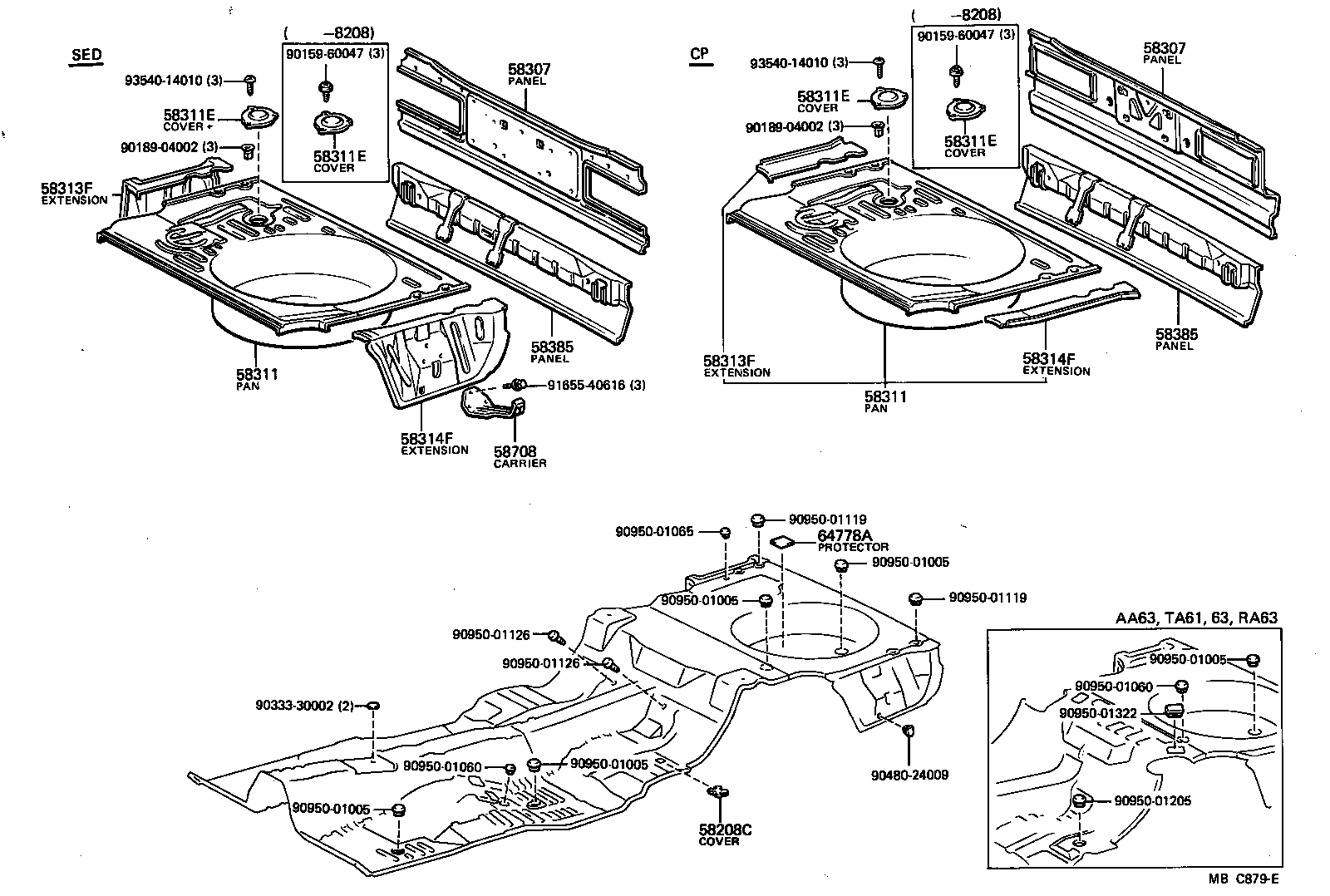

Floor Pan & Lower Back Panel
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52277 | Retainer, Rear Suspension Member Lower Stopper, RH |
| 52278 | Retainer, Rear Suspension Member Lower Stopper, LH |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57721 | Protector, Lower Control Link |
| 58015 | Reinforcement, Belt Anchor TO Floor Pan, RH |
| 58016 | Reinforcement, Belt Anchor TO Floor Pan, LH |
| 58027 | Reinforcement, Belt Anchor TO Floor Pan, NO.1 |
| 58052D | Extension, Center Floor TO Package Tray |
| 58052E | Extension, Center Floor TO Brace |
| 58052F | Plate, Luggage Hold Belt Anchor |
| 58101F | Bracket, Mounting, Floor, NO.1 |
| 58109 | Bracket Sub-assy, Instrument Panel Brace Mounting |
| 58111 | Pan, Front Floor |
| 58136 | Cover, Front Floor Hole |
| 58137 | Bracket, Center Floor Heat Insulator, NO.4 |
| 58142 | Reinforcement, Floor Side Member TO Floor Pan |
| 58171 | Reinforcement, Parking Brake Base |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58203A | Reinforcement Sub-assy, Center Floor Panel, RH |
| 58204A | Reinforcement Sub-assy, Center Floor Panel, LH |
| 58208 | Pan, Center Floor |
| 58208C | Cover, Center Floor Hole |
| 58209A | Reinforcement Sub-assy, Drive Shaft Center Support |
| 58212C | Pan, Center Floor, Front |
| 58225 | Holder, Rear Seat Cushion |
| 58227 | Plate, Air Guide, Outside |
| 58227A | Plate, Air Guide |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58235 | Bracket, Differential Carrier Bumper Mounting |
| 58247 | Panel, Footrest, Inside |
| 58255 | Clamp, Parking Brake Cable, NO.1 |
| 58255A | Clamp, Parking Brake Cable, NO.2 |
| 58255B | Bracket, Parking Brake Cable Guide, NO.1 |
| 58260 | Cover Assy, Transmission, Front |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58287 | Retainer, Shift Lever Boot |
| 58288 | Seal, Shift Lever Boot |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58311E | Cover, Rear Floor Service Hole |
| 58313 | Panel, Rear Floor Side, RH |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58324 | Bracket, Flexible Hose |
| 58348 | Cover, Rear Absorber Service Hole |
| 58349 | Cushion, Rear Floor Side |
| 58367 | Bracket, Fuel Tube Clamp |
| 58368C | Bracket, Fuel Tube, NO.3 |
| 58372 | Panel, Body Lower Back, Inner |
| 58385 | Panel, Rear Valance |
| 58708 | Carrier Sub-assy, Jack |
| 64778A | Protector, Spare Wheel |
| 74807A | Bar Sub-assy, Rear Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
