Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

23 part groups · 2 illustrations

Illustrations

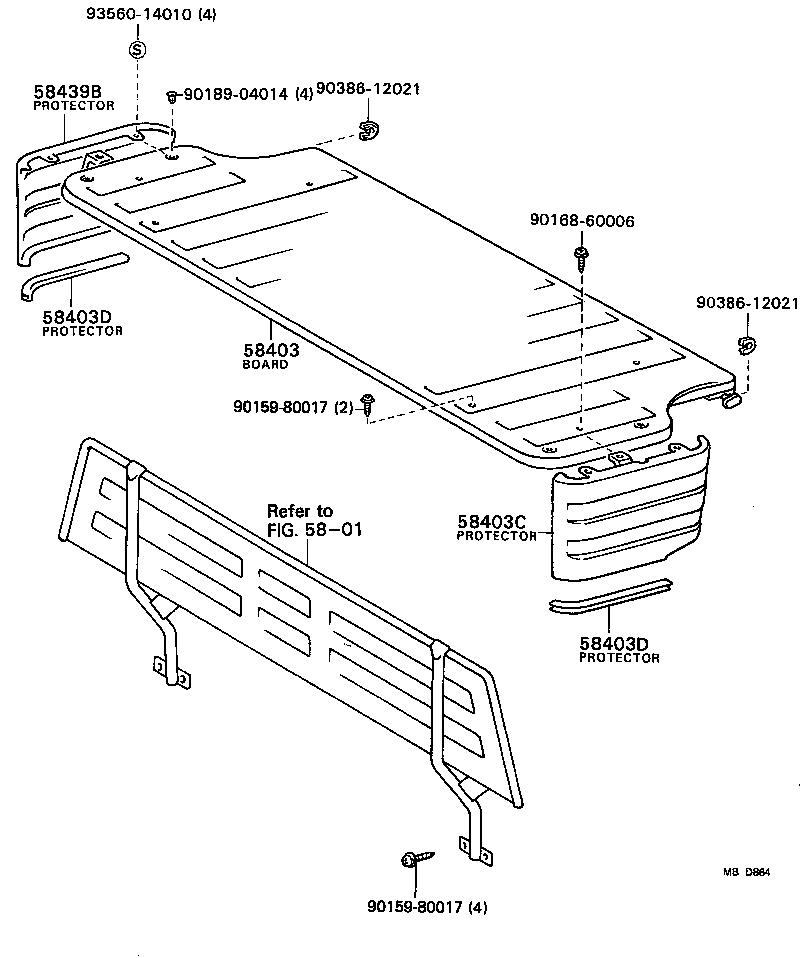

Figure MBC824E MBC824E 1981-09 → 1985-07 Figure MBD864 MBD864 1982-05 → —

Part groups

PNCDescription
58400A Striker, Luggage Hold Belt
58403 Board Sub-assy, Deck
58403C Protector, Deck Board, NO.2
58403D Protector, Deck Board, NO.3
58439B Protector, Deck Board, NO.1
64303 Bracket Sub-assy, Package Tray, RH
64304 Bracket Sub-assy, Package Tray, LH
64306 Suspender Sub-assy, Package Tray Trim
64323 Clamp, Package Tray Trim, NO.1
64327A Cover, Package Tray Trim Clamp, NO.1
64327B Cover, Package Tray Trim Clamp, NO.2
64328A Cover, Package Tray Trim Clamp
64330D Panel Assy, Package Tray Trim
64373A Stopper, Package Tray Trim
64387 Hanger, Package Tray Trim
64709 Cover Sub-assy, Lower Back Panel
64709B Cover, Service Hole, NO.1(FOR LOWER BACK PANEL COVER)
64709C Cover, Service Hole, NO.2(FOR LOWER BACK PANEL COVER)
64739 Cover, Deck Trim Side Washer
64750 Panel Assy, Deck Side Trim, RH
64759A Cover, Shock Absorber Head
64760 Panel Assy, Deck Side Trim, LH
64770D Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
