Toyota Carina FR
1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan
Discontinued model
Data version 1988-05

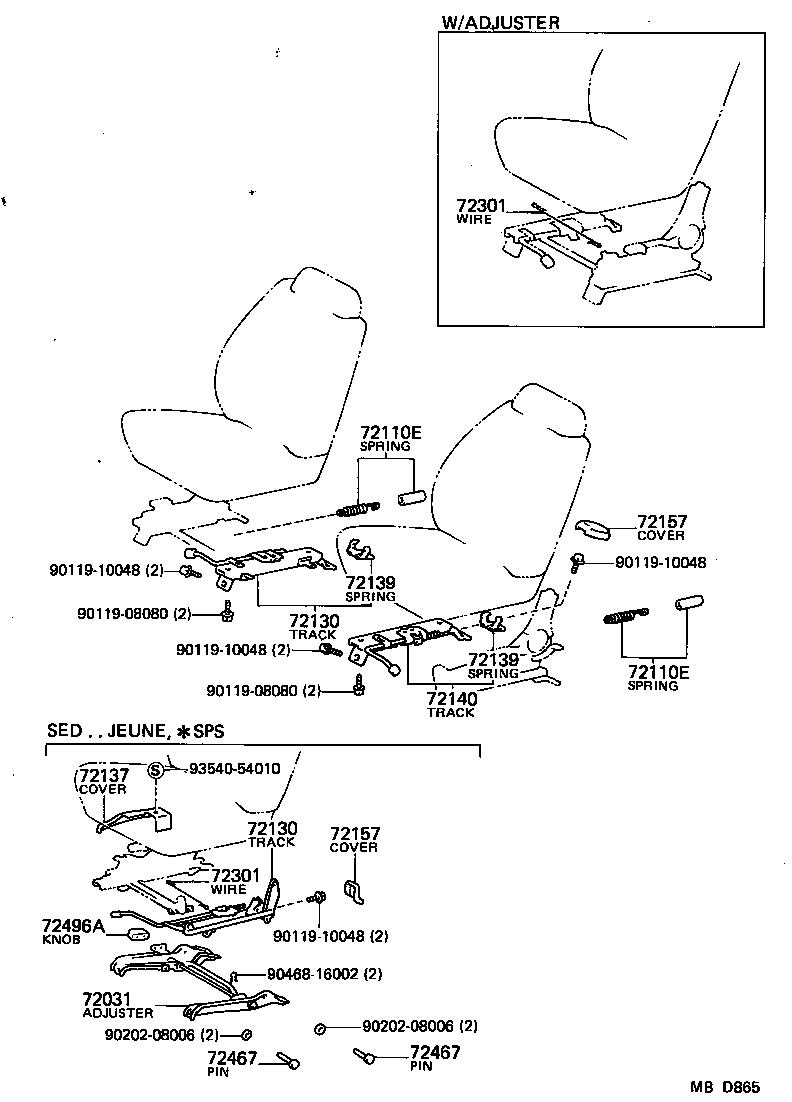

Front Seat & Seat Track
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71071W | Wire, Front Seat Cushion Cover |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71073W | Wire, Front Seatback Cover |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71563 | Pad, Front Seatback, Upper |
| 71581 | Pad, Front Seatback Silencer |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011A | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72031 | Adjuster Assy, Front Seat Vertical |
| 72137 | Cover, Seat Track, Outer RH |
| 72210 | Cable Assy, Seat Track Control |
| 72457A | Knob, Seat Adjuster |
| 72467 | Pin, Vertical Adjuster |
| 72496A | Knob, Vertical Seat Adjuster, NO.2 |
| 72524 | Handle, Reclining Adjuster Release |
| 72553 | Cover, Reclining Pedal |
| 72760 | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
