Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

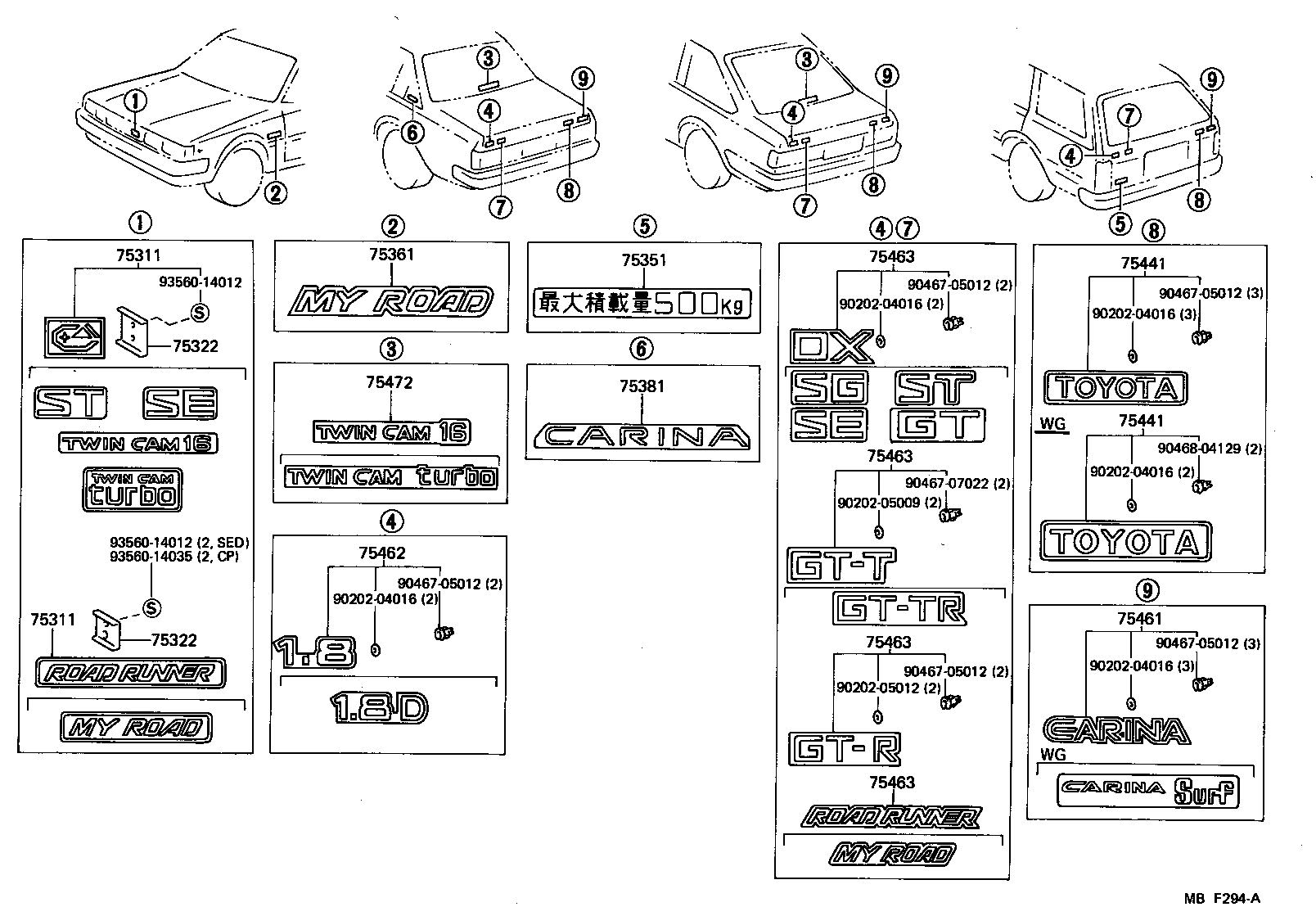

Figure MBC850C MBC850C 1981-09 → 1983-05 Figure MBF294A MBF294A 1983-05 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75322 Retainer, Radiator Grille Name Plate
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75365 Emblem, Front Fender
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75472 Plate, Rear Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
