Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

18 part groups · 3 illustrations

Illustrations

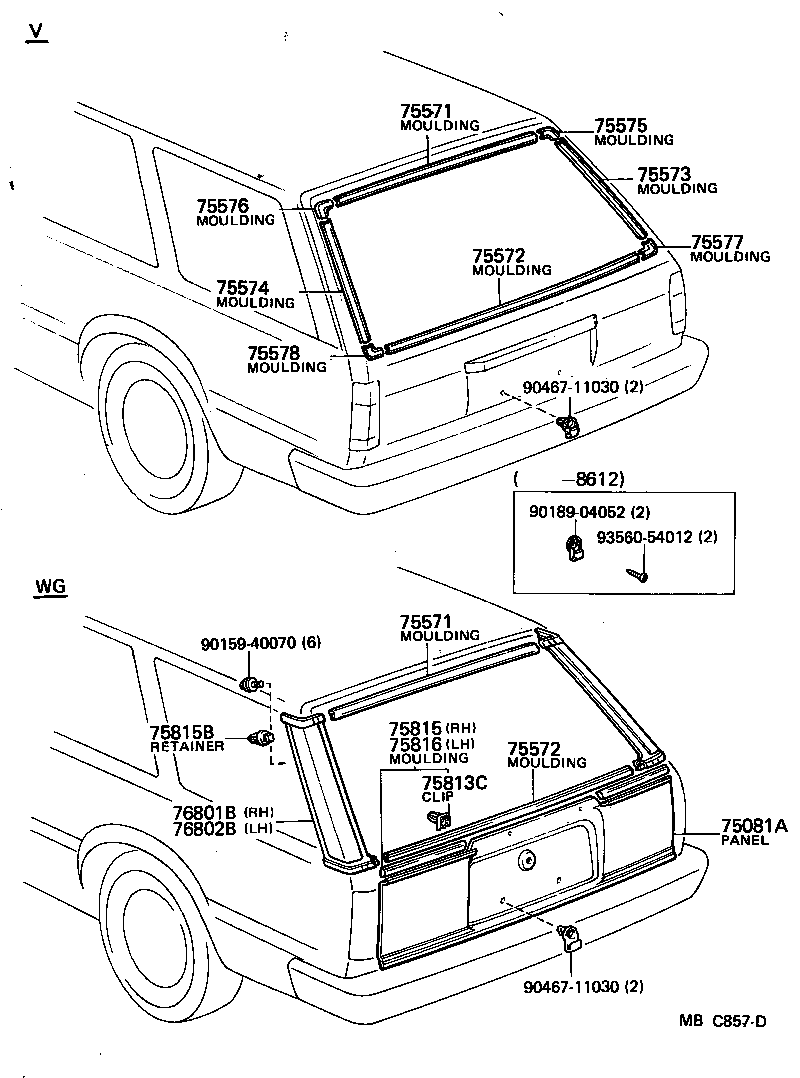

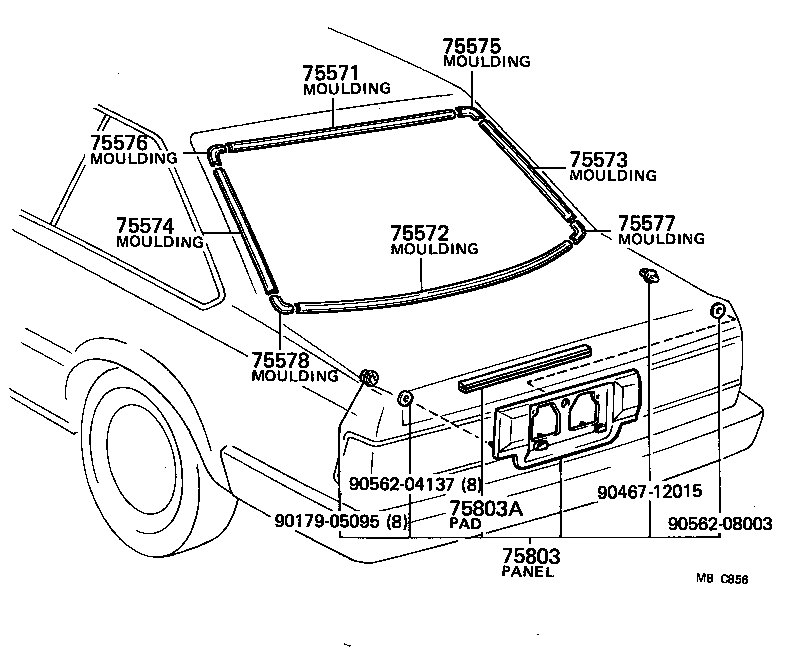

Figure MBC855A MBC855A 1981-09 → — Figure MBC856 MBC856 1981-09 → 1985-07 Figure MBC857D MBC857D 1981-09 → —

Part groups

PNCDescription
75081A Panel Sub-assy, Back Door Finish
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75803 Panel Sub-assy, Body Lower Back Finish Center
75803A Pad, Lower Back Panel Moulding, NO.1
75813C Clip(FOR BACK DOOR OUTSIDE MOULDING)
75815 Moulding, Back Door Outside, RH
75815B Retainer(FOR BACK DOOR OUTSIDE MOULDING)
75816 Moulding, Back Door Outside, LH
75821 Moulding, Luggage Compartment Door Back
76801B Garnish Sub-assy, Back Door, Outside RH
76802B Garnish Sub-assy, Back Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
