Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

14 part groups · 2 illustrations

Illustrations

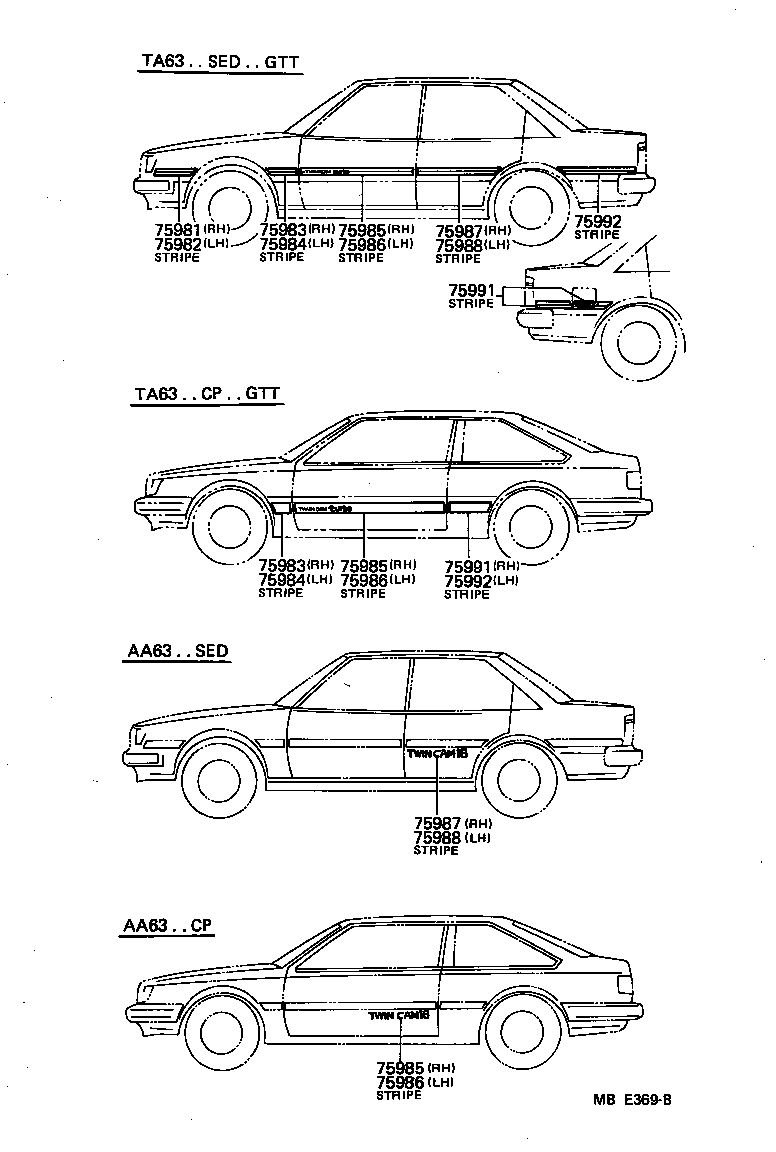

Figure MBD866A MBD866A 1982-06 → 1985-07 Figure MBE369B MBE369B 1982-10 → 1985-07

Part groups

PNCDescription
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75993 Stripe, Quarter, RH NO.2
75994 Stripe, Quarter, LH NO.2
76981 Stripe, Front Fender Mark, RH
76982 Stripe, Front Fender Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
