Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 10 illustrations

Illustrations

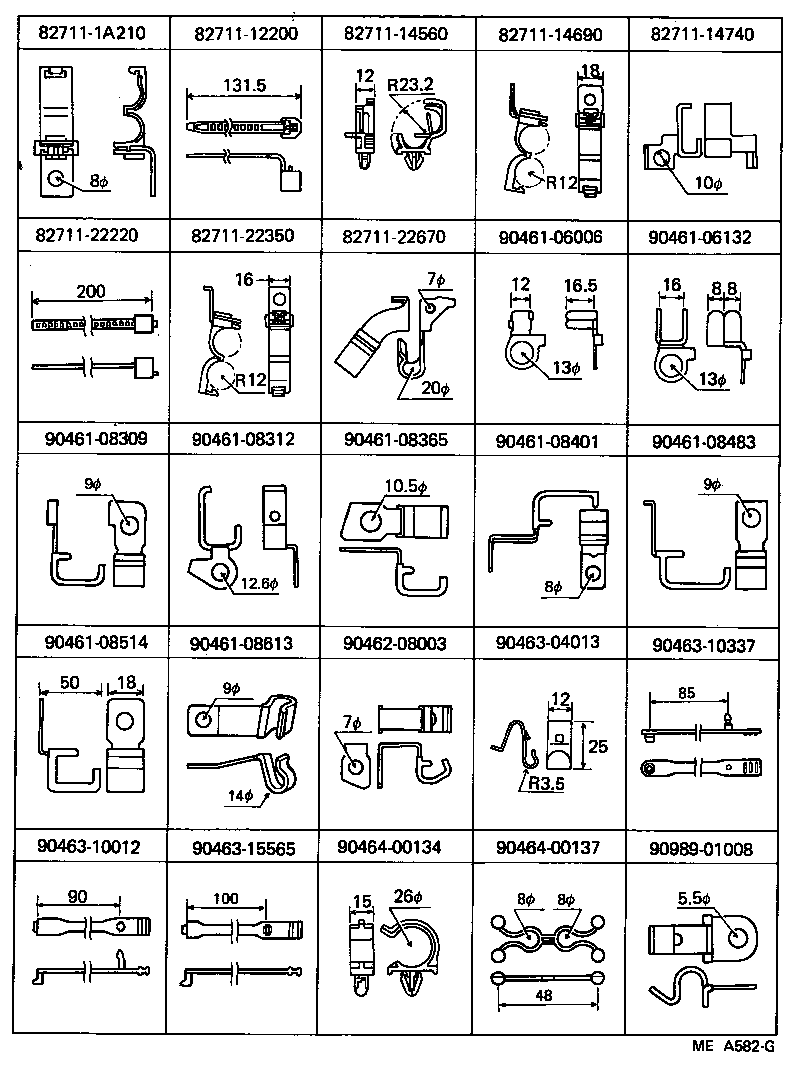

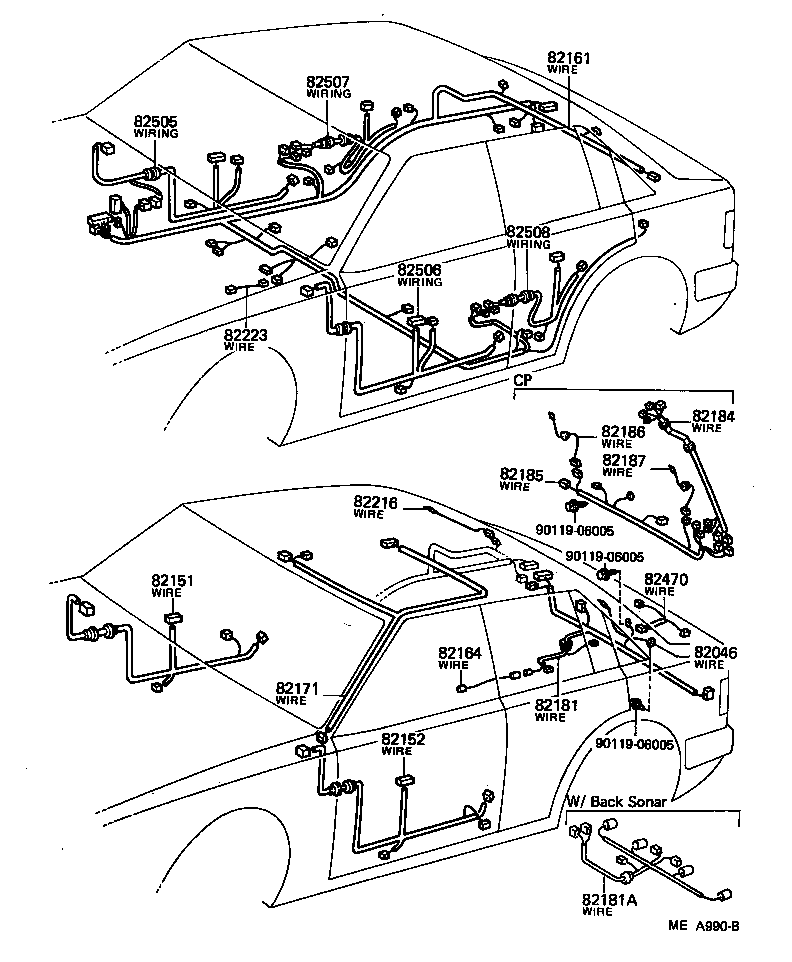

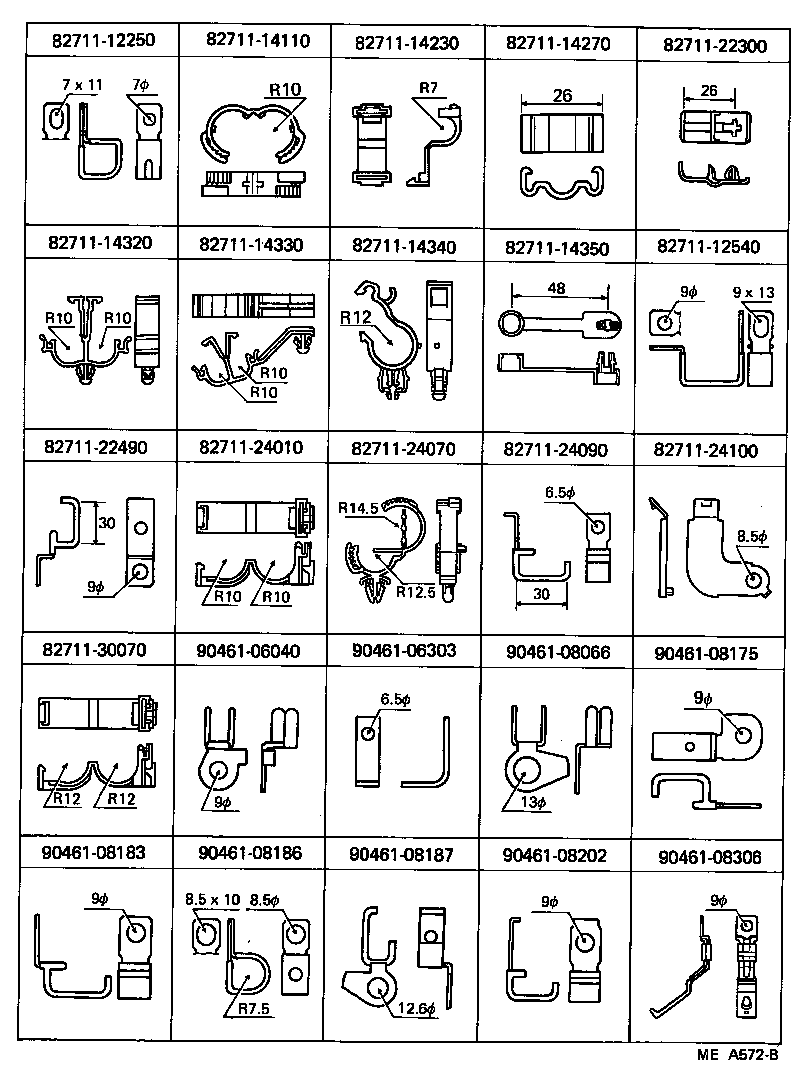

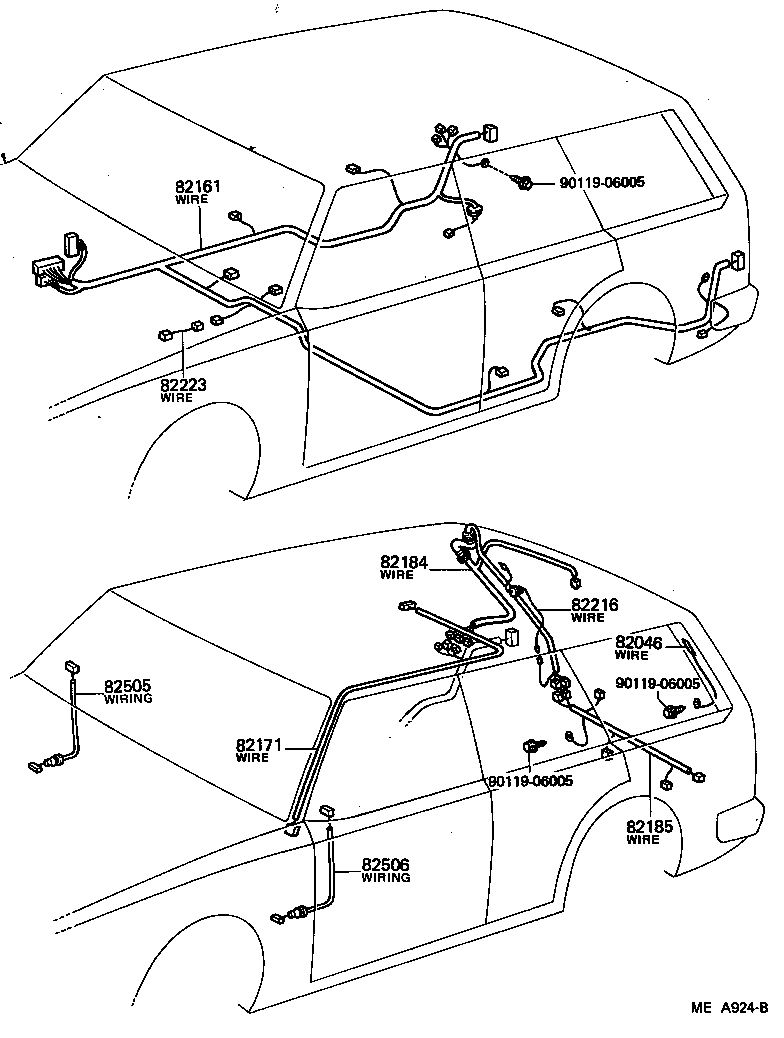

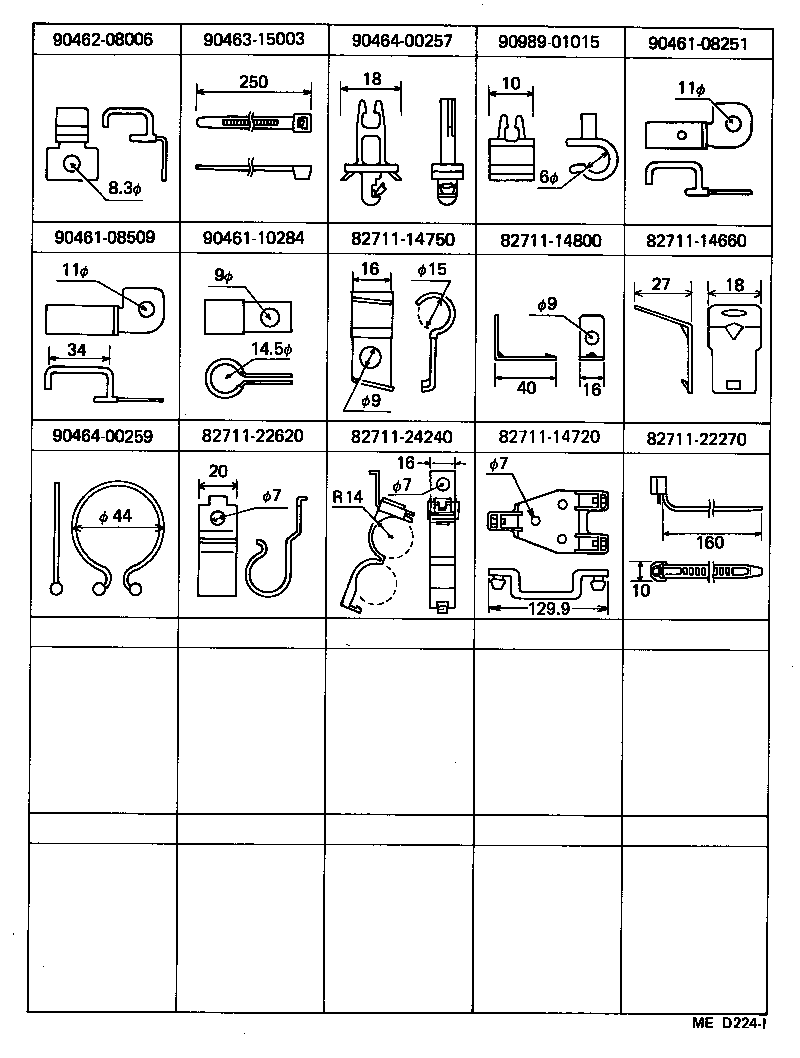

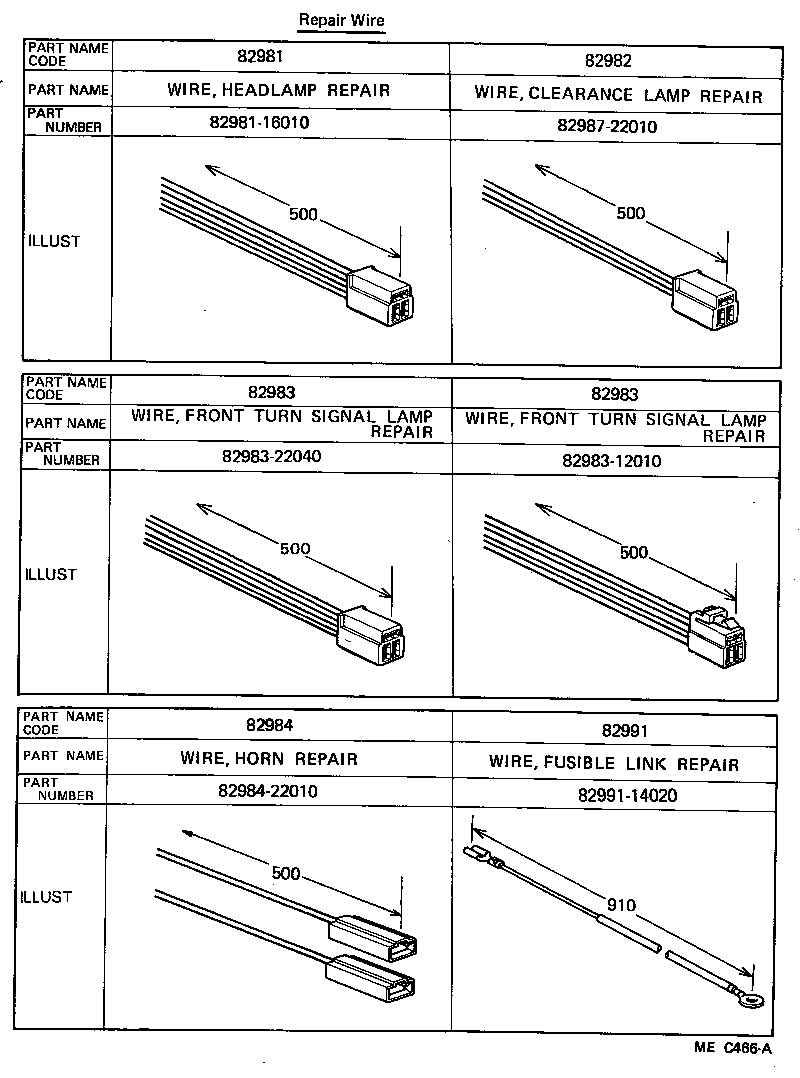

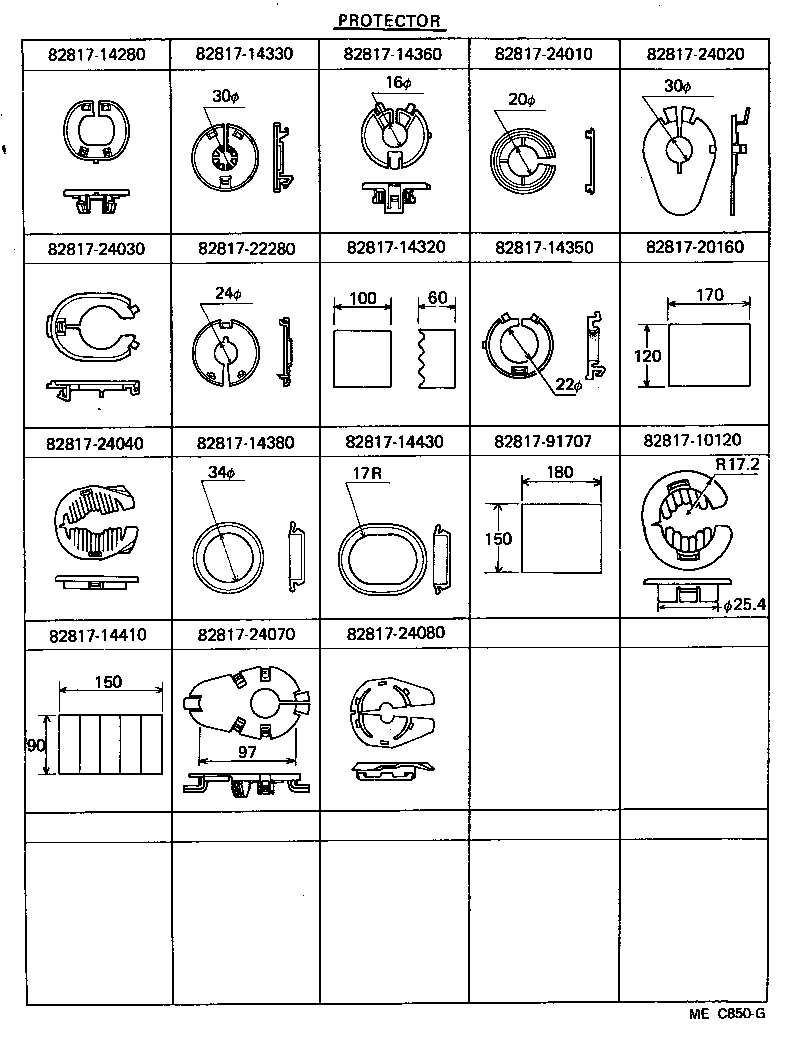

Figure MEA989H MEA989H 1981-09 → — Figure MEA990B MEA990B 1981-09 → 1987-12 Figure MEA924B MEA924B 1981-09 → 1988-04 Figure MEC466A MEC466A 1981-09 → — Figure MEE031 MEE031 1981-09 → — Figure MEE031 MEE031 1981-09 → — Figure MEA572B MEA572B 1981-09 → — Figure MEA582G MEA582G 1981-09 → — Figure MED224I MED224I 1981-09 → — Figure MEC850G MEC850G 1981-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82181A Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210B Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82223 Wire, Switch
82241C Wire, Relay
82375A Wire, Wiper Motor
82470 Wire Assy, License Lamp Feed
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
