Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 2 illustrations

Illustrations

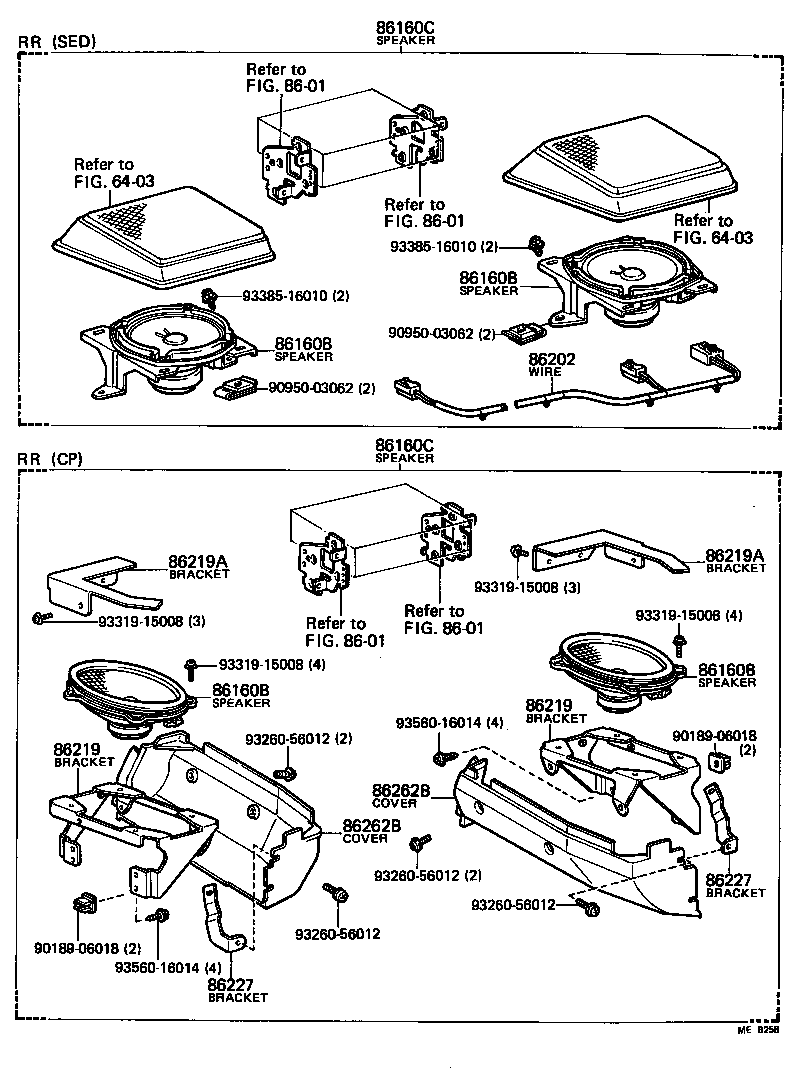

Figure MEB009B MEB009B 1981-09 → 1988-04 Figure MEB258 MEB258 1981-09 → 1985-07

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86160P Speaker Assy, Front NO.2
86202 Wire, Speaker, NO.1
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86227 Bracket, Spaker Cover
86262B Cover, Speaker, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
