Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

15 part groups · 3 illustrations

Illustrations

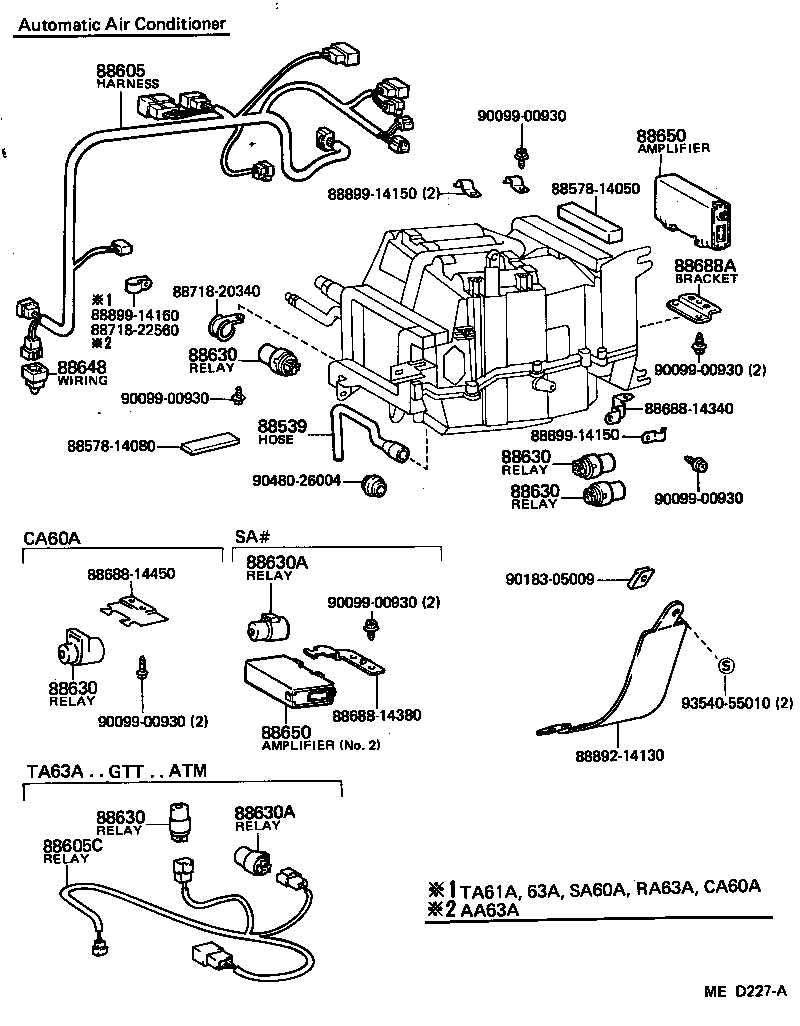

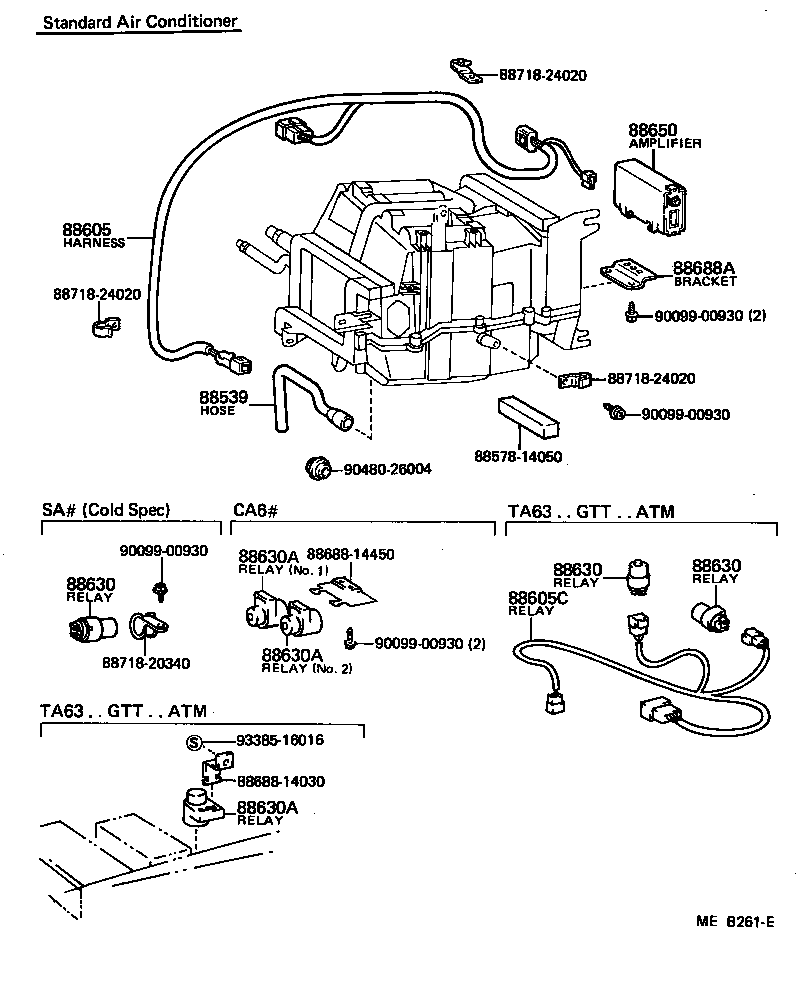

Figure MEE035 MEE035 1981-09 → 1988-04 Figure MEB261E MEB261E 1981-09 → 1988-04 Figure MED227A MED227A 1981-09 → 1988-04

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88635 Resistor, Cooler Unit Blower
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
