Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 3 illustrations

Illustrations

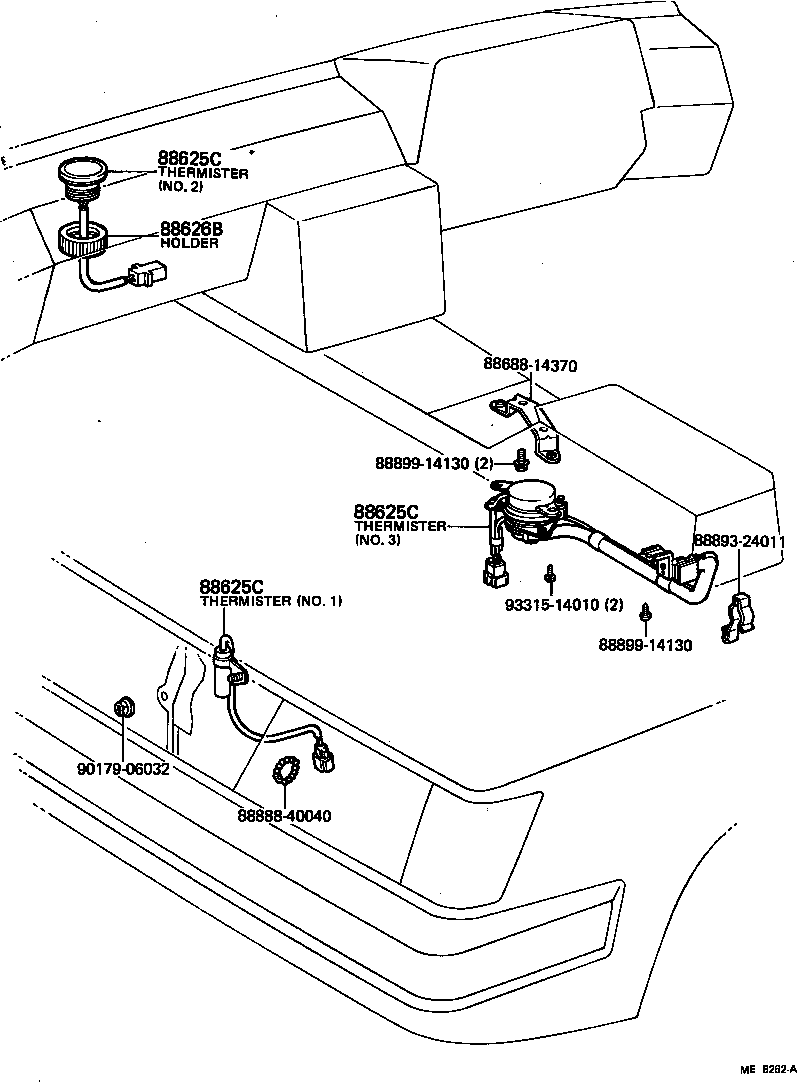

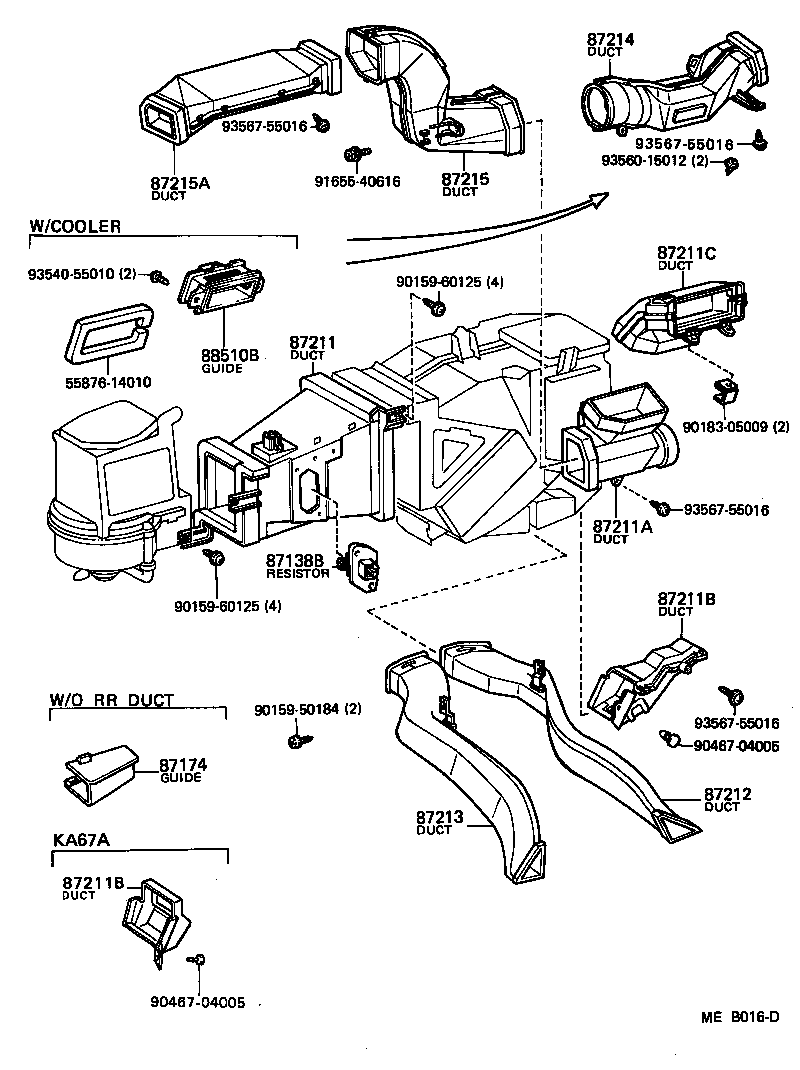

Figure MEB015D MEB015D 1981-09 → 1988-04 Figure MEB016D MEB016D 1981-09 → 1988-04 Figure MEB262A MEB262A 1981-09 → 1988-04

Part groups

PNCDescription
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55941 Bracket, Heater Control
87138B Resistor, Heater Blower
87174 Guide, Air Duct
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88510B Guide, Cooler Air
88625C Thermistor, Cooler
88626B Holder, Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
