Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

14 part groups · 6 illustrations

Illustrations

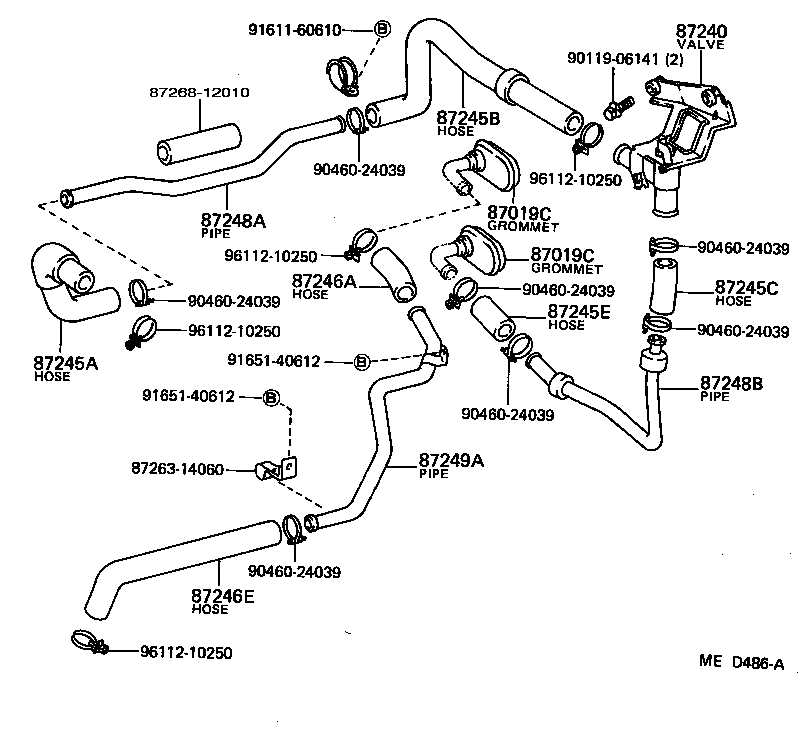

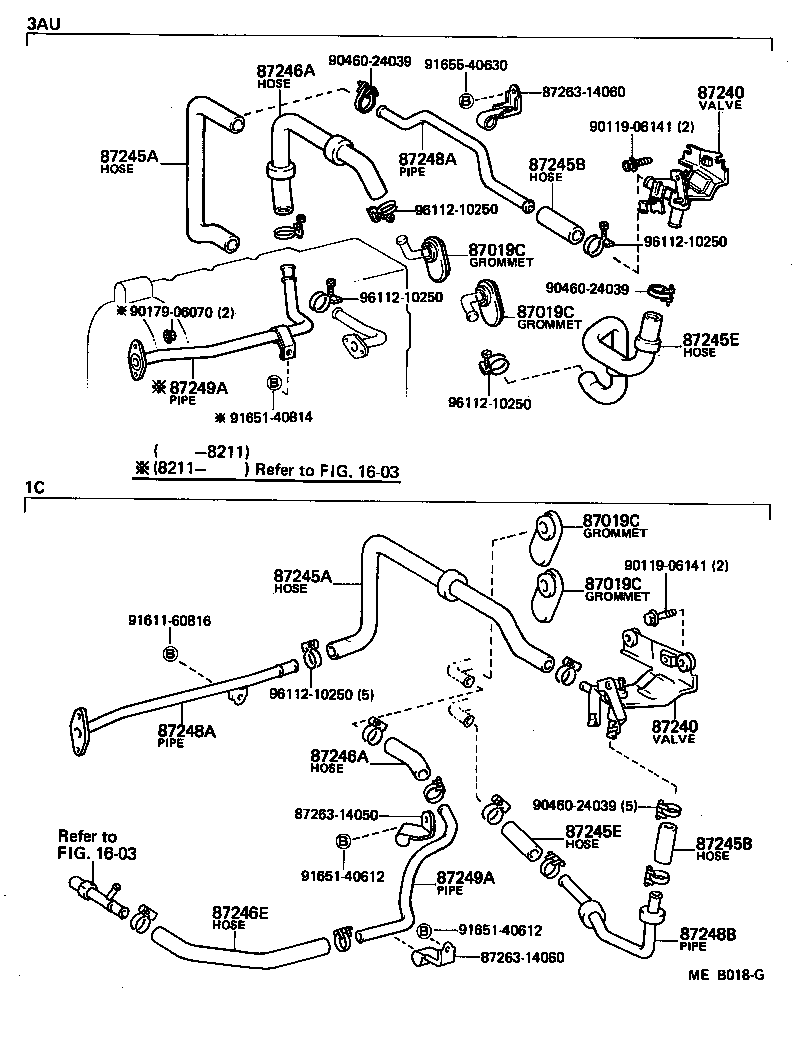

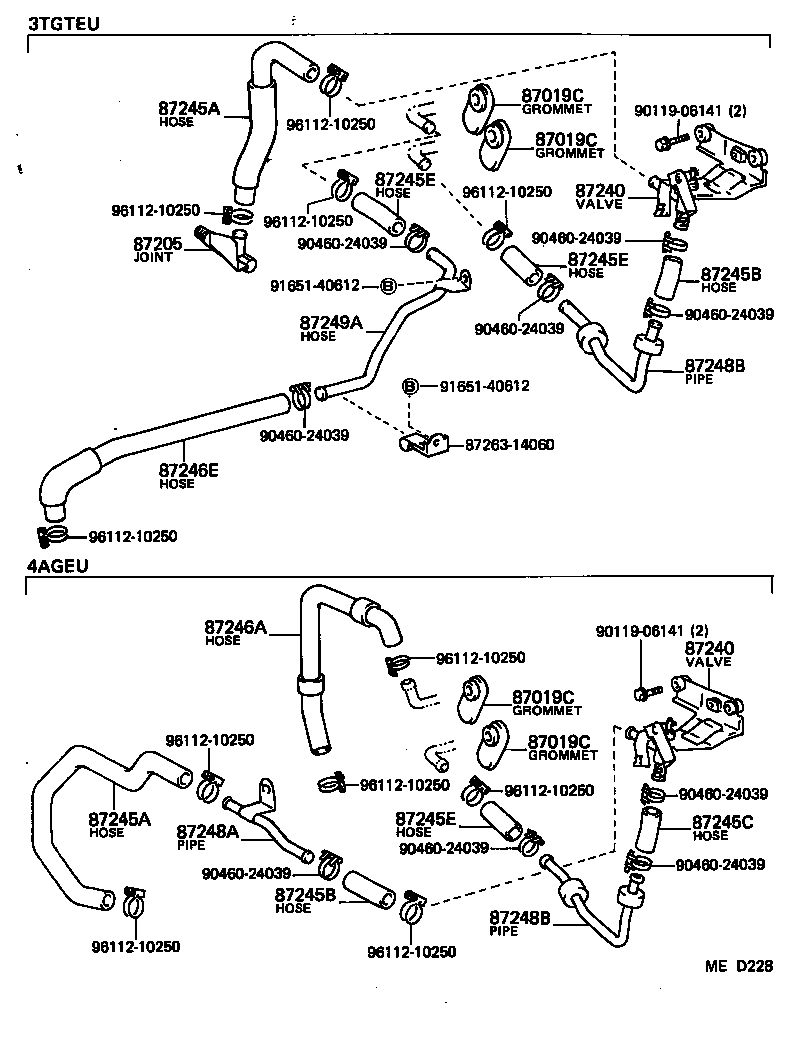

Figure MEA601I MEA601I 1981-09 → 1988-04 Figure MEB018G MEB018G 1981-09 → 1988-04 Figure MED228 MED228 1982-10 → 1985-07 Figure MED228 MED228 1983-05 → 1985-07 Figure MED486A MED486A 1983-08 → 1988-04 Figure MEB466A MEB466A 1981-09 → 1988-04

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
