Toyota Carina FR

1981-09 → 1988-04 · chassis TA6#,AA6#,SA60,RA63,KA67,CA6# · catalogue 221130 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 7 illustrations

Illustrations

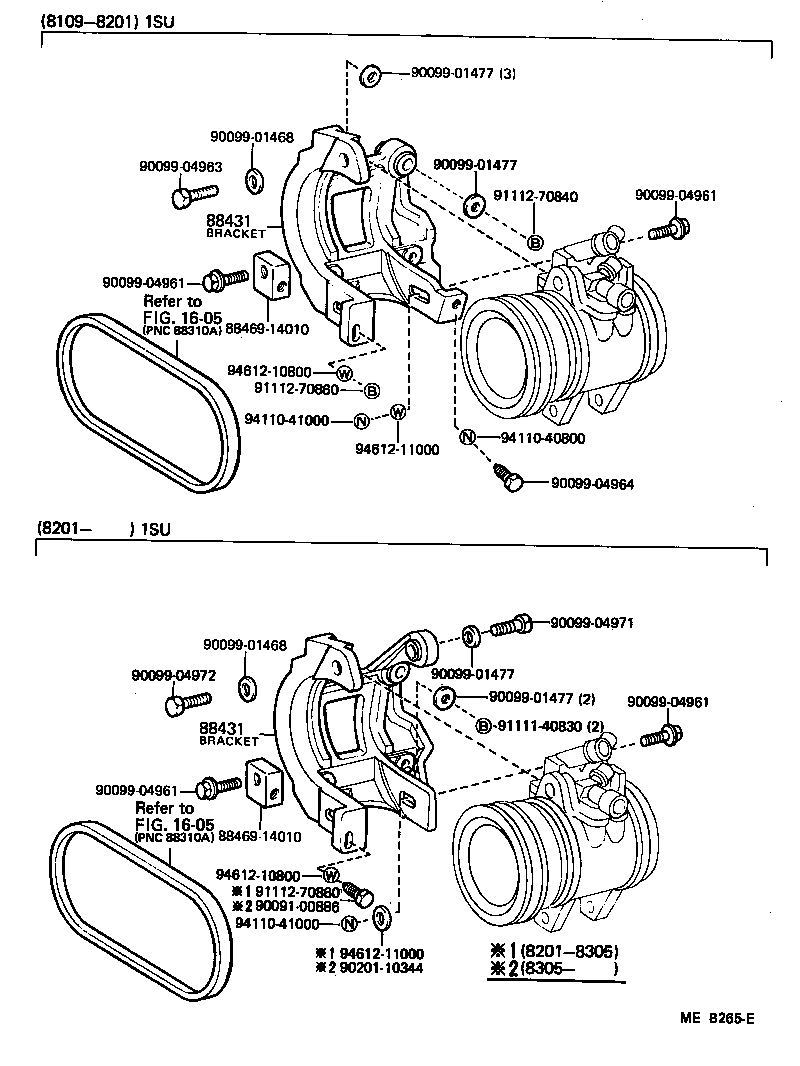

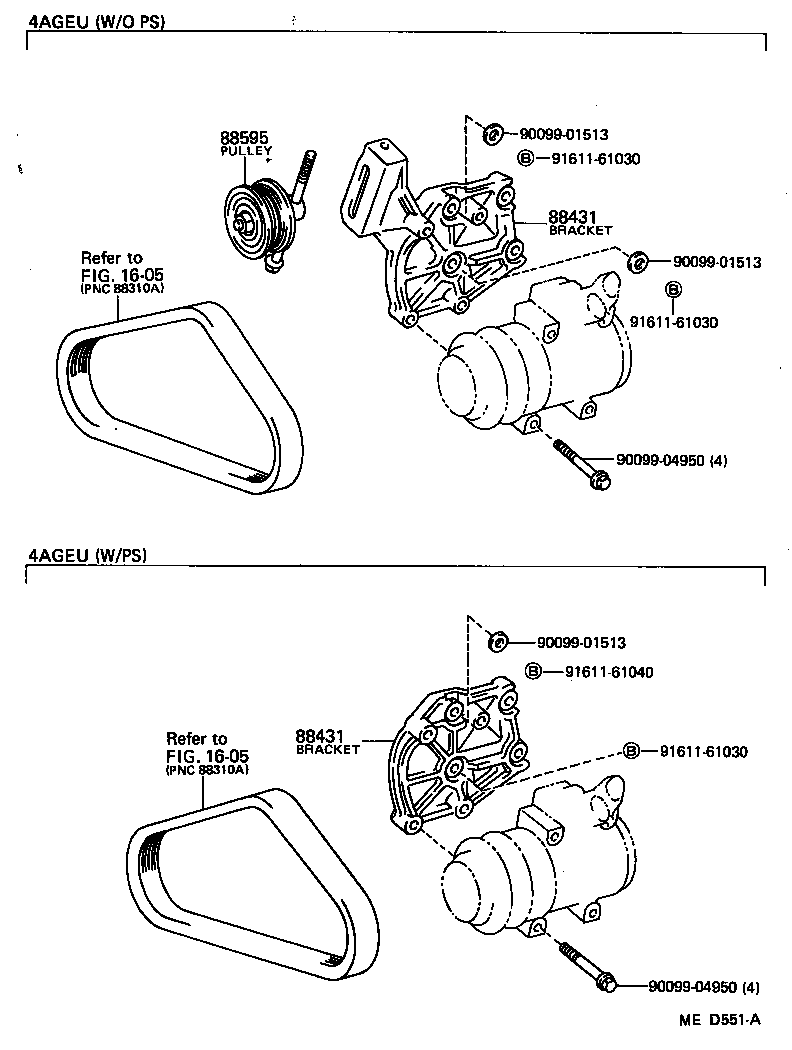

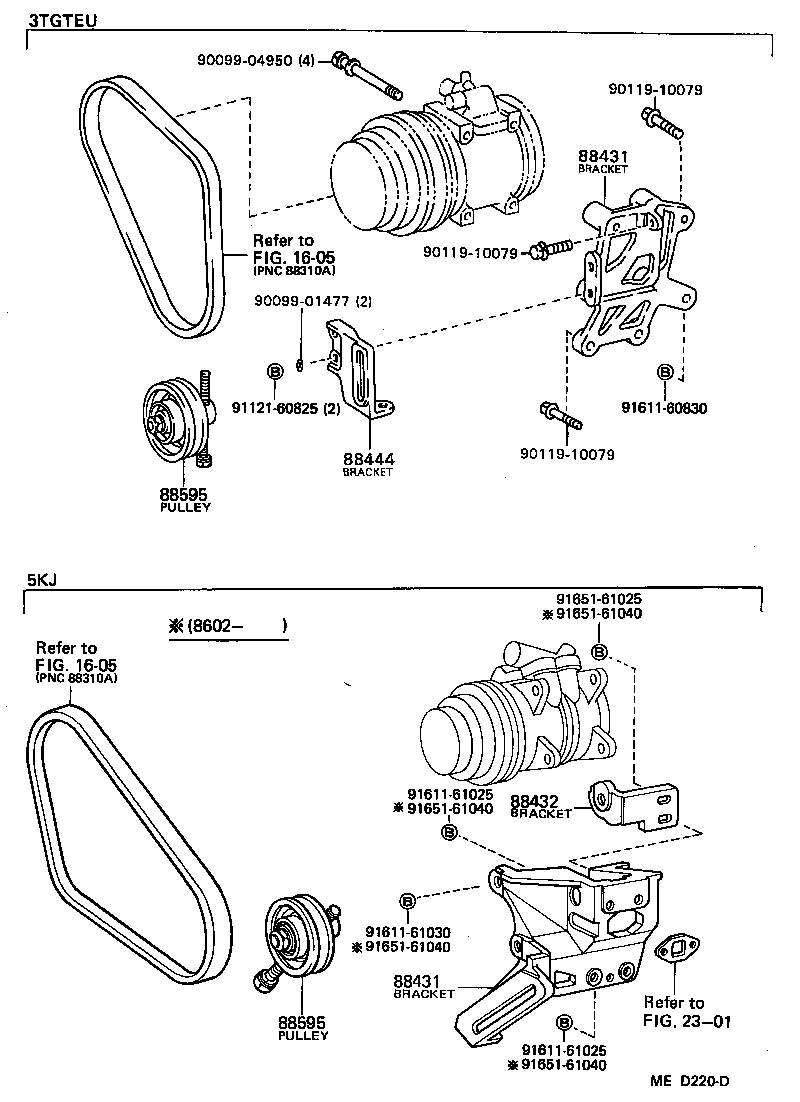

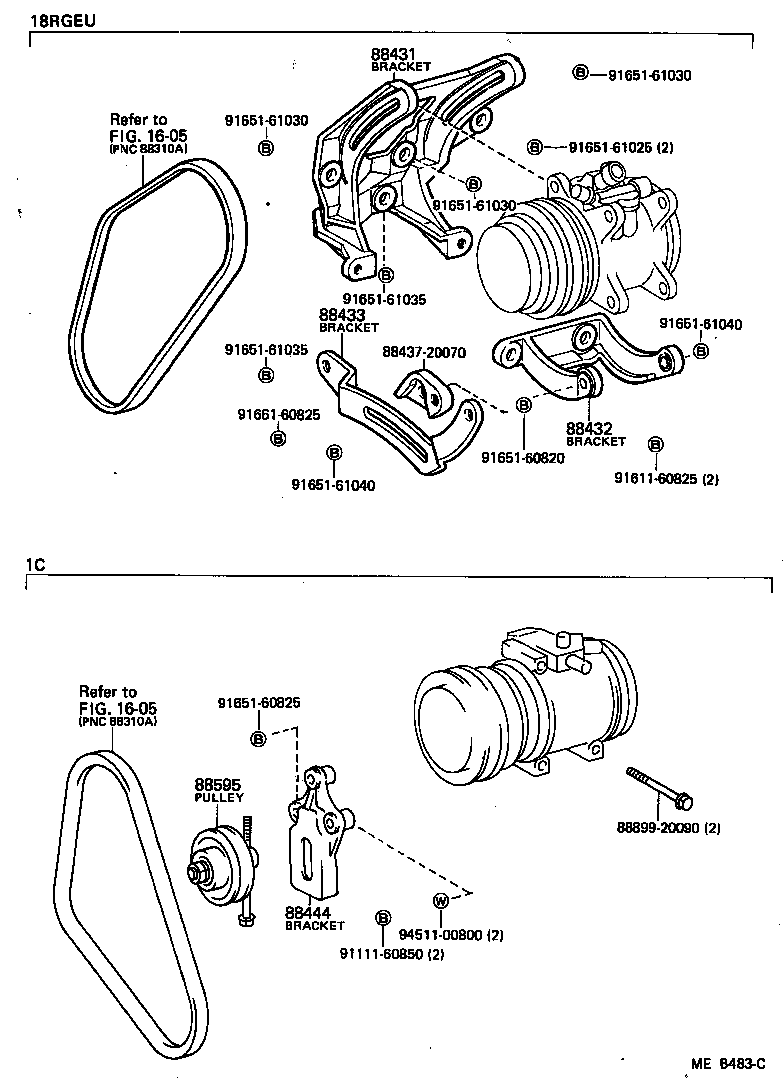

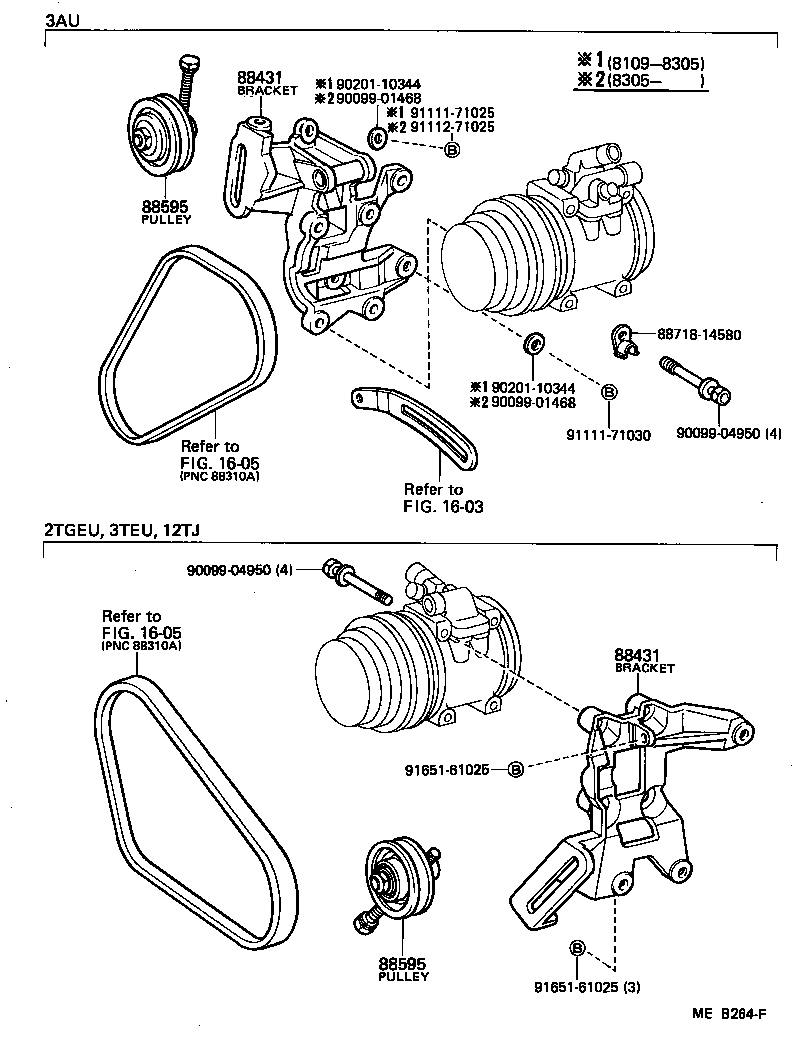

Figure MEB847 MEB847 1981-09 → 1988-04 Figure MEB264F MEB264F 1981-09 → 1987-12 Figure MED551A MED551A 1983-05 → 1985-08 Figure MEB265E MEB265E 1981-09 → 1988-04 Figure MEB483C MEB483C 1981-09 → 1988-04 Figure MED220D MED220D 1982-10 → 1985-08 Figure MED220D MED220D 1983-08 → 1988-04

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
