Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

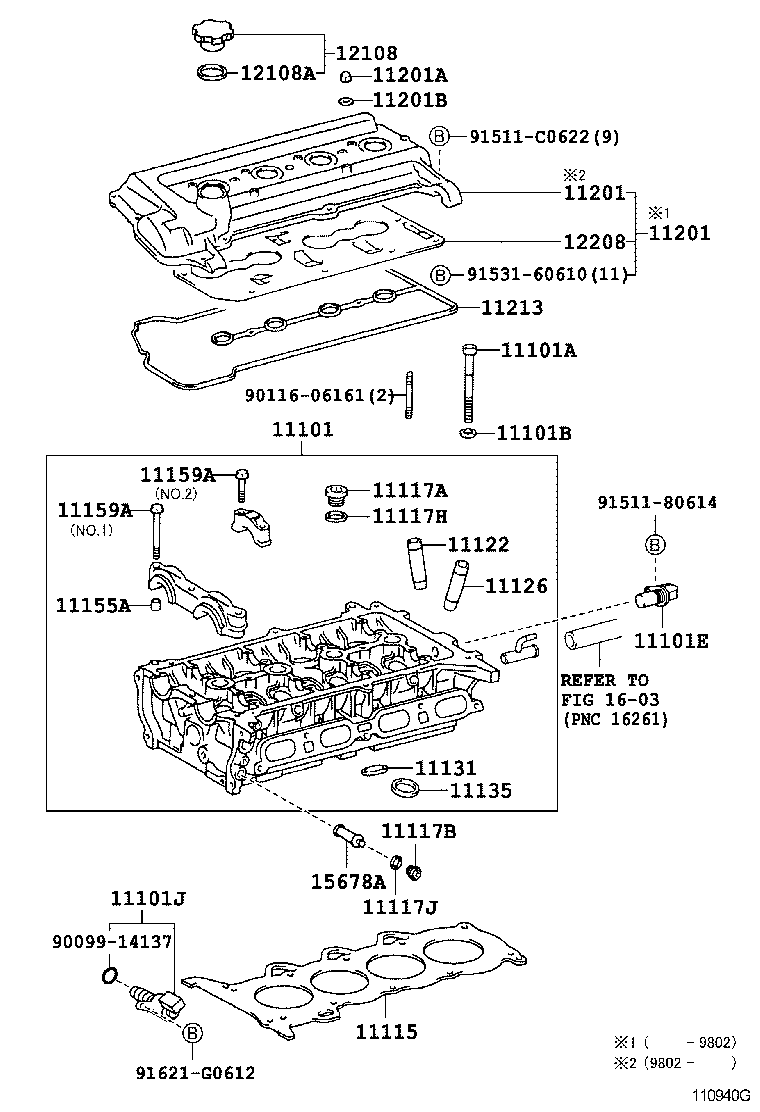

Exploded illustration 110940G 12108 — CAP SUB-ASSY, OIL FILLER (2 parts) 12108A — GASKET(FOR OIL FILLER CAP) (1 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (2 parts) 11201A — NUT, CAP(FOR CYLINDER HEAD COVER) (1 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (1 parts) 11101 — HEAD SUB-ASSY, CYLINDER (3 parts) 11117A — PLUG, W/HEAD TAPER SCREW, NO.1 (1 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (1 parts) 11101E — SENSOR, CAM POSITION (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (1 parts) 11122 — BUSH, INTAKE VALVE GUIDE (2 parts) 11117H — GASKET(FOR WATER HOLE) (1 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (2 parts) 11131 — SEAT, INTAKE VALVE (4 parts) 11135 — SEAT, EXHAUST VALVE (6 parts) 11115 — GASKET, CYLINDER HEAD (3 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 11117B — PLUG, W/HEAD TAPER SCREW, NO.2 (1 parts) 15678A — FILTER, OIL CONTROL VALVE (1 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (2 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11155A — PIN, RING W/HEAD (1 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 12208 — PLATE SUB-ASSY, VENTILATION BAFFLE (2 parts) 9011606161 — not listed in this catalogue 9151180614 — not listed in this catalogue 9009914137 — not listed in this catalogue 91621G0612 — not listed in this catalogue 91511C0622 — not listed in this catalogue 9153160610 — not listed in this catalogue 1603 — not listed in this catalogue
110940G · 26 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-21020 Head Sub-assy, Cylinder
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥120,000
11101-21031 Head Sub-assy, Cylinder
2000-05 → 2003-04 ended
1NZFXE NHW11 ¥113,000
11101-21033 Head Sub-assy, Cylinder
2003-04 → 2003-05 ended
1NZFXE NHW11 ¥113,000
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02126 Bolt(FOR CYLINDER HEAD SET)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥410
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-09024 Washer, Plate(FOR CYLINDER HEAD SET)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥110
11101E — Sensor, Cam Position
90919-05024 Sensor, Cam Position
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥4,130
11101J — Valve Assy, Camshaft Timing Oil Control
15330-21010 Valve Assy, Camshaft Timing Oil Control
1997-12 → 2001-12 ended
1NZFXE NHW1# ¥11,800
15330-21011 Valve Assy, Camshaft Timing Oil Control
2001-12 → 2003-05 ended
1NZFXE NHW11 ¥7,300
11115 — Gasket, Cylinder Head
11115-21020 Gasket, Cylinder Head
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥5,500
11115-21030 Gasket, Cylinder Head
2000-05 → 2003-02 ended
1NZFXE NHW11 ¥4,800
11115-21040 Gasket, Cylinder Head
2003-02 → 2003-05 ended
1NZFXE NHW11 ¥4,800
11117A — Plug, W/Head Taper Screw, NO.1
90341-20002 Plug, W/Head Taper Screw, NO.1
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥180
11117B — Plug, W/Head Taper Screw, NO.2
90341-14013 Plug, W/Head Taper Screw, NO.2
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥120
11117H — Gasket(FOR WATER HOLE)
90430-20004 Gasket(FOR WATER HOLE)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥200
11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG)
90430-14009 Gasket(FOR CYLINDER HEAD SCREW PLUG)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥80
11122 — Bush, Intake Valve Guide
11122-21010 note Bush, Intake Valve Guide
1997-12 → —
1NZFXE NHW1# ¥500
11123-21010 note Bush, Intake Valve Guide
1997-12 → —
1NZFXE NHW1# ¥500
11126 — Bush, Exhaust Valve Guide
11122-21010 note Bush, Exhaust Valve Guide
1997-12 → —
1NZFXE NHW1# ¥500
11123-21010 note Bush, Exhaust Valve Guide
1997-12 → —
1NZFXE NHW1# ¥500
11131 — Seat, Intake Valve
11131-21010 note Seat, Intake Valve
1997-12 → 1999-08 ended
1NZFXE NHW10 ¥920
11131-21020 note Seat, Intake Valve
1999-08 → 2003-05 ended
1NZFXE NHW1# ¥1,240
11132-21010 note Seat, Intake Valve
1997-12 → 1999-08 ended
1NZFXE NHW10 —
11132-21020 note Seat, Intake Valve
1999-08 → 2003-08 ended
1NZFXE NHW1# ¥1,240
11135 — Seat, Exhaust Valve
11135-21010 note Seat, Exhaust Valve
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥920
11135-21020 note Seat, Exhaust Valve
2000-05 → 2002-08 ended
1NZFXE NHW11 ¥860
11135-21040 note Seat, Exhaust Valve
2002-08 → 2003-05 ended
1NZFXE NHW11 ¥860
11136-21010 note Seat, Exhaust Valve
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥910
11136-21020 note Seat, Exhaust Valve
2000-05 → 2002-08 ended
1NZFXE NHW11 ¥850
11136-21040 note Seat, Exhaust Valve
2002-08 → 2003-08 ended
1NZFXE NHW11 ¥850
11155A — Pin, Ring W/Head
90253-12001 Pin, Ring W/Head
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥200
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥140
90119-08A29 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥100
11201 — Cover Sub-assy, Cylinder Head
11201-21040 Cover Sub-assy, Cylinder Head
1997-12 → 1998-02 ended
1NZFXE NHW10 ¥23,900
11201-21041 Cover Sub-assy, Cylinder Head
1998-02 → 2000-05 ended
1NZFXE NHW10 ¥23,900
11201-21060 Cover Sub-assy, Cylinder Head
2000-05 → 2001-05 ended
1NZFXE NHW11 ¥23,900
11201-21061 Cover Sub-assy, Cylinder Head
2001-05 → 2003-05 ended
1NZFXE NHW11 ¥24,000
11201A — Nut, Cap(FOR CYLINDER HEAD COVER)
90176-06028 Nut, Cap(FOR CYLINDER HEAD COVER)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥160
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-06013 Washer, Seal(FOR CYLINDER HEAD COVER)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥80
11213 — Gasket, Cylinder Head Cover
11213-21010 Gasket, Cylinder Head Cover
1997-12 → 1999-08 ended
1NZFXE NHW10 ¥1,630
11213-21011 Gasket, Cylinder Head Cover
1999-08 → 2003-05 ended
1NZFXE NHW1# ¥1,030
12108 — Cap Sub-assy, Oil Filler
12180-21010 Cap Sub-assy, Oil Filler
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥1,020
12180-55010 Cap Sub-assy, Oil Filler
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥630
12108A — Gasket(FOR OIL FILLER CAP)
90430-37140 Gasket(FOR OIL FILLER CAP)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥210
12208 — Plate Sub-assy, Ventilation Baffle
12208-21010 Plate Sub-assy, Ventilation Baffle
1997-12 → 1999-08 ended
1NZFXE NHW10 ¥3,580
12208-21020 Plate Sub-assy, Ventilation Baffle
1999-08 → 2000-05 ended
1NZFXE NHW10 ¥3,560
15678A — Filter, Oil Control Valve
15678-21010 Filter, Oil Control Valve
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥540
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
