Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

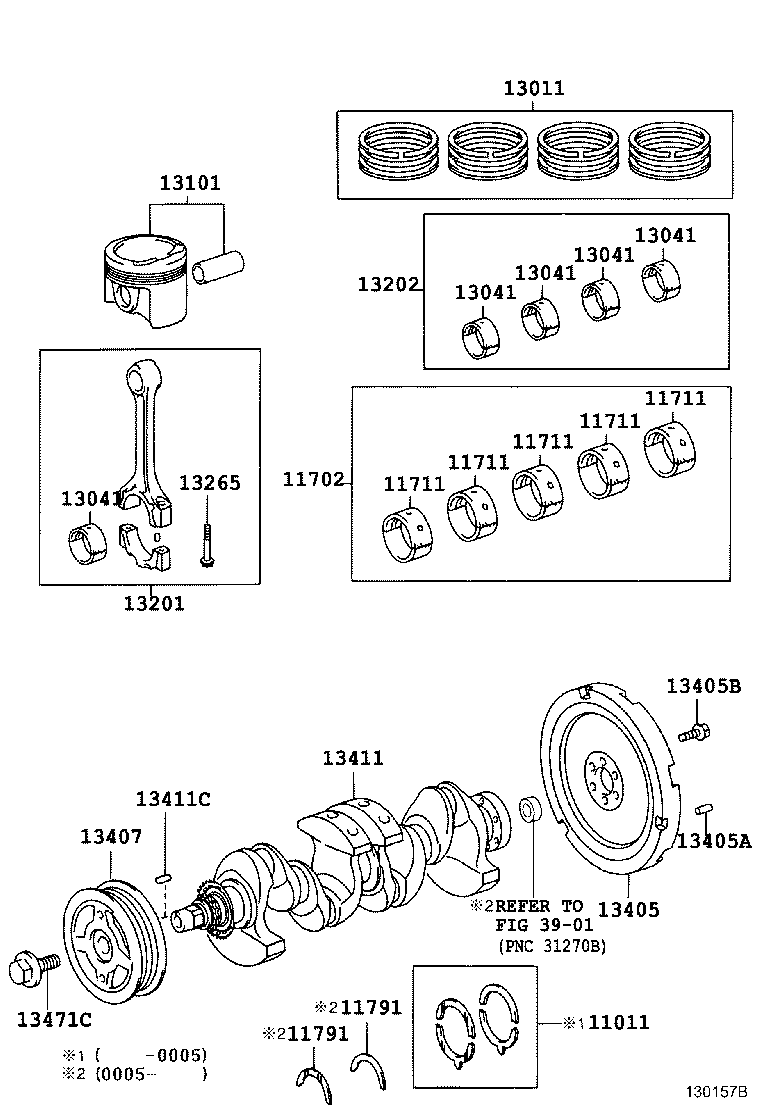

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11011 — Washer Set, Crankshaft Thrust | ||||
| 11011-11010 note |
Washer Set, Crankshaft Thrust
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥1,950 | |
| 11012-11010 note |
Washer Set, Crankshaft Thrust
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,500 | |
| 11702 — Bearing Set, Crankshaft | ||||
| 11704-21010 note |
Bearing Set, Crankshaft
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥18,600 | |
| 11711 — Bearing, Crankshaft | ||||
| 11701-21010-01 note |
Bearing, Crankshaft
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥3,100 | |
| 11701-21010-02 note |
Bearing, Crankshaft
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥3,100 | |
| 11701-21010-03 note |
Bearing, Crankshaft
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥3,100 | |
| 11701-21010-04 note |
Bearing, Crankshaft
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥3,100 | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-21010 note |
Washer, Crankshaft Thrust, Upper
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥2,780 | |
| 11792-21010 note |
Washer, Crankshaft Thrust, Upper
2000-05 → 2003-08
ended
|
1NZFXE NHW11 | ¥2,780 | |
| 11793-21010 note |
Washer, Crankshaft Thrust, Upper
2000-05 → 2003-08
ended
|
1NZFXE NHW11 | ¥2,780 | |
| 13011 — Ring Set, Piston | ||||
| 13011-21030 note |
Ring Set, Piston
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥16,800 | |
| 13011-21070 note |
Ring Set, Piston
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥16,800 | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-21010-01 note |
Bearing, Connecting Rod
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,010 | |
| 13041-21010-02 note |
Bearing, Connecting Rod
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,010 | |
| 13041-21010-03 note |
Bearing, Connecting Rod
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,010 | |
| 13041-21030-01 note |
Bearing, Connecting Rod
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥1,260 | |
| 13041-21030-02 note |
Bearing, Connecting Rod
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥1,260 | |
| 13041-21030-03 note |
Bearing, Connecting Rod
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥1,260 | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-21020 note |
Piston Sub-assy, W/Pin
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥6,300 | |
| 13101-21060 note |
Piston Sub-assy, W/Pin
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥6,300 | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-29045 |
Rod Sub-assy, Connecting
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥11,300 | |
| 13201-29095 |
Rod Sub-assy, Connecting
2000-05 → —
|
1NZFXE NHW11 | ¥11,300 | |
| 13202 — Bearing Set, Connecting Rod | ||||
| 13204-21010 note |
Bearing Set, Connecting Rod
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥10,700 | |
| 13204-21030 note |
Bearing Set, Connecting Rod
2000-05 → —
|
1NZFXE NHW11 | ¥9,900 | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-21020 |
Bolt, Connecting Rod
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥300 | |
| 13405 — Flywheel Sub-assy | ||||
| 13451-21020 |
Flywheel Sub-assy
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥23,800 | |
| 13451-21060 |
Flywheel Sub-assy
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥23,800 | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08054 note |
Pin, Straight(FOR FLYWHEEL)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥120 | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥140 | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90105-10433 |
Bolt, Flywheel Setting
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥180 | |
| 90913-01024 |
Bolt, Flywheel Setting
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥100 | |
| 13407 — Damper Sub-assy, Crankshaft | ||||
| 13407-21010 |
Damper Sub-assy, Crankshaft
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥10,700 | |
| 13407-21040 |
Damper Sub-assy, Crankshaft
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥9,400 | |
| 13411 — Crankshaft | ||||
| 13401-21010 |
Crankshaft
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥82,700 | |
| 13401-21040 |
Crankshaft
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥52,100 | |
| 13411C — Pin, Straight(FOR CRANKSHAFT) | ||||
| 90250-03046 |
Pin, Straight(FOR CRANKSHAFT)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥150 | |
| 90254-03025 |
Pin, Straight(FOR CRANKSHAFT)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥120 | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12319 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥400 | |
| 90119-12345 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
