Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

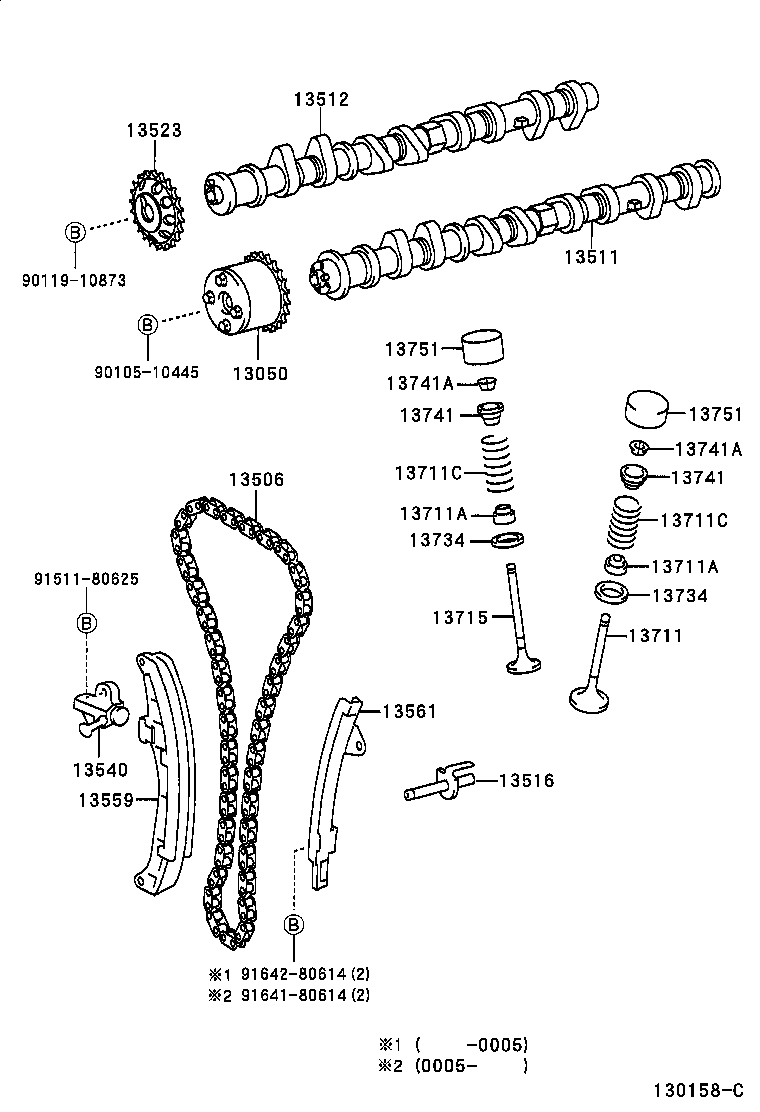

Exploded illustration 130158C 13512 — CAMSHAFT, NO.2 (2 parts) 13523 — GEAR OR SPROCKET, CAMSHAFT TIMING (1 parts) 13511 — CAMSHAFT (2 parts) 9011910873 — not listed in this catalogue 13751 — LIFTER, VALVE (70 parts) 9010510445 — not listed in this catalogue 13050 — GEAR ASSY, CAMSHAFT TIMING (2 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13751 — LIFTER, VALVE (70 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (1 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13506 — CHAIN SUB-ASSY (2 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (2 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (2 parts) 9151180625 — not listed in this catalogue 13734 — SEAT, VALVE SPRING (1 parts) 13715 — VALVE, EXHAUST (1 parts) 13711 — VALVE, INTAKE (1 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (1 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (1 parts) 13516 — JET, OIL (1 parts) 13559 — SLIPPER, CHAIN TENSIONER (1 parts) 9164280614 — not listed in this catalogue 9164180614 — not listed in this catalogue
130158C · 23 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
13050 — Gear Assy, Camshaft Timing
13050-21011 Gear Assy, Camshaft Timing
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥26,800
13050-21030 Gear Assy, Camshaft Timing
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥26,800
13506 — Chain Sub-assy
13506-21010 Chain Sub-assy
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥16,100
13506-21020 Chain Sub-assy
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥16,000
13511 — Camshaft
13501-21020 Camshaft
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥31,400
13501-21040 Camshaft
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥31,100
13512 — Camshaft, NO.2
13502-21010 Camshaft, NO.2
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥31,400
13502-21020 Camshaft, NO.2
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥28,700
13516 — Jet, Oil
13516-21010 Jet, Oil
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥590
13523 — Gear OR Sprocket, Camshaft Timing
13523-21020 Gear OR Sprocket, Camshaft Timing
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥4,000
13540 — Tensioner Assy, Chain, NO.1
13540-21010 Tensioner Assy, Chain, NO.1
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥5,200
13559 — Slipper, Chain Tensioner
13559-21010 Slipper, Chain Tensioner
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥3,940
13561 — Damper, Chain Vibration, NO.1
13561-21010 Damper, Chain Vibration, NO.1
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥2,700
13711 — Valve, Intake
13711-21010 Valve, Intake
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥1,220
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02092 note Seal OR Ring, O(FOR VALVE STEM OIL)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥380
90913-02093 note Seal OR Ring, O(FOR VALVE STEM OIL)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥280
13711C — Spring, Compression(FOR OUTER)
90501-23135 Spring, Compression(FOR OUTER)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥160
13715 — Valve, Exhaust
13715-21010 Valve, Exhaust
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥1,730
13734 — Seat, Valve Spring
13734-74010 Seat, Valve Spring
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥50
13741 — Retainer, Valve Spring
13741-22020 Retainer, Valve Spring
1997-12 → 2002-03 ended
1NZFXE NHW1# ¥370
13741-22021 Retainer, Valve Spring
2002-03 → 2003-05 ended
1NZFXE NHW11 ¥220
13741A — Lock, Valve Spring Retainer
90913-03031 Lock, Valve Spring Retainer
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥70
13751 — Lifter, Valve
13751-22040 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22050 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22060 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22070 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22080 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22090 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22100 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22110 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22120 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22130 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22140 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22150 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22160 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22170 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22180 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22190 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22200 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22210 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22220 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22230 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22240 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22250 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22260 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22270 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22280 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22290 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22300 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22310 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22320 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22330 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22340 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22350 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22360 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22370 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-22380 note Lifter, Valve
1997-12 → 1999-10 ended
1NZFXE NHW10 ¥1,360
13751-46030 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46040 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46050 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46060 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46070 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46080 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46090 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46100 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46110 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46120 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46130 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46140 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46150 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46160 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46170 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46180 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46190 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46200 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46210 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46220 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46230 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46240 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46250 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46260 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46270 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46280 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46290 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46300 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46310 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46320 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46330 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46340 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46350 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46360 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
13751-46370 note Lifter, Valve
1999-10 → 2003-05 ended
1NZFXE NHW1# ¥860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
