Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

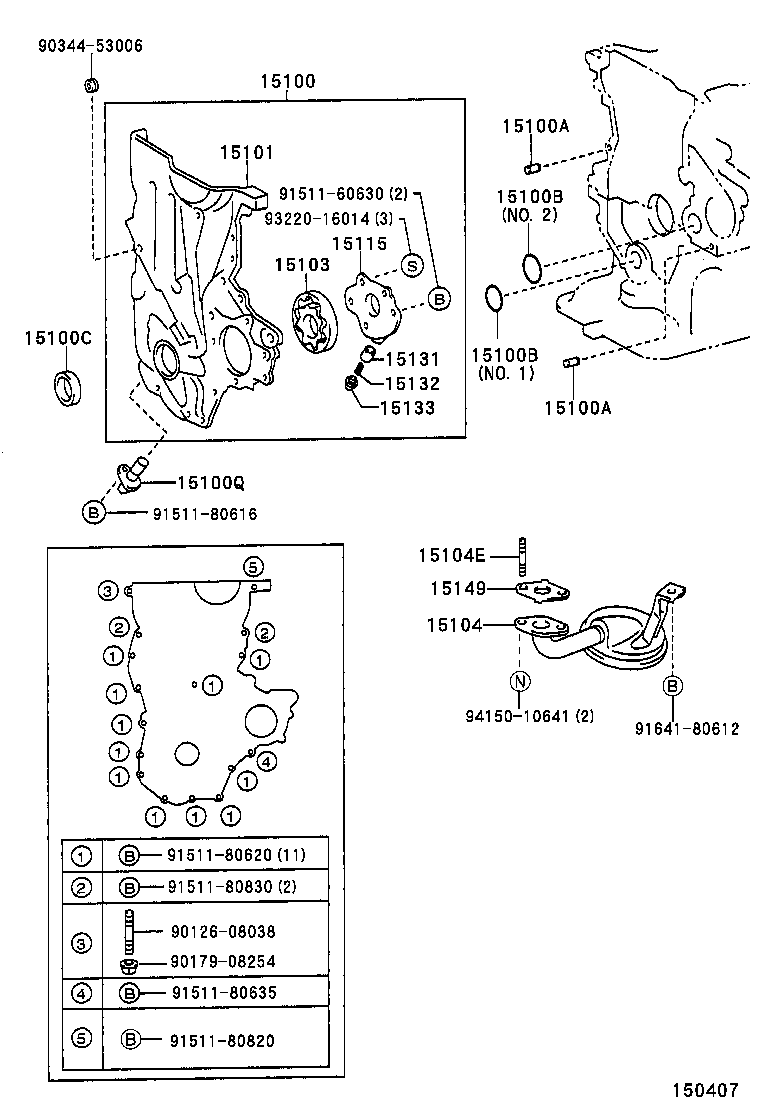

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-21021 |
Pump Assy, Oil
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥23,800 | |
| 15100-21050 |
Pump Assy, Oil
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥23,800 | |
| 15100A — Pin, Ring(FOR OIL PUMP SET) | ||||
| 90253-08003 |
Pin, Ring(FOR OIL PUMP SET)
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥80 | |
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 90301-31011 note |
Ring, O(FOR OIL PUMP)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥260 | |
| 90301-31012 note |
Ring, O(FOR OIL PUMP)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥240 | |
| 90301-42004 note |
Ring, O(FOR OIL PUMP)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥260 | |
| 90301-42006 note |
Ring, O(FOR OIL PUMP)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥240 | |
| 15100C — Seal(FOR OIL PUMP) | ||||
| 90311-25019 |
Seal(FOR OIL PUMP)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥200 | |
| 90311-25020 |
Seal(FOR OIL PUMP)
2000-05 → 2002-10
ended
|
1NZFXE NHW11 | ¥310 | |
| 90311-25021 |
Seal(FOR OIL PUMP)
2002-10 → 2003-05
ended
|
1NZFXE NHW11 | ¥310 | |
| 15100Q — Sensor, Crank Position | ||||
| 90919-05038 |
Sensor, Crank Position
1997-12 → 1999-04
ended
|
1NZFXE NHW10 | ¥8,100 | |
| 90919-05045 |
Sensor, Crank Position
1999-04 → 2003-05
ended
|
1NZFXE NHW1# | ¥4,390 | |
| 15101 — Body Sub-assy, Oil Pump | ||||
| 15111-21021 |
Body Sub-assy, Oil Pump
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥4,810 | |
| 15111-21040 |
Body Sub-assy, Oil Pump
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥4,830 | |
| 15103 — Gear Set, Oil Pump | ||||
| 15103-21020 |
Gear Set, Oil Pump
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥6,000 | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-21010 |
Strainer Sub-assy, Oil
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,530 | |
| 15104-21021 |
Strainer Sub-assy, Oil
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥3,110 | |
| 15104E — Bolt, Stud(FOR OIL STRAINER) | ||||
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥80 | |
| 15115 — Cover, Oil Pump | ||||
| 15115-21020 |
Cover, Oil Pump
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥1,610 | |
| 15115-21050 |
Cover, Oil Pump
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥2,190 | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-21020 |
Valve, Oil Pump Relief
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥340 | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-21020 |
Spring, Oil Pump Relief Valve
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥260 | |
| 15132-21050 |
Spring, Oil Pump Relief Valve
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥200 | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-21020 |
Plug, Oil Pump Relief Valve
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥360 | |
| 15149 — Gasket, Oil Strainer Flange | ||||
| 15149-21010 |
Gasket, Oil Strainer Flange
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥640 | |
| 16258-21010 |
Gasket, Oil Strainer Flange
2000-05 → 2003-02
ended
|
1NZFXE NHW11 | ¥460 | |
| 16258-21030 |
Gasket, Oil Strainer Flange
2003-02 → 2003-05
ended
|
1NZFXE NHW11 | ¥270 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
