Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

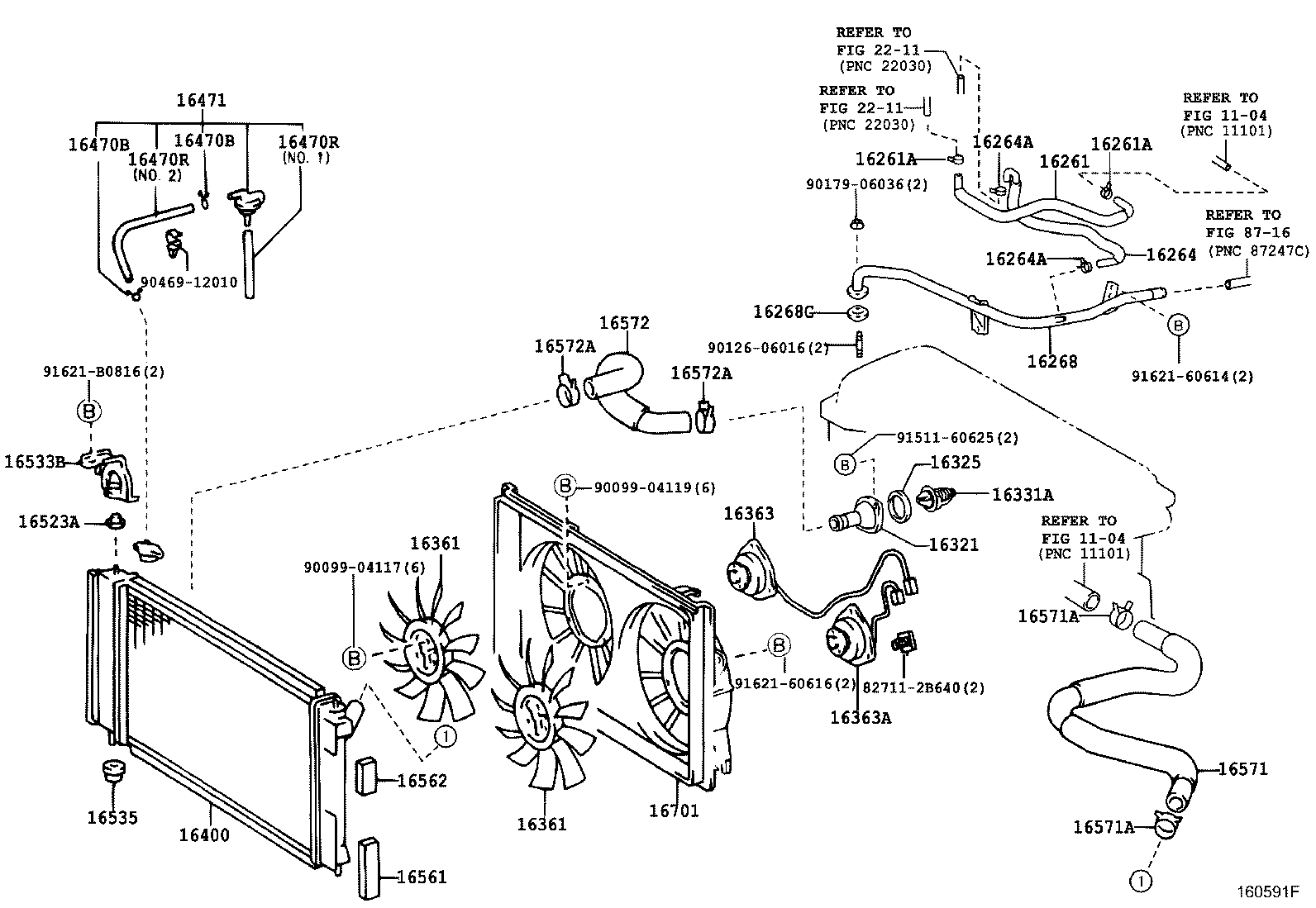

Exploded illustration 160591F 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16471 — CAP SUB-ASSY, RESERVE TANK (2 parts) 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16470R — HOSE, NO.2(FOR RADIATOR RESERVE TANK) (2 parts) 9046912010 — not listed in this catalogue 16470R — HOSE, NO.2(FOR RADIATOR RESERVE TANK) (2 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (2 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (2 parts) 91621B0816 — not listed in this catalogue 16533B — SUPPORT, RADIATOR, NO.1 (1 parts) 16523A — CUSHION, RADIATOR SUPPORT (1 parts) 16535 — SUPPORT, RADIATOR, LOWER (1 parts) 16400 — RADIATOR ASSY (1 parts) 9009904117 — not listed in this catalogue 16361 — FAN (1 parts) 16562 — SEAL, RADIATOR TO SUPPORT, NO.2 (2 parts) 16561 — SEAL, RADIATOR TO SUPPORT, NO.1 (2 parts) 16361 — FAN (1 parts) 16701 — SHROUD SUB-ASSY, FAN (2 parts) 16363A — MOTOR, COOLING FAN, NO.2 (2 parts) 9162160616 — not listed in this catalogue 827112B640 — not listed in this catalogue 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (2 parts) 16571 — HOSE, RADIATOR, INLET (1 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (2 parts) 16331A — THERMOSTAT (1 parts) 16321 — INLET, WATER (1 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (1 parts) 9151160625 — not listed in this catalogue 16363 — MOTOR, COOLING FAN (2 parts) 16261 — HOSE, WATER BY-PASS (2 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (1 parts) 16572 — HOSE, RADIATOR, OUTLET (1 parts) 9009904119 — not listed in this catalogue 16268G — GASKET(FOR WATER BY-PASS PIPE) (2 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (1 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (2 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 9017906036 — not listed in this catalogue 16268 — PIPE, WATER BY-PASS, NO.1 (2 parts) 9162160614 — not listed in this catalogue 9012606016 — not listed in this catalogue 1104 — not listed in this catalogue 1104 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 8716 — not listed in this catalogue
160591F · 33 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
16261 — Hose, Water By-pass
16261-21010 Hose, Water By-pass
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥1,620
16261-21030 Hose, Water By-pass
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥1,610
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥110
16264 — Hose, Water By-pass, NO.2
16264-21010 Hose, Water By-pass, NO.2
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥1,620
16264-21030 Hose, Water By-pass, NO.2
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥1,610
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90467-13054 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥110
16268 — Pipe, Water By-pass, NO.1
16268-21010 Pipe, Water By-pass, NO.1
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥4,390
16268-21030 Pipe, Water By-pass, NO.1
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥4,390
16268G — Gasket(FOR WATER BY-PASS PIPE)
16258-21020 Gasket(FOR WATER BY-PASS PIPE)
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥450
16258-22010 Gasket(FOR WATER BY-PASS PIPE)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥360
16321 — Inlet, Water
16321-21010 Inlet, Water
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥1,470
16325 — Gasket, Water Inlet Housing, NO.1
16325-62010 Gasket, Water Inlet Housing, NO.1
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥350
16331A — Thermostat
90916-03093 note Thermostat
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥1,600
16361 — Fan
16361-21020 Fan
1997-12 → —
1NZFXE NHW1# ¥9,100
16363 — Motor, Cooling Fan
16363-21010 Motor, Cooling Fan
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥28,300
16363-46060 Motor, Cooling Fan
2000-05 → —
1NZFXE NHW11 ¥28,000
16363A — Motor, Cooling Fan, NO.2
16363-21010 Motor, Cooling Fan, NO.2
2000-05 → —
1NZFXE NHW11 ¥28,300
16363-46060 Motor, Cooling Fan, NO.2
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥28,000
16400 — Radiator Assy
16400-21050 Radiator Assy
1997-12 → —
1NZFXE NHW1# ¥30,100
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1997-12 → —
1NZFXE NHW1# ¥100
16470R — Hose, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078 note Hose, NO.2(FOR RADIATOR RESERVE TANK)
2000-05 → —
1NZFXE NHW11 ¥580
90445-12078 note Hose, NO.2(FOR RADIATOR RESERVE TANK)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥580
16471 — Cap Sub-assy, Reserve Tank
16405-21010 Cap Sub-assy, Reserve Tank
1997-12 → 2000-05 ended
1NZFXE NHW10 —
16405-21020 Cap Sub-assy, Reserve Tank
2000-05 → —
1NZFXE NHW11 —
16523A — Cushion, Radiator Support
16523-21010 Cushion, Radiator Support
1997-12 → —
1NZFXE NHW1# ¥390
16533B — Support, Radiator, NO.1
16533-21010 Support, Radiator, NO.1
1997-12 → —
1NZFXE NHW1# ¥2,190
16535 — Support, Radiator, Lower
90480-40016 Support, Radiator, Lower
1997-12 → —
1NZFXE NHW1# ¥480
16561 — Seal, Radiator TO Support, NO.1
16561-21010 Seal, Radiator TO Support, NO.1
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥510
16561-21020 Seal, Radiator TO Support, NO.1
2000-05 → —
1NZFXE NHW11 ¥520
16562 — Seal, Radiator TO Support, NO.2
16562-21010 Seal, Radiator TO Support, NO.2
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥720
16562-21020 Seal, Radiator TO Support, NO.2
2000-05 → —
1NZFXE NHW11 ¥720
16571 — Hose, Radiator, Inlet
16571-21010 Hose, Radiator, Inlet
1997-12 → —
1NZFXE NHW1# ¥3,040
16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET)
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2000-05 → —
1NZFXE NHW11 ¥240
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR INLET)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥390
16572 — Hose, Radiator, Outlet
16572-21010 Hose, Radiator, Outlet
1997-12 → —
1NZFXE NHW1# ¥1,830
16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2000-05 → —
1NZFXE NHW11 ¥240
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥390
16701 — Shroud Sub-assy, Fan
16711-21020 Shroud Sub-assy, Fan
1997-12 → 1999-12 ended
1NZFXE NHW10 ¥7,000
16711-21021 Shroud Sub-assy, Fan
1999-12 → —
1NZFXE NHW1# ¥7,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
