Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

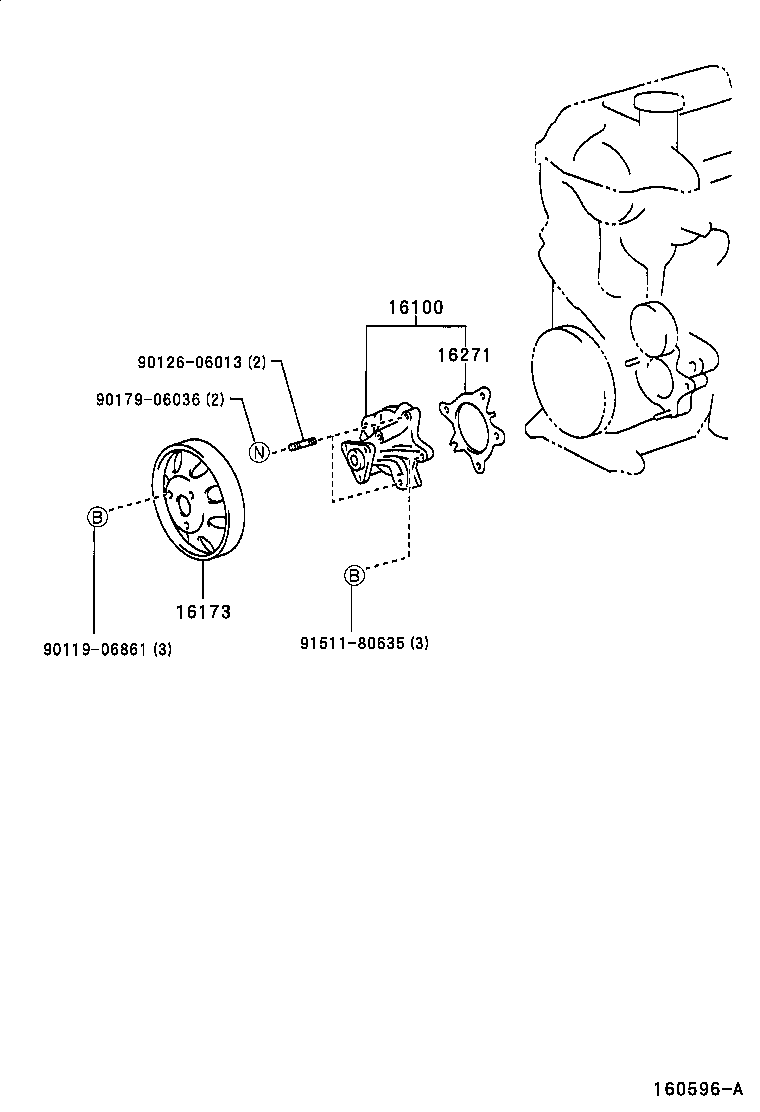

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-29105 |
Pump Assy, Engine Water
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥8,100 | |
| 16100-29155 |
Pump Assy, Engine Water
2000-05 → —
|
1NZFXE NHW11 | ¥10,700 | |
| 16173 — Pulley, Water Pump | ||||
| 16173-21010 |
Pulley, Water Pump
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,550 | |
| 16173-21020 |
Pulley, Water Pump
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥2,970 | |
| 16271 — Gasket, Water Pump | ||||
| 16271-21010 |
Gasket, Water Pump
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥640 | |
| 16271-21020 |
Gasket, Water Pump
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥620 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
