Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

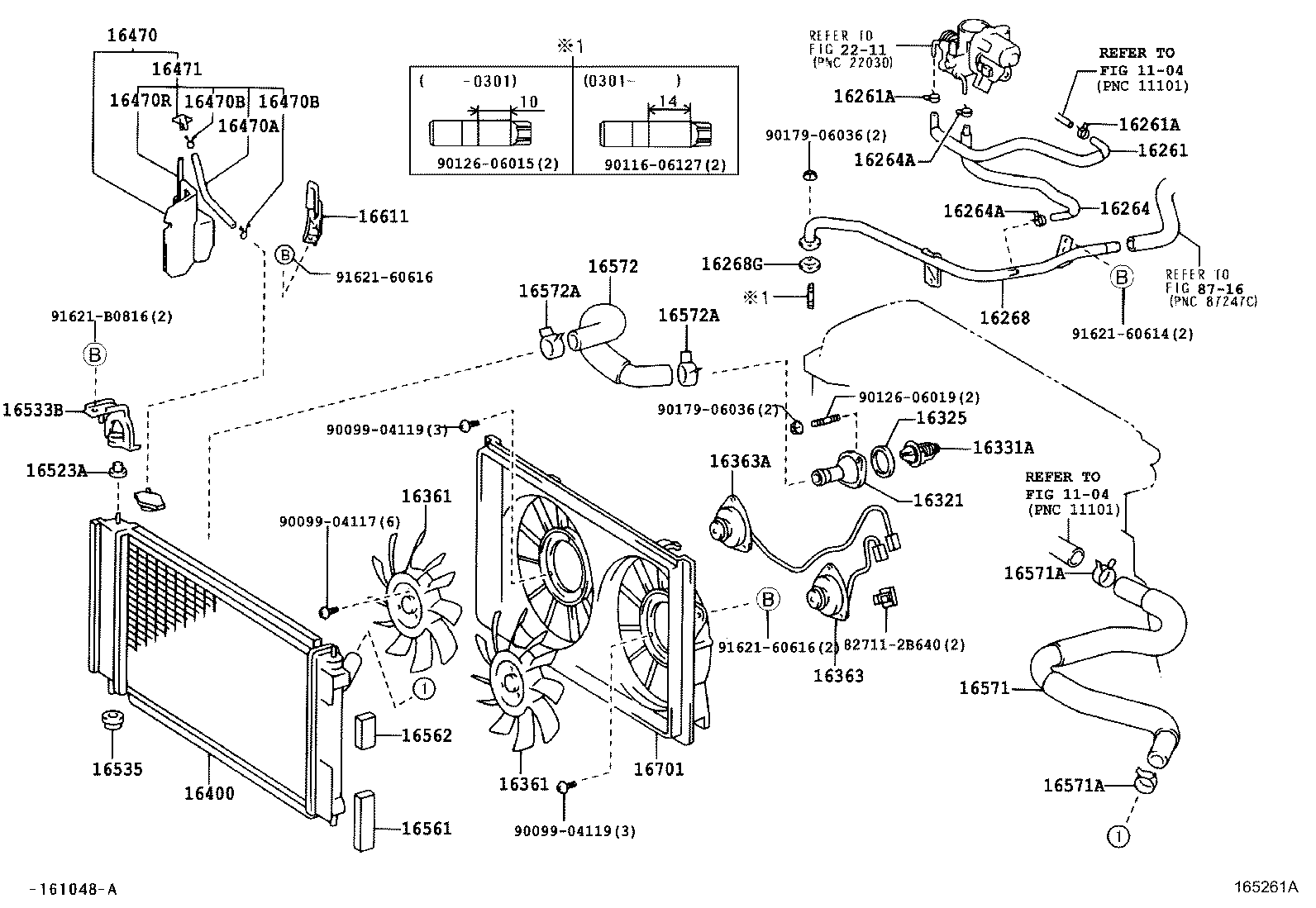

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-21010 |
Hose, Water By-pass
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥1,620 | |
| 16261-21030 |
Hose, Water By-pass
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥1,610 | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥110 | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-21010 |
Hose, Water By-pass, NO.2
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥1,620 | |
| 16264-21030 |
Hose, Water By-pass, NO.2
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥1,610 | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥110 | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-21010 |
Pipe, Water By-pass, NO.1
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥4,390 | |
| 16268-21030 |
Pipe, Water By-pass, NO.1
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥4,390 | |
| 16268G — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
Gasket(FOR WATER BY-PASS PIPE)
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥450 | |
| 16258-22010 |
Gasket(FOR WATER BY-PASS PIPE)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥360 | |
| 16321 — Inlet, Water | ||||
| 16321-21010 |
Inlet, Water
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥1,470 | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥350 | |
| 16331A — Thermostat | ||||
| 90916-03093 note |
Thermostat
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥1,600 | |
| 16361 — Fan | ||||
| 16361-21020 |
Fan
1997-12 → —
|
1NZFXE NHW1# | ¥9,100 | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-21010 |
Motor, Cooling Fan
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥28,300 | |
| 16363-46060 |
Motor, Cooling Fan
2000-05 → —
|
1NZFXE NHW11 | ¥28,000 | |
| 16363A — Motor, Cooling Fan, NO.2 | ||||
| 16363-21010 |
Motor, Cooling Fan, NO.2
2000-05 → —
|
1NZFXE NHW11 | ¥28,300 | |
| 16363-46060 |
Motor, Cooling Fan, NO.2
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥28,000 | |
| 16400 — Radiator Assy | ||||
| 16400-21050 |
Radiator Assy
1997-12 → —
|
1NZFXE NHW1# | ¥30,100 | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-21010 |
Tank Assy, Radiator Reserve
2000-05 → —
|
1NZFXE NHW11 | ¥2,860 | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2000-05 → —
|
1NZFXE NHW11 | ¥580 | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1997-12 → —
|
1NZFXE NHW1# | ¥100 | |
| 16470R — Hose, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 note |
Hose, NO.2(FOR RADIATOR RESERVE TANK)
2000-05 → —
|
1NZFXE NHW11 | ¥580 | |
| 90445-12078 note |
Hose, NO.2(FOR RADIATOR RESERVE TANK)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥580 | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-21010 |
Cap Sub-assy, Reserve Tank
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | — | |
| 16405-21020 |
Cap Sub-assy, Reserve Tank
2000-05 → —
|
1NZFXE NHW11 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-21010 |
Cushion, Radiator Support
1997-12 → —
|
1NZFXE NHW1# | ¥390 | |
| 16533B — Support, Radiator, NO.1 | ||||
| 16533-21010 |
Support, Radiator, NO.1
1997-12 → —
|
1NZFXE NHW1# | ¥2,190 | |
| 16535 — Support, Radiator, Lower | ||||
| 90480-40016 |
Support, Radiator, Lower
1997-12 → —
|
1NZFXE NHW1# | ¥480 | |
| 16561 — Seal, Radiator TO Support, NO.1 | ||||
| 16561-21010 |
Seal, Radiator TO Support, NO.1
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥510 | |
| 16561-21020 |
Seal, Radiator TO Support, NO.1
2000-05 → —
|
1NZFXE NHW11 | ¥520 | |
| 16562 — Seal, Radiator TO Support, NO.2 | ||||
| 16562-21010 |
Seal, Radiator TO Support, NO.2
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥720 | |
| 16562-21020 |
Seal, Radiator TO Support, NO.2
2000-05 → —
|
1NZFXE NHW11 | ¥720 | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-21010 |
Hose, Radiator, Inlet
1997-12 → —
|
1NZFXE NHW1# | ¥3,040 | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90467-33006 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2000-05 → —
|
1NZFXE NHW11 | ¥240 | |
| 90467-34004 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥390 | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-21010 |
Hose, Radiator, Outlet
1997-12 → —
|
1NZFXE NHW1# | ¥1,830 | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33006 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2000-05 → —
|
1NZFXE NHW11 | ¥240 | |
| 90467-34004 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥390 | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-21010 |
Bracket, Radiator Reserve Tank
2000-05 → —
|
1NZFXE NHW11 | ¥3,170 | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-21020 |
Shroud Sub-assy, Fan
1997-12 → 1999-12
ended
|
1NZFXE NHW10 | ¥7,000 | |
| 16711-21021 |
Shroud Sub-assy, Fan
1999-12 → —
|
1NZFXE NHW1# | ¥7,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
