Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

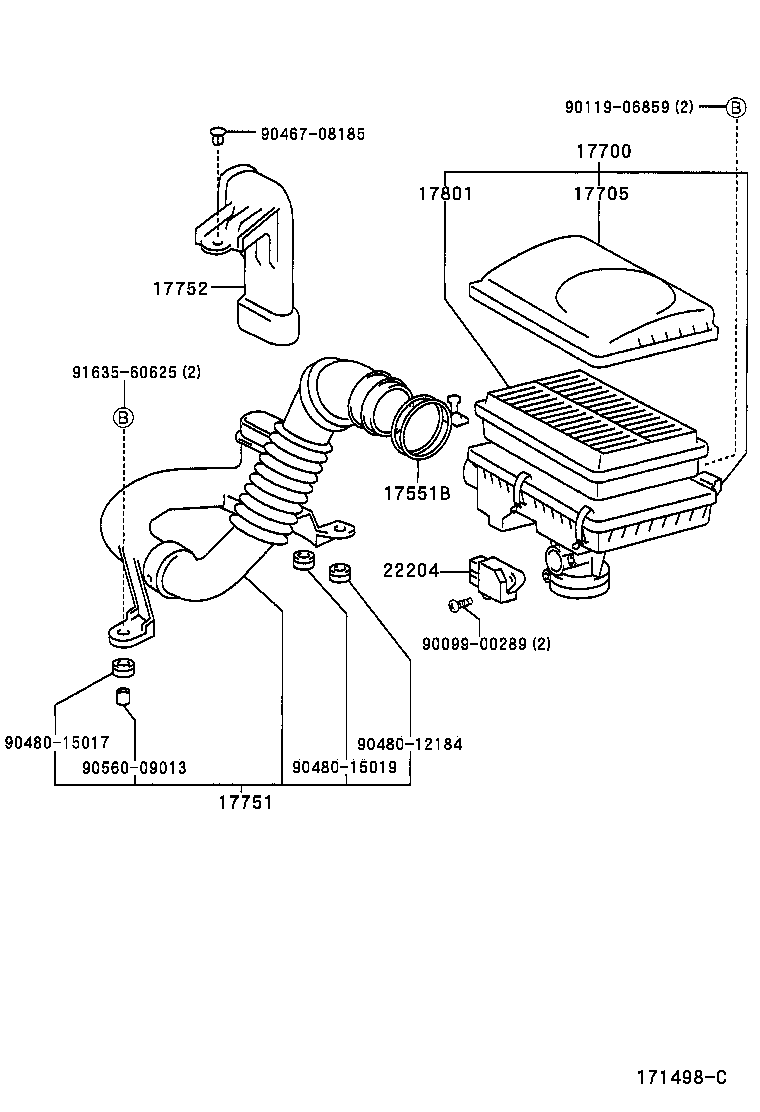

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17551B — Clamp(FOR AIR CLEANER INLET, NO.1) | ||||
| 96111-10530 |
Clamp(FOR AIR CLEANER INLET, NO.1)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥270 | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-21040 |
Cleaner Assy, Air
1997-12 → 2000-03
ended
|
1NZFXE NHW10 | ¥25,000 | |
| 17700-21041 |
Cleaner Assy, Air
2000-03 → 2000-05
ended
|
1NZFXE NHW10 | ¥25,000 | |
| 17700-21080 |
Cleaner Assy, Air
2000-05 → —
|
1NZFXE NHW11 | ¥25,000 | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-21020 |
Cap Sub-assy, Air Cleaner
1997-12 → —
|
1NZFXE NHW1# | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-21020 |
Inlet, Air Cleaner, NO.1
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥6,400 | |
| 17751-21050 |
Inlet, Air Cleaner, NO.1
2000-05 → —
|
1NZFXE NHW11 | ¥7,200 | |
| 17752 — Inlet, Air Cleaner, NO.2 | ||||
| 17752-21010 |
Inlet, Air Cleaner, NO.2
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,150 | |
| 17752-21030 note |
Inlet, Air Cleaner, NO.2
2000-05 → —
|
1NZFXE NHW11 | ¥3,370 | |
| 17752-21040 note |
Inlet, Air Cleaner, NO.2
2000-05 → —
|
1NZFXE NHW11 | ¥2,740 | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-21020 |
Element Sub-assy, Air Cleaner Filter
1997-12 → —
|
1NZFXE NHW1# | ¥2,840 | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-21010 |
Meter Sub-assy, Intake Air Flow
1997-12 → —
|
1NZFXE NHW1# | ¥19,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
