Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

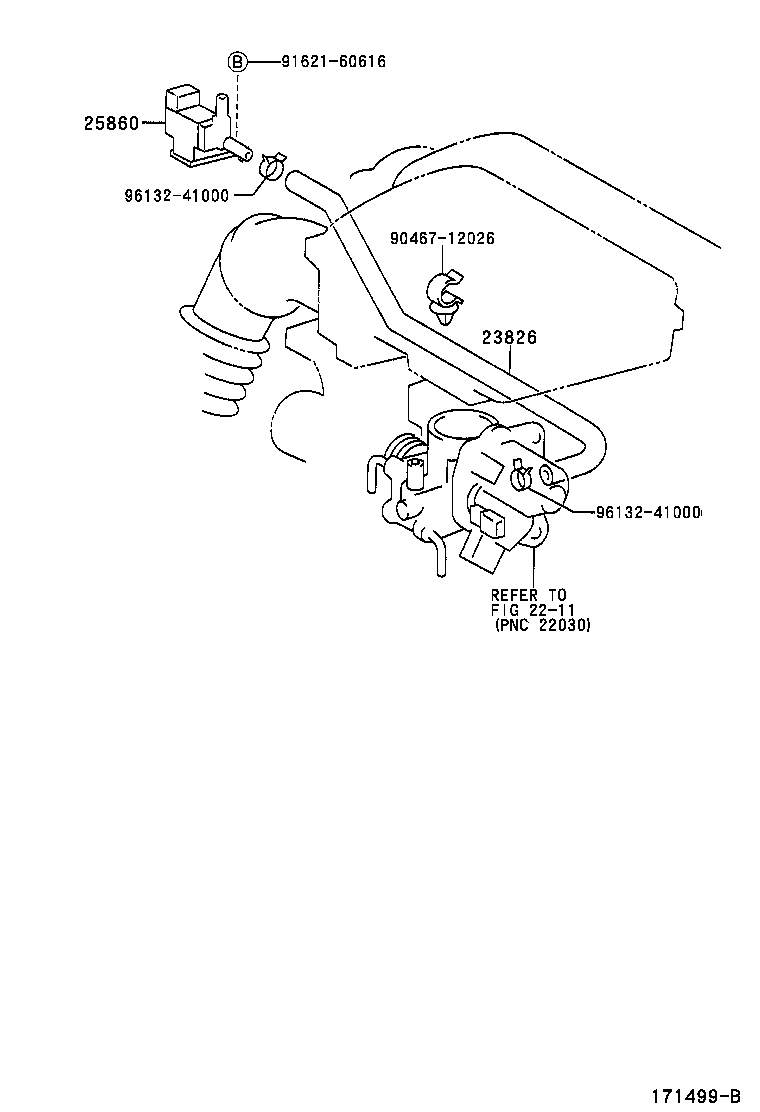

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-21010 |
Hose, Fuel Vapor Feed, NO.1
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥1,030 | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-21010 |
Valve Assy, Vacuum Switching, NO.1
1997-12 → —
|
1NZFXE NHW1# | ¥8,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
