Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

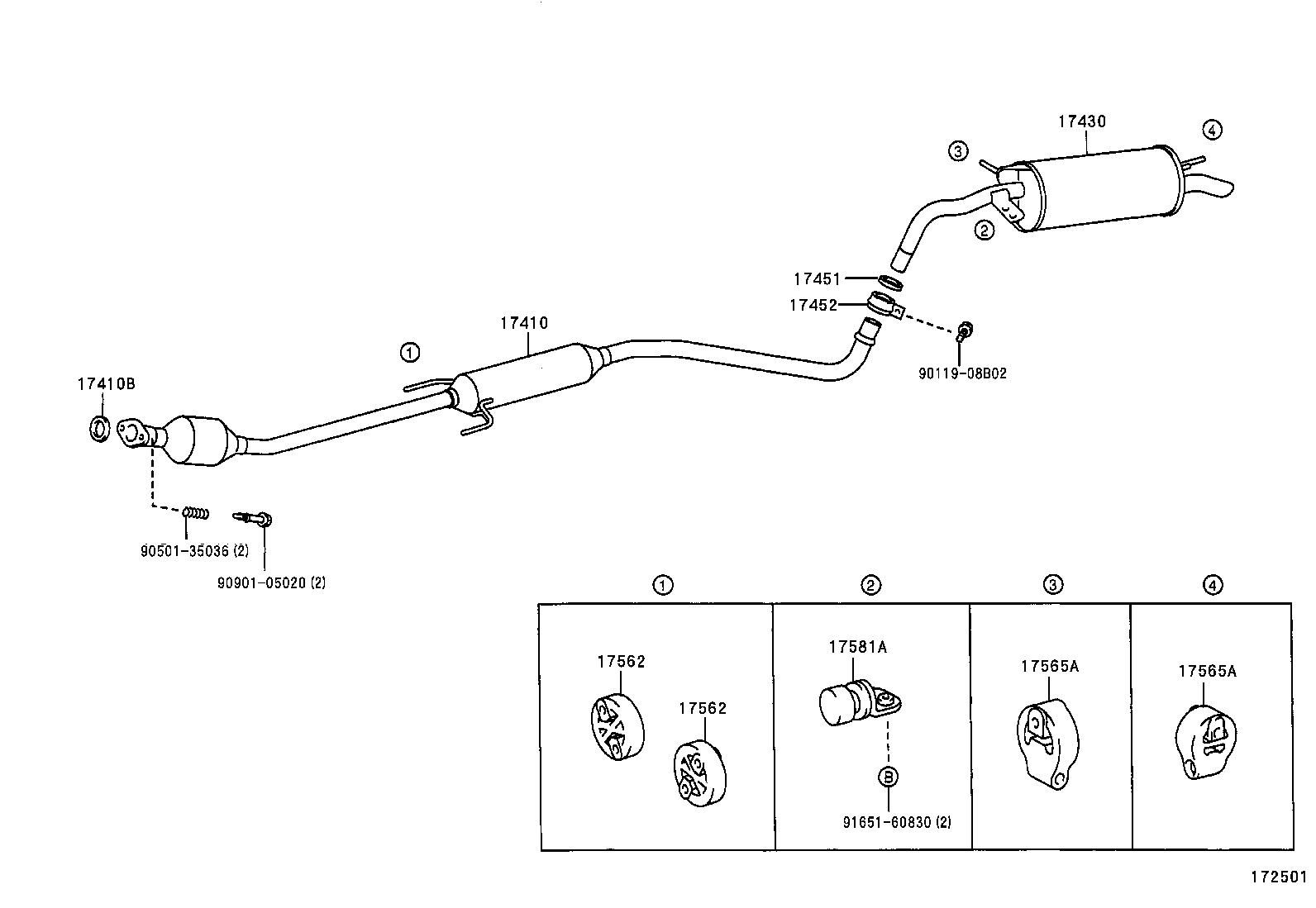

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-21030 |
Pipe Assy, Exhaust, Front
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥107,000 | |
| 17410-21270 |
Pipe Assy, Exhaust, Front
2000-05 → —
|
1NZFXE NHW11 | ¥87,300 | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-16030 |
Gasket, Exhaust Pipe
1997-12 → 1998-03
ended
|
1NZFXE NHW10 | ¥1,920 | |
| 17451-21010 |
Gasket, Exhaust Pipe
1998-03 → 2000-05
ended
|
1NZFXE NHW10 | ¥2,170 | |
| 17451-21040 |
Gasket, Exhaust Pipe
2000-05 → —
|
1NZFXE NHW11 | ¥2,620 | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-21010 |
Pipe Assy, Exhaust, Tail
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥26,000 | |
| 17430-21170 |
Pipe Assy, Exhaust, Tail
2000-05 → —
|
1NZFXE NHW11 | ¥23,300 | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06081 |
Gasket, Exhaust Pipe
1997-12 → —
|
1NZFXE NHW1# | ¥580 | |
| 17452 — Clamp, Exhaust Pipe | ||||
| 90461-16066 |
Clamp, Exhaust Pipe
1997-12 → —
|
1NZFXE NHW1# | ¥1,410 | |
| 17562 — Support, Exhaust Pipe, NO.2 | ||||
| 17562-21020 |
Support, Exhaust Pipe, NO.2
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥1,090 | |
| 17562-21021 |
Support, Exhaust Pipe, NO.2
2000-05 → —
|
1NZFXE NHW11 | ¥1,090 | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-21010 |
Support, Exhaust Pipe, NO.4
1997-12 → —
|
1NZFXE NHW1# | ¥1,260 | |
| 17581A — Damper, Exhaust Pipe | ||||
| 17581-70080 |
Damper, Exhaust Pipe
2000-05 → —
|
1NZFXE NHW11 | ¥3,310 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
