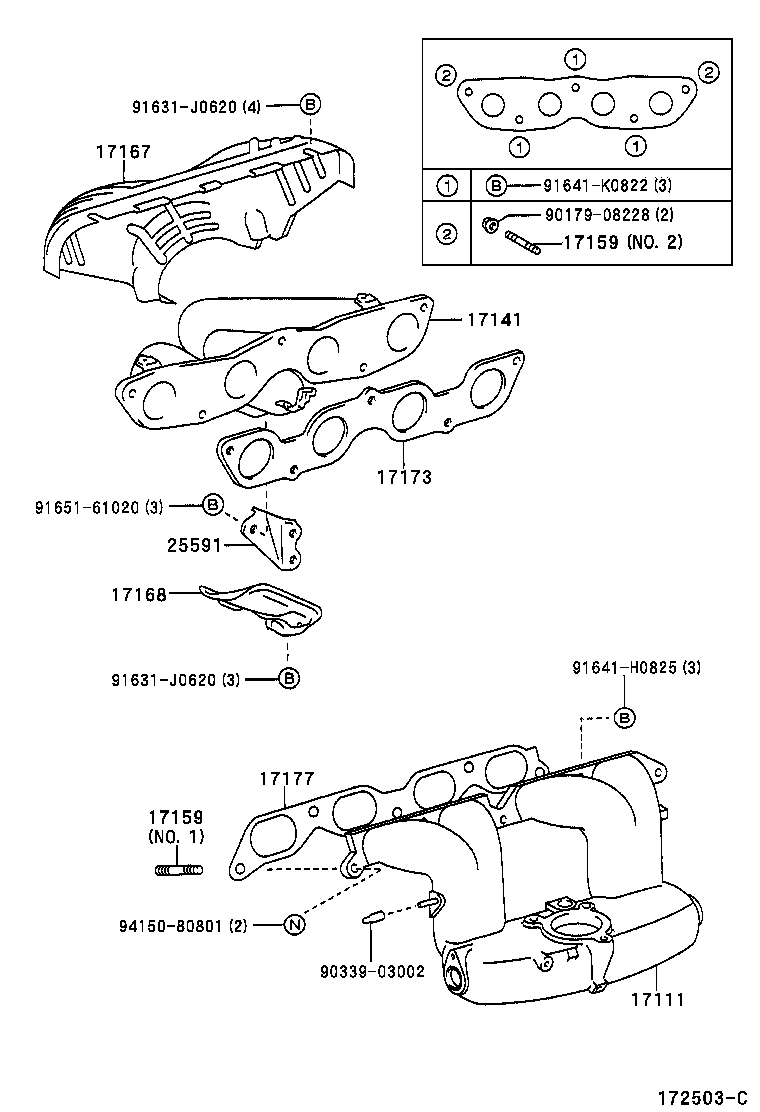

Exploded illustration 172503C 91631J0620 — not listed in this catalogue 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (3 parts) 91641K0822 — not listed in this catalogue 9017908228 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (4 parts) 17141 — MANIFOLD, EXHAUST (2 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (2 parts) 9165161020 — not listed in this catalogue 25591 — BRACKET, MANIFOLD SUPPORT (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (3 parts) 91641H0825 — not listed in this catalogue 91631J0620 — not listed in this catalogue 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (1 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (4 parts) 9415080801 — not listed in this catalogue 9033903002 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (2 parts)
172503C · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-21010 Manifold, Intake
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥21,100
17101-21060 Manifold, Intake
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥21,200
17141 — Manifold, Exhaust
17141-21020 Manifold, Exhaust
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥33,200
17141-21080 Manifold, Exhaust
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥26,400
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08348 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥160
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥210
90126-08037 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥340
90126-10015 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥250
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-21010 Insulator, Exhaust Manifold Heat, NO.1
1997-12 → 1998-01 ended
1NZFXE NHW10 ¥6,800
17167-21011 Insulator, Exhaust Manifold Heat, NO.1
1998-01 → 2000-05 ended
1NZFXE NHW10 ¥6,800
17167-21050 Insulator, Exhaust Manifold Heat, NO.1
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥9,400
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-21010 Insulator, Exhaust Manifold Heat, NO.2
1997-12 → 1998-01 ended
1NZFXE NHW10 ¥4,510
17168-21011 Insulator, Exhaust Manifold Heat, NO.2
1998-01 → 2000-05 ended
1NZFXE NHW10 ¥4,510
17168-21020 Insulator, Exhaust Manifold Heat, NO.2
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥2,220
17173 — Gasket, Exhaust Manifold TO Head
17173-21010 Gasket, Exhaust Manifold TO Head
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥1,590
17173-21020 Gasket, Exhaust Manifold TO Head
2000-05 → 2003-05 ended
1NZFXE NHW11 ¥980
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-21010 Gasket, Intake Manifold TO Head, NO.1
1997-12 → 2003-05 ended
1NZFXE NHW1# ¥630
25591 — Bracket, Manifold Support
25591-21010 Bracket, Manifold Support
1997-12 → 2000-05 ended
1NZFXE NHW10 ¥1,240
25591-21040 Bracket, Manifold Support
2000-05 → —
1NZFXE NHW11 ¥1,020
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
