Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

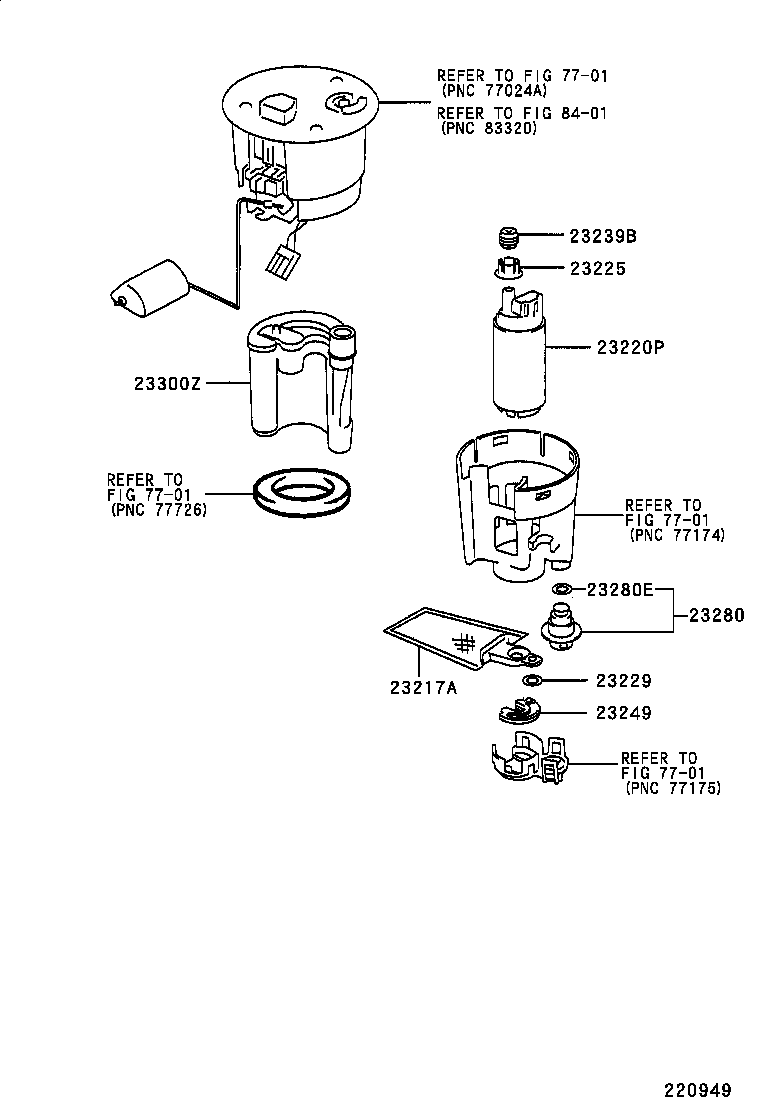

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23217A — Filter, Fuel Pump | ||||
| 23217-74021 |
Filter, Fuel Pump
1997-12 → —
|
1NZFXE NHW1# | ¥1,140 | |
| 23220P — Pump Assy, Fuel | ||||
| 23221-21010 |
Pump Assy, Fuel
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥37,200 | |
| 23221-22030 |
Pump Assy, Fuel
2000-05 → —
|
1NZFXE NHW11 | ¥37,100 | |
| 23225 — Spacer, Fuel Pump | ||||
| 23225-21010 |
Spacer, Fuel Pump
1997-12 → —
|
1NZFXE NHW1# | ¥140 | |
| 23229 — Clip(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
Clip(FOR FUEL PUMP FILTER)
1997-12 → —
|
1NZFXE NHW1# | ¥70 | |
| 23239B — Seal, Fuel Pump Filter | ||||
| 23239-21010 |
Seal, Fuel Pump Filter
1997-12 → —
|
1NZFXE NHW1# | ¥100 | |
| 23249 — Rubber, Cushion(FOR FUEL PUMP) | ||||
| 23249-46180 |
Rubber, Cushion(FOR FUEL PUMP)
2001-09 → —
|
1NZFXE NHW11 | ¥940 | |
| 23249-74610 |
Rubber, Cushion(FOR FUEL PUMP)
1997-12 → 2001-09
ended
|
1NZFXE NHW1# | ¥730 | |
| 23280 — Regulator Assy, Fuel Pressure | ||||
| 23280-22010 |
Regulator Assy, Fuel Pressure
1997-12 → —
|
1NZFXE NHW1# | ¥6,000 | |
| 23280E — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2000-05 → —
|
1NZFXE NHW11 | — | |
| 23300Z — Filter, Fuel(FOR FUEL TANK) | ||||
| 23300-21010 |
Filter, Fuel(FOR FUEL TANK)
2001-09 → —
|
1NZFXE NHW11 | ¥4,780 | |
| 23300-74330 |
Filter, Fuel(FOR FUEL TANK)
1997-12 → 2001-09
ended
|
1NZFXE NHW1# | ¥6,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
