Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

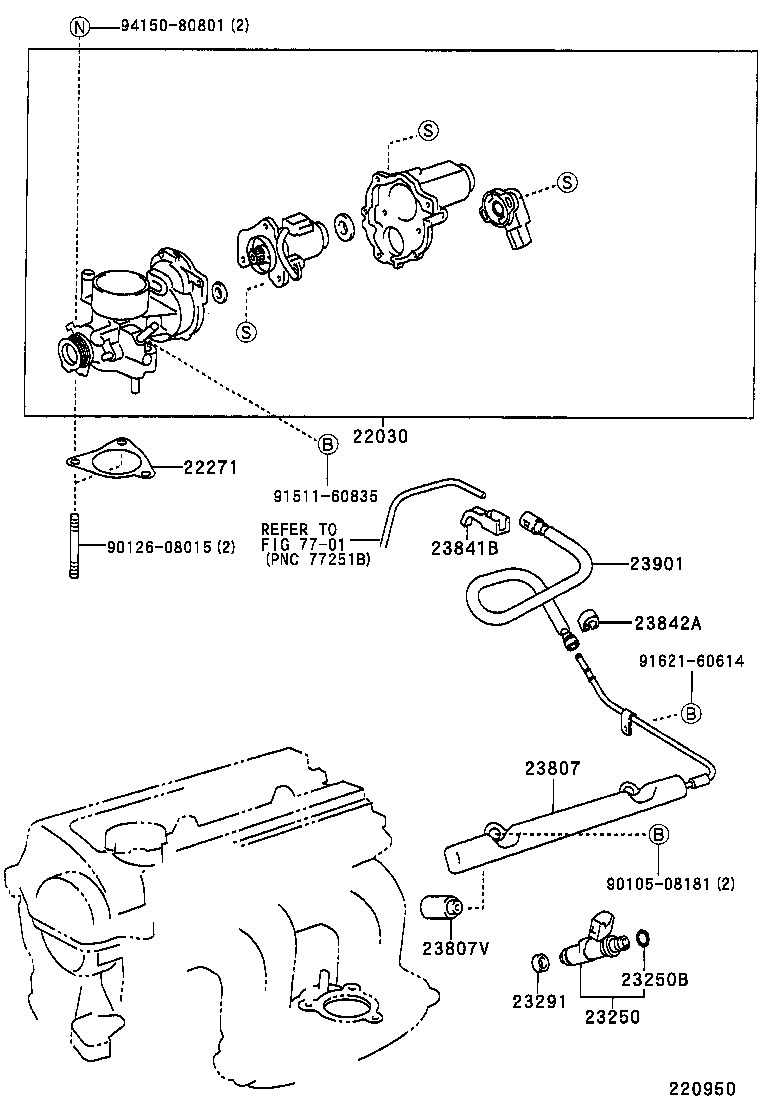

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-21010 |
Body Assy, Throttle W/Throttle Position Sensor
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥83,600 | |
| 22030-21020 |
Body Assy, Throttle W/Throttle Position Sensor
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥83,600 | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-21010 |
Gasket, Throttle Body
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥440 | |
| 22271-21030 |
Gasket, Throttle Body
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥430 | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-21010 |
Injector Assy, Fuel
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥20,200 | |
| 23209-21020 |
Injector Assy, Fuel
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥20,100 | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1997-12 → 1998-12
ended
|
1NZFXE NHW10 | ¥350 | |
| 90301-07024 |
Ring, O(FOR FUEL INJECTOR)
1998-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥190 | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-41010 |
Insulator, Injector Vibration
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥340 | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23814-21010 |
Pipe Sub-assy, Fuel Delivery
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥12,000 | |
| 23814-21040 |
Pipe Sub-assy, Fuel Delivery
2000-05 → 2003-05
ended
|
1NZFXE NHW11 | ¥13,200 | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-21010 |
Spacer, NO.1(FOR DELIVERY PIPE)
1997-12 → 2003-05
ended
|
1NZFXE NHW1# | ¥240 | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-21030 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2000-05 → —
|
1NZFXE NHW11 | ¥300 | |
| 23841-32050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥360 | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23842-22020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
1997-12 → —
|
1NZFXE NHW1# | ¥550 | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-21010 |
Tube Sub-assy, Fuel
1997-12 → 2000-05
ended
|
1NZFXE NHW10 | ¥6,100 | |
| 23901-21040 |
Tube Sub-assy, Fuel
2000-05 → —
|
1NZFXE NHW11 | ¥6,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
