Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

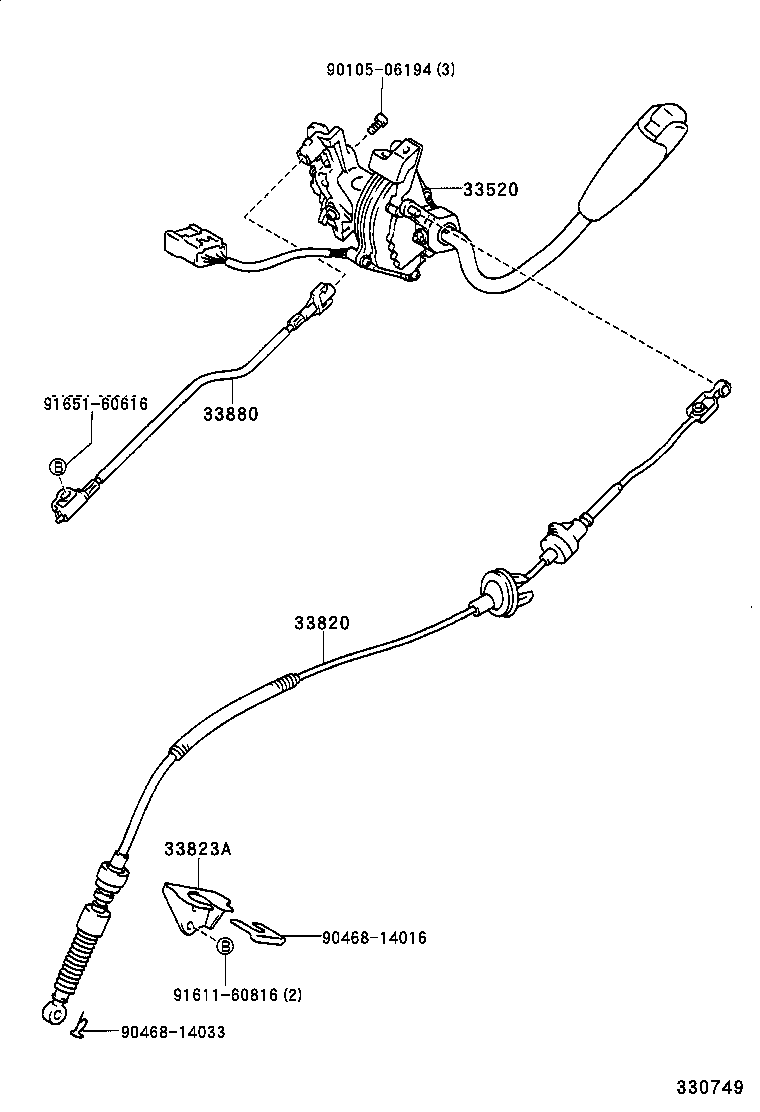

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33520 — Shaft Assy, Control | ||||
| 33520-47010-B0 note |
Shaft Assy, Control
1997-12 → 1998-12
ended
|
NHW10 | ¥24,700 | |
| 33520-47011-B0 note |
Shaft Assy, Control
1998-12 → 2000-05
ended
|
NHW10 | ¥24,700 | |
| 33520-47020-B0 note |
Shaft Assy, Control
2000-12 → 2001-12
ended
|
NHW11 S | ¥32,000 | |
| 33520-47020-B0 note |
Shaft Assy, Control
2002-01 → 2002-12
ended
|
NHW11 S | ¥32,000 | |
| 33520-47020-B0 note |
Shaft Assy, Control
2000-05 → —
|
NHW11 G | ¥32,000 | |
| 33520-47040-B0 note |
Shaft Assy, Control
2000-05 → —
|
NHW11 S | ¥24,700 | |
| 33820 — Cable Assy, Transmission Control (FOR COLUMN SHIFT) | ||||
| 33820-47010 |
Cable Assy, Transmission Control (FOR COLUMN SHIFT)
1997-12 → —
|
NHW1# | ¥13,000 | |
| 33823A — Bracket, Transmission Control Cable | ||||
| 33823-47010 |
Bracket, Transmission Control Cable
1997-12 → —
|
NHW1# | ¥850 | |
| 33880 — Cable Assy, Parking Lock (FOR COLUMN SHIFT) | ||||
| 33880-47010 |
Cable Assy, Parking Lock (FOR COLUMN SHIFT)
1997-12 → —
|
NHW1# | ¥2,320 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
