Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

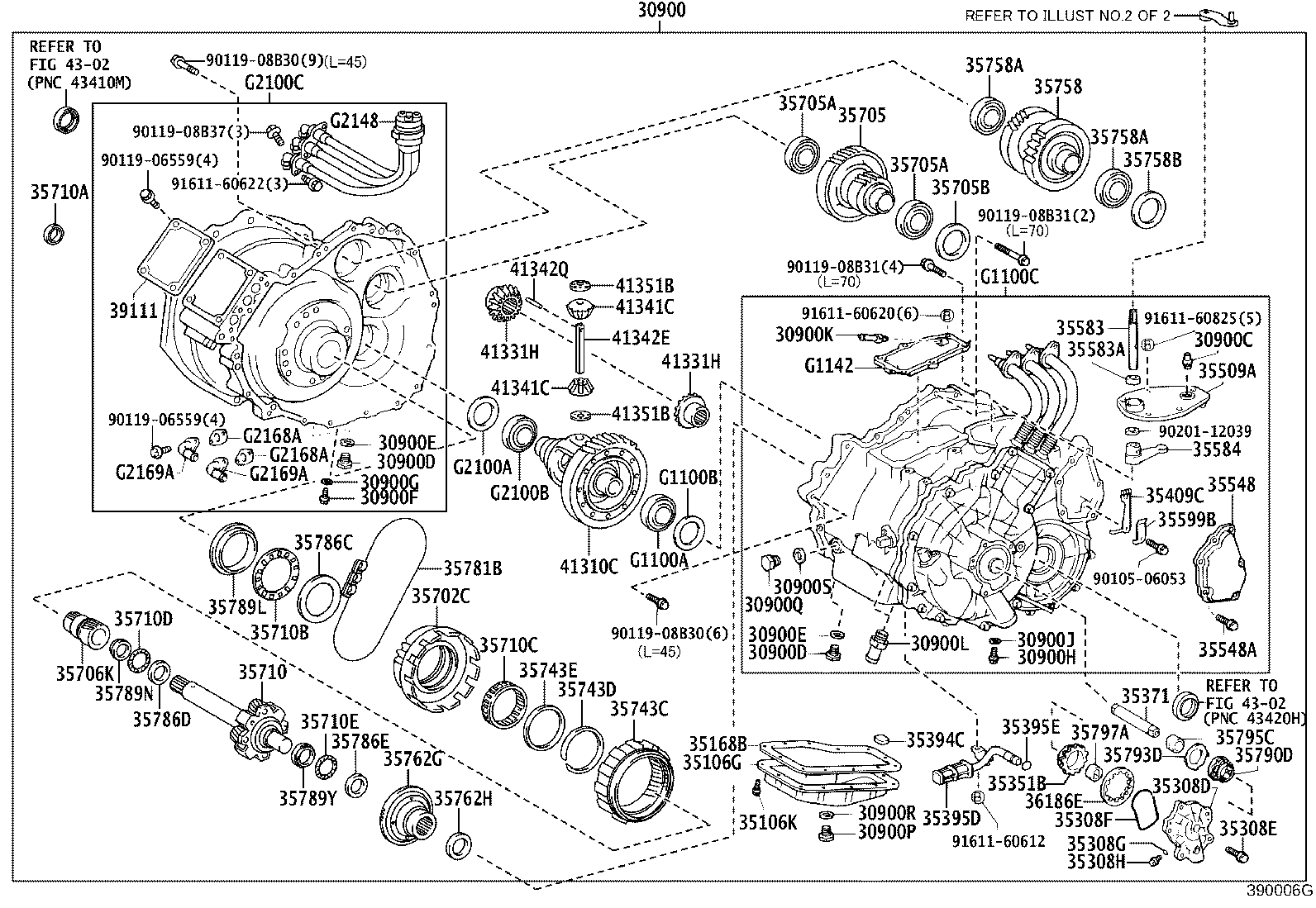

Exploded illustration 390006G 9011908B30 — not listed in this catalogue 35790D — CLUTCH ASSY, 1 WAY (1 parts) 9011908B37 — not listed in this catalogue 9011906559 — not listed in this catalogue G2148 — CABLE, GENERATOR (2 parts) 35710A — SEAL, TYPE T OIL(FOR INPUT SHAFT) (3 parts) 39111 — COVER, POWER CABLE (2 parts) 9161160622 — not listed in this catalogue 9161160620 — not listed in this catalogue 9011908B31 — not listed in this catalogue 35308E — BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 9011908B31 — not listed in this catalogue 30900G — GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) (1 parts) 30900F — PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) (1 parts) 9011906559 — not listed in this catalogue 30900K — CONNECTOR, TUBE(FOR TRANSAXLE HOUSING) (1 parts) G1142 — COVER, MOTOR WATERJACET (2 parts) 35583 — SHAFT, PARKING LOCK (1 parts) 35583A — SEAL, OIL(FOR PARKING LOCK SHAFT) (1 parts) 9161160825 — not listed in this catalogue 30900C — PLUG, BREATHER(FOR PARKING COVER) (1 parts) 35509A — COVER SUB-ASSY, PARKING SHAFT (2 parts) G2169A — UNION, GENERATOR WATERJACKET (1 parts) G2168A — GASKET, GENERATOR WATERJACKET UNION (1 parts) G2168A — GASKET, GENERATOR WATERJACKET UNION (1 parts) G2169A — UNION, GENERATOR WATERJACKET (1 parts) 30900E — GASKET(FOR TRANSAXLE HOUSING & CASE) (2 parts) 30900D — PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) (2 parts) 30900S — GASKET, FILLER PLUG(HEV) (2 parts) 30900Q — PLUG, FILLER(HEV) (2 parts) 30900E — GASKET(FOR TRANSAXLE HOUSING & CASE) (2 parts) 30900D — PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) (2 parts) 30900L — UNION(FOR TRANSAXLE HOUSING) (2 parts) 30900J — GASKET, NO.3(FOR TRANSAXLE HOUSING & CASE) (1 parts) 30900H — PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE) (1 parts) 9010506053 — not listed in this catalogue 35548A — BOLT, W/WASHER (FOR PARKING COVE & CASE) (1 parts) 9011908B30 — not listed in this catalogue 35168B — GASKET, TRANSAXLE OIL PAN (1 parts) 35106G — PAN SUB-ASSY, TRANSAXLE OIL (1 parts) 35394C — MAGNET, OIL CLEANER (1 parts) 35351B — ROTOR, TRANSAXLE OIL PUMP DRIVE (2 parts) 35371 — SHAFT, OIL PUMP DRIVE (2 parts) 35106K — BOLT, W/WASHER (FOR TRANSAXLE OIL PAN & CASE) (1 parts) 30900R — GASKET, DRAIN PLUG(HEV) (1 parts) 30900P — PLUG, DRAIN(HEV) (1 parts) 35395D — STRAINER, TRANSMISSION OIL (2 parts) 9161160612 — not listed in this catalogue 35395E — RING, O(FOR TRANSAXLE OIL STRAINER) (1 parts) 36186E — ROTOR, OIL PUMP DRIVEN (2 parts) 35308F — RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) (2 parts) 35308G — RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35308H — PLUG (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35797A — RACE, 1 WAY CLUTCH, INNER NO.2 (1 parts) 35793D — RETAINER, 1 WAY CLUTCH (1 parts) 35308D — COVER SUB-ASSY, TRANSMISSION OIL PUMP (2 parts) 35795C — RACE, 1 WAY CLUTCH, INNER NO.1 (1 parts) 9020112039 — not listed in this catalogue 35584 — LEVER, PARKING LOCK, NO.3 (1 parts) 35548 — COVER, PARKING (2 parts) 35409C — SPRING SUB-ASSY, MANUAL DETENT (1 parts) 35599B — COVER, MANUAL DETENT SPRING (1 parts) G1100C — MOTOR ASSY, HYBRID VEHICLE (2 parts) 35786E — RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT) (1 parts) 35710B — BEARING, THRUST NEEDLE ROLLER, NO.1(FOR DRIVE SPROCKET) (1 parts) 35789L — RACE, THRUST BEARING, NO.2 (1 parts) 35706K — GEAR SUB-ASSY, PLANETARY SUN (2 parts) 35710D — BEARING, THRUST NEEDLE ROLLER, NO.1(FOR INPUT SHAFT) (1 parts) 35786C — RACE, THRUST BEARING, NO.1 (1 parts) 35781B — CHAIN, TRANSMISSION DRIVE (1 parts) 35702C — SPROCKET SUB-ASSY, TRANSMISSION DRIVE (1 parts) 35710C — BEARING, NEEDLE ROLLER, NO.2(FOR DRIVE SPROCKET) (1 parts) 35743E — SPACER(FOR PLANETARY RING GEAR) (1 parts) 35743D — RING, SNAP(FOR PLANETARY RING GEAR) (1 parts) 35743C — GEAR, PLANETARY RING (2 parts) 35789N — RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT) (1 parts) 35786D — RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT) (1 parts) 35710 — SHAFT ASSY, INPUT (2 parts) 35789Y — RACE, THRUST BEARING NO.3(FOR INPUT SHAFT) (1 parts) 35710E — BEARING, THRUST NEEDLE ROLLER, NO.2(FOR INPUT SHAFT) (1 parts) 35762G — FLANGE, PLANETARY RING GEAR (2 parts) 35762H — SHIM(FOR PLANETARY RING GEAR FLANGE) (12 parts) G2100C — GENERATOR ASSY, HYBRID VEHICLE (2 parts) 35705A — BEARING(FOR COUNTER DRIVEN GEAR) (1 parts) 35705B — SHIM(FOR COUNTER DRIVEN GEAR) (29 parts) 35705 — GEAR SUB-ASSY, COUNTER DRIVEN (3 parts) 35705A — BEARING(FOR COUNTER DRIVEN GEAR) (1 parts) 35758A — BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR) (1 parts) 35758 — GEAR, SPROCKET DRIVEN & COUNTER DRIVE (2 parts) 35758B — SHIM(FOR COUNTER DRIVE GEAR) (11 parts) 35758A — BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR) (1 parts) 30900 — TRANSAXLE ASSY, HYBRID VEHICLE (3 parts) G2100A — SHIM(FOR DIFFERENTIAL CASE RH) (1 parts) G2100B — BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH) (1 parts) 41310C — CASE ASSY, DIFFERENTIAL (1 parts) G1100B — SHIM(FOR DIFFERENTIAL CASE LH) (31 parts) G1100A — BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH) (1 parts) 41342Q — PIN, STRAIGHT(FOR DIFFERENTIAL PINION SHAFT) (1 parts) 41342E — SHAFT, DIFFERENTIAL PINION (1 parts) 41351B — WASHER, DIFFERENTIAL PINION THRUST (1 parts) 41341C — PINION, DIFFERENTIAL (1 parts) 41331H — GEAR, DIFFERENTIAL SIDE (1 parts) 41341C — PINION, DIFFERENTIAL (1 parts) 41351B — WASHER, DIFFERENTIAL PINION THRUST (1 parts) 41331H — GEAR, DIFFERENTIAL SIDE (1 parts) 4302 — not listed in this catalogue 4302 — not listed in this catalogue
390006G · 92 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
191 parts on this figure
Part number Description Fitment Price
30900 — Transaxle Assy, Hybrid Vehicle
30900-47010 Transaxle Assy, Hybrid Vehicle
1997-12 → 2000-05 ended
NHW10 ¥389,000
30900-47020 Transaxle Assy, Hybrid Vehicle
2000-05 → 2001-01 ended
NHW11 ¥424,000
30900-47030 Transaxle Assy, Hybrid Vehicle
2001-01 → 2003-08 ended
NHW11 ¥424,000
30900C — Plug, Breather(FOR PARKING COVER)
90930-03129 Plug, Breather(FOR PARKING COVER)
1997-12 → 2000-05 ended
NHW10 ¥370
30900D — Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
90341-18006 Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2000-05 → 2003-08 ended
NHW11 ¥180
90341-18006 Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
1997-12 → 2000-05 ended
NHW10 ¥180
30900E — Gasket(FOR TRANSAXLE HOUSING & CASE)
90430-18008 Gasket(FOR TRANSAXLE HOUSING & CASE)
2000-05 → 2003-08 ended
NHW11 ¥110
90430-18008 Gasket(FOR TRANSAXLE HOUSING & CASE)
1997-12 → 2000-05 ended
NHW10 ¥110
30900F — Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
90341-10002 Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
1997-12 → 2000-05 ended
NHW10 ¥220
30900G — Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
90430-10022 Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
1997-12 → 2000-05 ended
NHW10 ¥100
30900H — Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
90341-10002 Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
1997-12 → 2000-05 ended
NHW10 ¥220
30900J — Gasket, NO.3(FOR TRANSAXLE HOUSING & CASE)
90430-10022 Gasket, NO.3(FOR TRANSAXLE HOUSING & CASE)
1997-12 → 2000-05 ended
NHW10 ¥100
30900K — Connector, Tube(FOR TRANSAXLE HOUSING)
90404-51079 Connector, Tube(FOR TRANSAXLE HOUSING)
1997-12 → 2003-08 ended
NHW1# ¥160
30900L — Union(FOR TRANSAXLE HOUSING)
90404-54045 Union(FOR TRANSAXLE HOUSING)
1997-12 → 2000-05 ended
NHW10 ¥510
90404-54045 Union(FOR TRANSAXLE HOUSING)
2000-05 → 2003-08 ended
NHW11 ¥510
30900P — Plug, Drain(HEV)
90341-18006 Plug, Drain(HEV)
1997-12 → 2003-08 ended
NHW1# ¥180
30900Q — Plug, Filler(HEV)
90341-18006 Plug, Filler(HEV)
2000-05 → 2003-08 ended
NHW11 ¥180
90341-18006 Plug, Filler(HEV)
1997-12 → 2000-05 ended
NHW10 ¥180
30900R — Gasket, Drain Plug(HEV)
90430-18008 Gasket, Drain Plug(HEV)
1997-12 → 2003-08 ended
NHW1# ¥110
30900S — Gasket, Filler Plug(HEV)
90430-18008 Gasket, Filler Plug(HEV)
1997-12 → 2000-05 ended
NHW10 ¥110
90430-18008 Gasket, Filler Plug(HEV)
2000-05 → 2003-08 ended
NHW11 ¥110
35106G — Pan Sub-assy, Transaxle Oil
35106-47010 Pan Sub-assy, Transaxle Oil
1997-12 → 2003-08 ended
NHW1# ¥3,560
35106K — Bolt, W/Washer (FOR TRANSAXLE OIL PAN & CASE)
90119-06173 Bolt, W/Washer (FOR TRANSAXLE OIL PAN & CASE)
1997-12 → 2003-08 ended
NHW1# ¥80
35168B — Gasket, Transaxle Oil Pan
35168-47010 Gasket, Transaxle Oil Pan
1997-12 → 2003-08 ended
NHW1# ¥610
35308D — Cover Sub-assy, Transmission Oil Pump
35308-47010 Cover Sub-assy, Transmission Oil Pump
1997-12 → 2000-05 ended
NHW10 ¥7,900
35308-47020 Cover Sub-assy, Transmission Oil Pump
2000-05 → 2003-08 ended
NHW11 ¥7,600
35308E — Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
91611-60622 Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
1997-12 → 2003-08 ended
NHW1# ¥200
35308F — Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
90903-01005 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
1997-12 → 2000-05 ended
NHW10 ¥240
90903-01009 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2000-05 → 2003-08 ended
NHW11 ¥220
35308G — Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
90301-06196 Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
1997-12 → 2003-08 ended
NHW1# ¥170
35308H — Plug (FOR TRANSMISSION OIL PUMP COVER)
90341-08001 Plug (FOR TRANSMISSION OIL PUMP COVER)
1997-12 → 2003-08 ended
NHW1# ¥120
35351B — Rotor, Transaxle Oil Pump Drive
35351-47010 Rotor, Transaxle Oil Pump Drive
1997-12 → 2000-05 ended
NHW10 ¥920
35351-47020 Rotor, Transaxle Oil Pump Drive
2000-05 → 2003-08 ended
NHW11 ¥410
35371 — Shaft, Oil Pump Drive
35371-47010 Shaft, Oil Pump Drive
1997-12 → 2000-05 ended
NHW10 ¥2,080
35371-47020 Shaft, Oil Pump Drive
2000-05 → 2003-08 ended
NHW11 ¥2,020
35394C — Magnet, Oil Cleaner
35394-30011 Magnet, Oil Cleaner
1997-12 → 2003-08 ended
NHW1# ¥360
35395D — Strainer, Transmission Oil
35395-47010 Strainer, Transmission Oil
1997-12 → 2000-05 ended
NHW10 ¥1,980
35395-47020 Strainer, Transmission Oil
2000-05 → 2003-08 ended
NHW11 ¥3,230
35395E — Ring, O(FOR TRANSAXLE OIL STRAINER)
90301-11019 Ring, O(FOR TRANSAXLE OIL STRAINER)
1997-12 → 2003-08 ended
NHW1# ¥140
35409C — Spring Sub-assy, Manual Detent
35409-47010 Spring Sub-assy, Manual Detent
1997-12 → 2003-08 ended
NHW1# ¥670
35509A — Cover Sub-assy, Parking Shaft
35509-47010 Cover Sub-assy, Parking Shaft
1997-12 → 2000-05 ended
NHW10 ¥4,590
35509-47020 Cover Sub-assy, Parking Shaft
2000-05 → 2003-08 ended
NHW11 ¥4,590
35548 — Cover, Parking
35548-47010 Cover, Parking
1997-12 → 2001-06 ended
NHW1# ¥4,590
35548-47011 Cover, Parking
2001-06 → 2003-08 ended
NHW11 ¥4,590
35548A — Bolt, W/Washer (FOR PARKING COVE & CASE)
91611-60625 Bolt, W/Washer (FOR PARKING COVE & CASE)
1997-12 → 2003-08 ended
NHW1# ¥130
35583 — Shaft, Parking Lock
35583-47010 Shaft, Parking Lock
1997-12 → 2003-08 ended
NHW1# ¥910
35583A — Seal, Oil(FOR PARKING LOCK SHAFT)
90311-12002 Seal, Oil(FOR PARKING LOCK SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥270
35584 — Lever, Parking Lock, NO.3
35584-47010 Lever, Parking Lock, NO.3
1997-12 → 2003-08 ended
NHW1# ¥1,140
35599B — Cover, Manual Detent Spring
35599-47010 Cover, Manual Detent Spring
1997-12 → 2003-08 ended
NHW1# ¥380
35702C — Sprocket Sub-assy, Transmission Drive
35702-47010 Sprocket Sub-assy, Transmission Drive
1997-12 → 2003-08 ended
NHW1# ¥6,600
35705 — Gear Sub-assy, Counter Driven
35705-47010 Gear Sub-assy, Counter Driven
1997-12 → 2000-05 ended
NHW10 ¥67,900
35705-47020 Gear Sub-assy, Counter Driven
2000-05 → 2002-02 ended
NHW11 ¥66,900
35705-47021 Gear Sub-assy, Counter Driven
2002-02 → 2003-08 ended
NHW11 ¥66,800
35705A — Bearing(FOR COUNTER DRIVEN GEAR)
90366-38004 Bearing(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥2,250
35705B — Shim(FOR COUNTER DRIVEN GEAR)
90564-56001 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥140
90564-56002 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56003 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56018 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56019 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56020 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56021 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56022 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56034 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56035 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56036 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56037 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56038 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56039 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56040 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56041 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56042 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56043 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56044 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56045 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56046 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56047 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56048 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56049 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56050 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56051 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56052 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56053 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-56054 note Shim(FOR COUNTER DRIVEN GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
35706K — Gear Sub-assy, Planetary Sun
35706-47010 Gear Sub-assy, Planetary Sun
1997-12 → 2000-05 ended
NHW10 —
35706-47020 Gear Sub-assy, Planetary Sun
2000-05 → 2003-08 ended
NHW11 ¥10,000
35710 — Shaft Assy, Input
35710-47010 Shaft Assy, Input
1997-12 → 2000-05 ended
NHW10 ¥41,400
35710-47020 Shaft Assy, Input
2000-05 → 2003-08 ended
NHW11 ¥41,400
35710A — Seal, Type T Oil(FOR INPUT SHAFT)
90311-25022 Seal, Type T Oil(FOR INPUT SHAFT)
1997-12 → 2000-05 ended
NHW10 ¥220
90311-25023 note Seal, Type T Oil(FOR INPUT SHAFT)
2000-05 → 2003-08 ended
NHW11 ¥200
90311-25024 note Seal, Type T Oil(FOR INPUT SHAFT)
2000-05 → 2003-08 ended
NHW11 ¥200
35710B — Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET)
90374-85001 Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET)
1997-12 → 2003-08 ended
NHW1# ¥1,200
35710C — Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET)
90364-82002 Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET)
1997-12 → 2003-08 ended
NHW1# ¥1,540
35710D — Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT)
90374-27011 Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥830
35710E — Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT)
90374-31004 Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥780
35743C — Gear, Planetary Ring
35743-47010 Gear, Planetary Ring
1997-12 → 2000-05 ended
NHW10 —
35743-47020 Gear, Planetary Ring
2000-05 → 2003-08 ended
NHW11 ¥13,900
35743D — Ring, Snap(FOR PLANETARY RING GEAR)
90520-87003 Ring, Snap(FOR PLANETARY RING GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
35743E — Spacer(FOR PLANETARY RING GEAR)
90560-82043 Spacer(FOR PLANETARY RING GEAR)
1997-12 → 2003-08 ended
NHW1# ¥140
35758 — Gear, Sprocket Driven & Counter Drive
35758-47010 Gear, Sprocket Driven & Counter Drive
1997-12 → 2000-05 ended
NHW10 ¥11,400
35758-47020 Gear, Sprocket Driven & Counter Drive
2000-05 → 2003-08 ended
NHW11 ¥11,600
35758A — Bearing, Radial Ball(FOR CONTER DRIVE GEAR)
90363-35044 Bearing, Radial Ball(FOR CONTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥2,040
35758B — Shim(FOR COUNTER DRIVE GEAR)
90564-57001 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57002 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57003 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57004 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57005 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57006 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57007 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57008 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57009 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57010 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-57011 note Shim(FOR COUNTER DRIVE GEAR)
1997-12 → 2003-08 ended
NHW1# ¥230
35762G — Flange, Planetary Ring Gear
35762-47010 Flange, Planetary Ring Gear
1997-12 → 2000-05 ended
NHW10 ¥3,010
35762-47020 Flange, Planetary Ring Gear
2000-05 → 2003-08 ended
NHW11 ¥3,010
35762H — Shim(FOR PLANETARY RING GEAR FLANGE)
90564-36009 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-36010 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥230
90564-36011 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36012 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36013 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36014 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36015 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36016 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36017 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36018 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36019 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
90564-36020 note Shim(FOR PLANETARY RING GEAR FLANGE)
1997-12 → 2003-08 ended
NHW1# ¥320
35781B — Chain, Transmission Drive
35781-47010 Chain, Transmission Drive
1997-12 → 2003-08 ended
NHW1# ¥30,400
35786C — Race, Thrust Bearing, NO.1
35786-47010 Race, Thrust Bearing, NO.1
1997-12 → 2003-08 ended
NHW1# ¥460
35786D — Race, Thrust Bearing, NO.1(FOR INPUT SHAFT)
35786-47020 Race, Thrust Bearing, NO.1(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥100
35786E — Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
35786-47030 Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥350
35789L — Race, Thrust Bearing, NO.2
35789-47010 Race, Thrust Bearing, NO.2
1997-12 → 2003-08 ended
NHW1# ¥1,360
35789N — Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
35789-47020 Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥410
35789Y — Race, Thrust Bearing NO.3(FOR INPUT SHAFT)
35789-47030 Race, Thrust Bearing NO.3(FOR INPUT SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥750
35790D — Clutch Assy, 1 Way
35790-47010 Clutch Assy, 1 Way
1997-12 → 2000-05 ended
NHW10 ¥5,500
35793D — Retainer, 1 Way Clutch
35793-47010 Retainer, 1 Way Clutch
1997-12 → 2000-05 ended
NHW10 ¥650
35795C — Race, 1 Way Clutch, Inner NO.1
35795-47010 Race, 1 Way Clutch, Inner NO.1
1997-12 → 2000-05 ended
NHW10 ¥740
35797A — Race, 1 Way Clutch, Inner NO.2
35797-47010 Race, 1 Way Clutch, Inner NO.2
1997-12 → 2000-05 ended
NHW10 ¥620
36186E — Rotor, Oil Pump Driven
35352-47010 Rotor, Oil Pump Driven
2000-05 → 2003-08 ended
NHW11 ¥330
36186-25010 Rotor, Oil Pump Driven
1997-12 → 2000-05 ended
NHW10 ¥380
39111 — Cover, Power Cable
39111-47010 Cover, Power Cable
1997-12 → 2001-06 ended
NHW1# ¥4,590
39111-47011 Cover, Power Cable
2001-06 → 2003-08 ended
NHW11 ¥4,590
41310C — Case Assy, Differential
41310-47010 Case Assy, Differential
1997-12 → 2003-08 ended
NHW1# ¥98,300
41331H — Gear, Differential Side
41331-32010 Gear, Differential Side
1997-12 → 2003-08 ended
NHW1# ¥5,100
41341C — Pinion, Differential
41341-30011 Pinion, Differential
1997-12 → 2003-08 ended
NHW1# ¥2,160
41342E — Shaft, Differential Pinion
41342-32020 Shaft, Differential Pinion
1997-12 → 2003-08 ended
NHW1# ¥1,690
41342Q — Pin, Straight(FOR DIFFERENTIAL PINION SHAFT)
90250-06058 Pin, Straight(FOR DIFFERENTIAL PINION SHAFT)
1997-12 → 2003-08 ended
NHW1# ¥160
41351B — Washer, Differential Pinion Thrust
41351-32010 Washer, Differential Pinion Thrust
1997-12 → 2003-08 ended
NHW1# ¥120
G1100A — Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH)
90366-40064 Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥2,690
G1100B — Shim(FOR DIFFERENTIAL CASE LH)
90564-45011 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥360
90564-45040 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥310
90564-45041 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥310
90564-45042 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥310
90564-45043 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥310
90564-45060 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45061 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45062 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45063 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45069 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 1998-11 ended
NHW10 ¥400
90564-45071 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45072 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45073 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45074 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45075 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45076 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45077 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45078 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45079 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45080 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45081 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45082 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45083 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45084 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45085 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45086 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45087 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45088 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45089 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45090 note Shim(FOR DIFFERENTIAL CASE LH)
1997-12 → 2003-08 ended
NHW1# ¥390
90564-45091 note Shim(FOR DIFFERENTIAL CASE LH)
1998-11 → 2003-08 ended
NHW1# ¥390
G1100C — Motor Assy, Hybrid Vehicle
G1100-47030 Motor Assy, Hybrid Vehicle
1997-12 → 2000-05 ended
NHW10 ¥252,000
G1100-47040 Motor Assy, Hybrid Vehicle
2000-05 → 2003-08 ended
NHW11 ¥252,000
G1142 — Cover, Motor Waterjacet
G1142-47010 Cover, Motor Waterjacet
1997-12 → 2000-05 ended
NHW10 ¥4,080
G1142-47020 Cover, Motor Waterjacet
2000-05 → 2003-08 ended
NHW11 ¥3,980
G2100A — Shim(FOR DIFFERENTIAL CASE RH)
90564-45011 Shim(FOR DIFFERENTIAL CASE RH)
1997-12 → 2000-05 ended
NHW10 ¥360
G2100B — Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH)
90366-40016 Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH)
1997-12 → 2003-08 ended
NHW1# ¥2,690
G2100C — Generator Assy, Hybrid Vehicle
G2100-47030 Generator Assy, Hybrid Vehicle
1997-12 → 2000-05 ended
NHW10 ¥222,000
G2100-47040 Generator Assy, Hybrid Vehicle
2000-05 → 2003-08 ended
NHW11 ¥222,000
G2148 — Cable, Generator
G2148-47011 Cable, Generator
1997-12 → 2000-05 ended
NHW10 ¥19,400
G2148-47020 Cable, Generator
2000-05 → 2003-08 ended
NHW11 ¥19,400
G2168A — Gasket, Generator Waterjacket Union
G2168-47010 Gasket, Generator Waterjacket Union
1997-12 → 2000-05 ended
NHW10 ¥250
G2169A — Union, Generator Waterjacket
G2169-47010 Union, Generator Waterjacket
1997-12 → 2000-05 ended
NHW10 ¥1,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
