Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

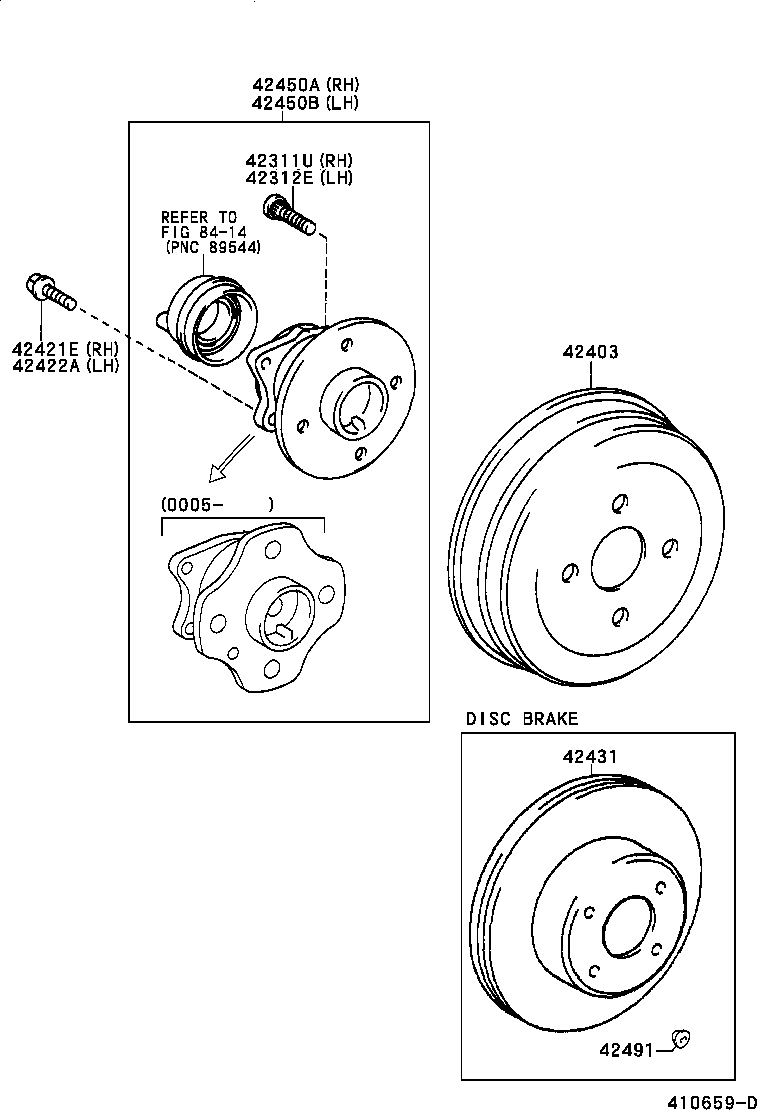

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02047 |
Bolt, Hub(FOR REAR AXLE RH)
2000-05 → —
|
NHW11 | ¥230 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
1997-12 → 2000-05
ended
|
NHW10 | ¥240 | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02047 |
Bolt, Hub(FOR REAR AXLE LH)
2000-05 → —
|
NHW11 | ¥230 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
1997-12 → 2000-05
ended
|
NHW10 | ¥240 | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-47010 |
Drum Sub-assy, Rear Brake
1997-12 → 2000-05
ended
|
NHW10 | ¥9,300 | |
| 42431-47011 |
Drum Sub-assy, Rear Brake
2000-05 → —
|
NHW11 | ¥9,300 | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10434 |
Bolt (FOR REAR AXLE BEARING CASE RH)
1997-12 → 2000-05
ended
|
NHW10 | ¥180 | |
| 90105-10470 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2000-05 → 2001-03
ended
|
NHW11 | ¥170 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2001-04 → —
|
NHW11 | ¥120 | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10434 |
Bolt (FOR REAR AXLE BEARING CASE LH)
1997-12 → 2000-05
ended
|
NHW10 | ¥180 | |
| 90105-10470 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2000-05 → 2001-03
ended
|
NHW11 | ¥170 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2001-04 → —
|
NHW11 | ¥120 | |
| 42431 — Disc, Rear | ||||
| 42431-47020 |
Disc, Rear
2002-09 → —
|
NHW11 | ¥10,100 | |
| 42431-52050 |
Disc, Rear
2001-08 → 2002-09
ended
|
NHW11 | ¥14,300 | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-47010 |
Hub & Bearing Assy, Rear Axle, RH
1997-12 → 2000-05
ended
|
NHW10 | ¥23,200 | |
| 42450-47020 |
Hub & Bearing Assy, Rear Axle, RH
2000-05 → —
|
NHW11 | ¥23,200 | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-47010 |
Hub & Bearing Assy, Rear Axle, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥23,200 | |
| 42450-47020 |
Hub & Bearing Assy, Rear Axle, LH
2000-05 → —
|
NHW11 | ¥23,200 | |
| 42491 — Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) | ||||
| 47491-22020 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
2001-08 → —
|
NHW11 | ¥140 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
