Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

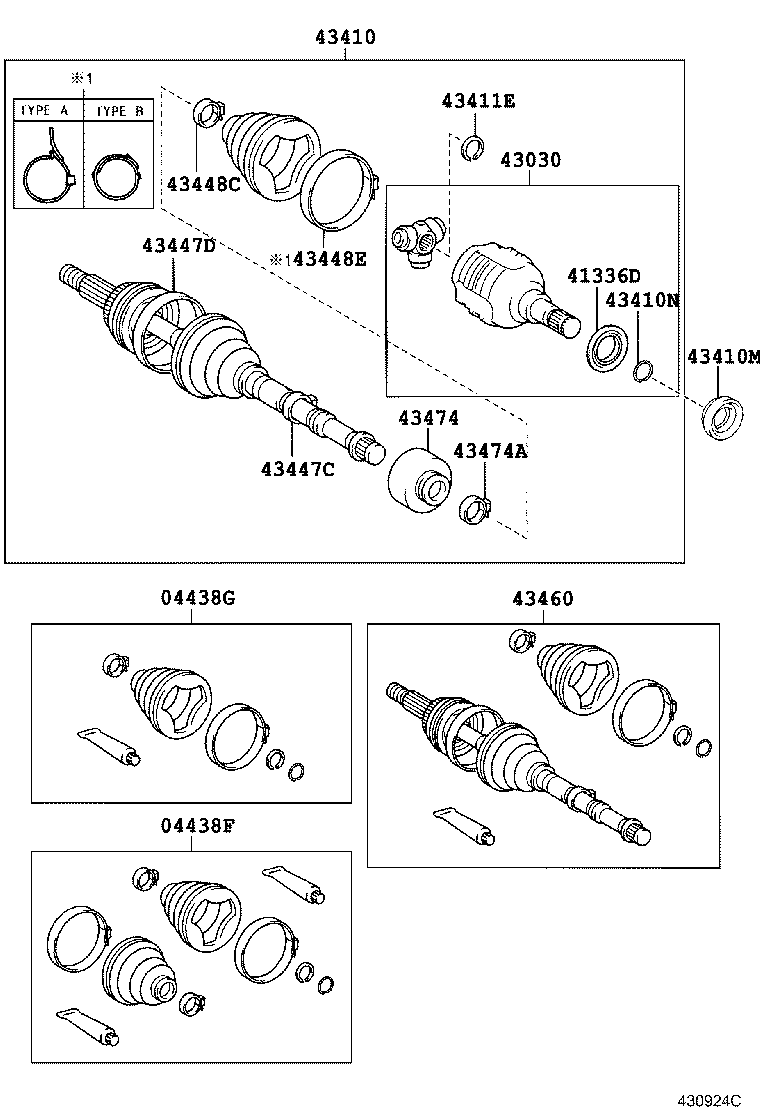

Exploded illustration 430924C 43410 — SHAFT ASSY, FRONT DRIVE, RH (3 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (5 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43474 — DAMPER, DRIVE SHAFT (1 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (3 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (1 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (3 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (4 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts)
430924C · 15 callouts Full size ↗
39 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438-12660 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2001-04 → —
NHW11 ¥10,800
04438-20130 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1997-12 → 1998-04 ended
NHW10 ¥10,800
04438-20131 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1999-04 ended
NHW10 ¥10,800
04438-20132 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-04 → 2001-04 ended
NHW1# ¥10,800
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, RH
2001-04 → —
NHW11 ¥6,700
04438-20120 Boot Kit, Front Drive Shaft Inboard Joint, RH
1997-12 → 1998-04 ended
NHW10 ¥6,700
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 2001-04 ended
NHW1# ¥6,700
41336D — Cover, Front Drive Shaft Dust, RH
41336-12060 Cover, Front Drive Shaft Dust, RH
2000-11 → —
NHW11 ¥200
41336-32020 Cover, Front Drive Shaft Dust, RH
1997-12 → 2000-11 ended
NHW1# ¥310
43030 — Joint Assy, Front Drive Inboard, RH
43040-20010 Joint Assy, Front Drive Inboard, RH
1997-12 → 1998-06 ended
NHW10 ¥25,000
43040-32040 Joint Assy, Front Drive Inboard, RH
1998-06 → —
NHW1# ¥17,300
43410 — Shaft Assy, Front Drive, RH
43410-47010 Shaft Assy, Front Drive, RH
1997-12 → 1999-01 ended
NHW10 ¥82,700
43410-47011 Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
NHW1# ¥82,700
43410-47012 Shaft Assy, Front Drive, RH
2001-04 → —
NHW11 ¥82,700
43410M — Oil Seal, Front Drive Shaft, RH
90311-35019 Oil Seal, Front Drive Shaft, RH
1997-12 → 2000-05 ended
NHW10 ¥400
90311-35045 Oil Seal, Front Drive Shaft, RH
2000-05 → 2003-08 ended
NHW11 ¥290
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
1997-12 → —
NHW1# ¥110
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1997-12 → —
NHW1# ¥100
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → —
NHW11 ¥370
42345-20090 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2000-05 ended
NHW10 ¥330
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2000-05 → 2001-04 ended
NHW11 ¥530
90949-01947 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-12 → 1999-01 ended
NHW10 ¥360
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → —
NHW11 ¥580
42345-20110 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2000-05 ended
NHW10 ¥510
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2000-05 → 2001-04 ended
NHW11 ¥620
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-12 → 1999-01 ended
NHW10 ¥380
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-12 → 1999-01 ended
NHW10 ¥230
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-12 → —
NHW1# ¥80
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-02 → —
NHW11 ¥300
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-12 → 2002-03 ended
NHW1# ¥380
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-12 → 2002-03 ended
NHW1# ¥230
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-49035 Shaft Assy, Front Drive Outboard Joint, RH
1997-12 → 1998-04 ended
NHW10 ¥50,400
43460-49036 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
NHW10 ¥50,400
43460-49037 Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
NHW1# ¥50,400
43460-49038 Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → —
NHW11 ¥50,400
43474 — Damper, Drive Shaft
43474-47010 Damper, Drive Shaft
1997-12 → —
NHW1# ¥2,010
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1997-12 → 2000-05 ended
NHW10 ¥700
90949-01947 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1997-12 → 2000-05 ended
NHW10 ¥360
90949-01947 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2000-05 → —
NHW11 ¥360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
