Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

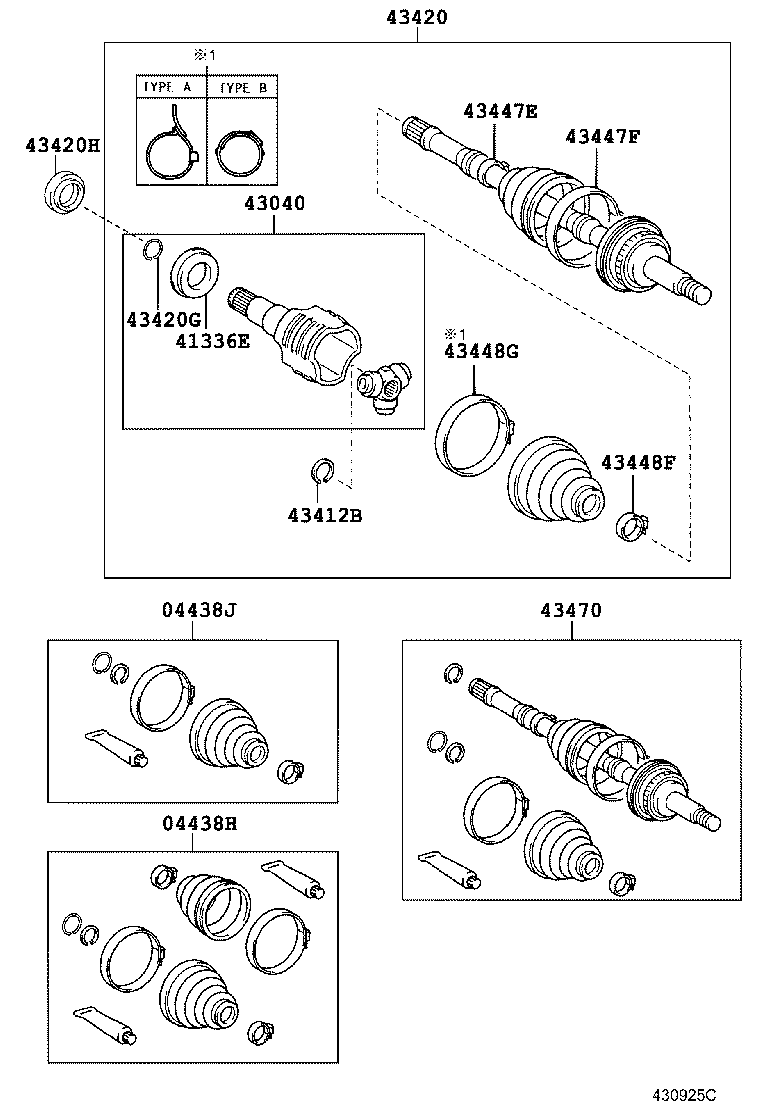

Exploded illustration 430925C 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (1 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (3 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (5 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (3 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (1 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (1 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (2 parts)
430925C · 13 callouts Full size ↗
35 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438-12660 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2001-04 → —
NHW11 ¥10,800
04438-20130 Boot Kit, Front Drive Shaft, IN & Outboard, LH
1997-12 → 1998-04 ended
NHW10 ¥10,800
04438-20131 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1998-04 → 1999-04 ended
NHW10 ¥10,800
04438-20132 note Boot Kit, Front Drive Shaft, IN & Outboard, LH
1999-04 → 2001-04 ended
NHW1# ¥10,800
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, LH
2001-04 → —
NHW11 ¥6,700
04438-20120 Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-12 → 1998-04 ended
NHW10 ¥6,700
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, LH
1998-04 → 2001-04 ended
NHW1# ¥6,700
41336E — Cover, Front Drive Shaft Dust, LH
41336-12060 Cover, Front Drive Shaft Dust, LH
2000-11 → —
NHW11 ¥200
41336-32020 Cover, Front Drive Shaft Dust, LH
1997-12 → 2000-11 ended
NHW1# ¥310
43040 — Joint Assy, Front Drive Inboard, LH
43040-20010 Joint Assy, Front Drive Inboard, LH
1997-12 → 1998-06 ended
NHW10 ¥25,000
43040-32040 Joint Assy, Front Drive Inboard, LH
1998-06 → —
NHW1# ¥17,300
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1997-12 → —
NHW1# ¥100
43420 — Shaft Assy, Front Drive, LH
43420-47010 Shaft Assy, Front Drive, LH
1997-12 → 1999-01 ended
NHW10 ¥71,400
43420-47011 Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
NHW1# ¥71,400
43420-47012 Shaft Assy, Front Drive, LH
2001-04 → —
NHW11 ¥71,300
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
1997-12 → —
NHW1# ¥110
43420H — Oil Seal, Front Drive Shaft, LH
90311-35019 Oil Seal, Front Drive Shaft, LH
1997-12 → 2000-05 ended
NHW10 ¥400
90311-35046 Oil Seal, Front Drive Shaft, LH
2000-05 → 2003-08 ended
NHW11 ¥270
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12150 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → —
NHW11 ¥370
42345-20090 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1999-01 → 2000-05 ended
NHW10 ¥330
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2000-05 → 2001-04 ended
NHW11 ¥530
90949-01947 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-12 → 1999-01 ended
NHW10 ¥360
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12140 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → —
NHW11 ¥580
42345-20110 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1999-01 → 2000-05 ended
NHW10 ¥510
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1999-01 → 2001-04 ended
NHW1# ¥620
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-12 → 1999-01 ended
NHW10 ¥380
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-12 → 1999-01 ended
NHW10 ¥230
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-12 → —
NHW1# ¥80
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2002-02 → —
NHW11 ¥300
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-12 → 2002-03 ended
NHW1# ¥380
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-12 → 2002-03 ended
NHW1# ¥230
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-49075 Shaft Assy, Front Drive Outboard Joint, LH
1997-12 → 1998-04 ended
NHW10 ¥42,300
43470-49076 Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
NHW10 ¥42,300
43470-49077 Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
NHW1# ¥42,300
43470-49078 Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → —
NHW11 ¥42,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
