Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

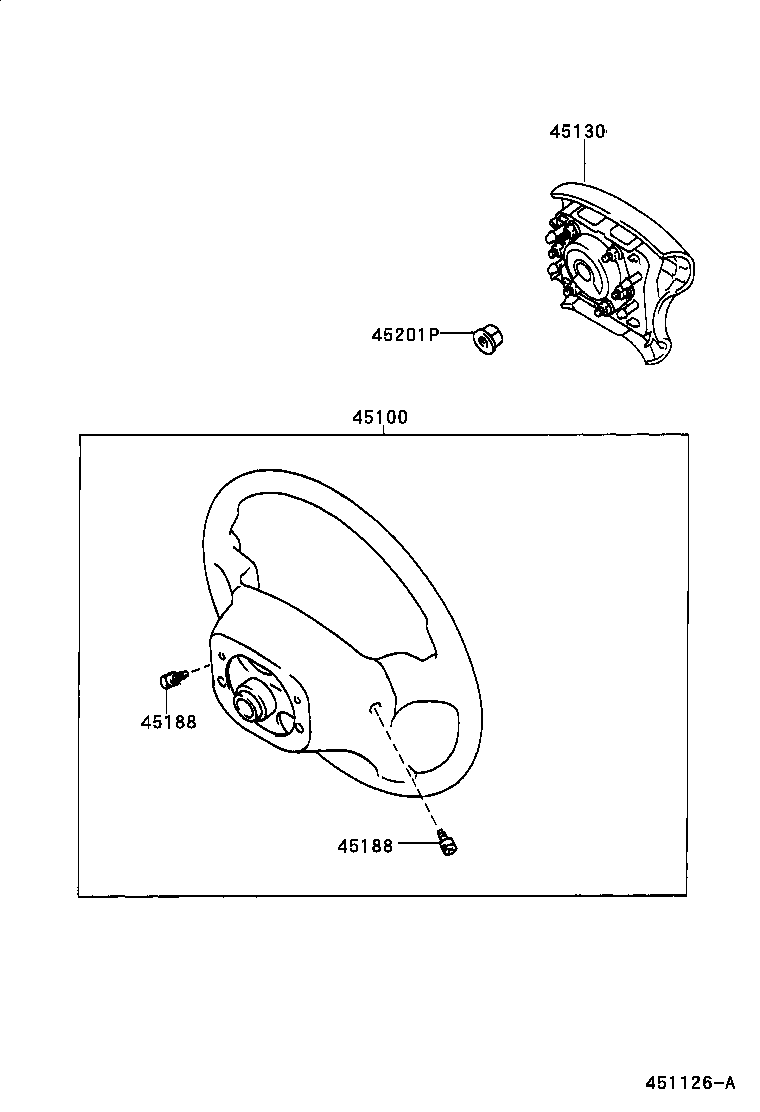

Exploded illustration 451126A 45130 — BUTTON ASSY, HORN (2 parts) 45201P — NUT, STEERING WHEEL SET (1 parts) 45100 — WHEEL ASSY, STEERING (8 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (2 parts) 45188 — SCREW, STEERING WHEEL PAD ATTACHING (2 parts)
451126A · 5 callouts Full size ↗
13 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-21020-B1 note Wheel Assy, Steering
1997-12 → 2000-05 ended
NHW10 ¥27,900
45100-47010-B0 note Wheel Assy, Steering
2000-05 → 2000-07 ended
NHW11 S ¥27,900
45100-47011-B0 note Wheel Assy, Steering
2000-07 → —
NHW11 S ¥27,900
45100-47020-B0 note Wheel Assy, Steering
2000-05 → 2000-07 ended
NHW11 S ¥38,200
45100-47021-B0 note Wheel Assy, Steering
2000-07 → —
NHW11 S ¥38,200
45100-47030-B0 note Wheel Assy, Steering
2000-05 → 2000-07 ended
NHW11 G ¥74,000
45100-47031-B0 note Wheel Assy, Steering
2000-12 → 2001-12 ended
NHW11 S ¥74,000
45100-47031-B0 note Wheel Assy, Steering
2000-07 → —
NHW11 G ¥74,000
45130 — Button Assy, Horn
45130-47010-B0 note Button Assy, Horn
1997-12 → 2000-05 ended
NHW10 ¥77,000
45130-47030-B0 note Button Assy, Horn
2000-05 → —
NHW11 ¥77,000
45188 — Screw, Steering Wheel Pad Attaching
90148-60007 note Screw, Steering Wheel Pad Attaching
2000-05 → —
NHW11 ¥130
90148-60026 note Screw, Steering Wheel Pad Attaching
1997-12 → 2000-05 ended
NHW10 ¥110
45201P — Nut, Steering Wheel Set
90179-12071 Nut, Steering Wheel Set
1997-12 → —
NHW1# ¥130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
