Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

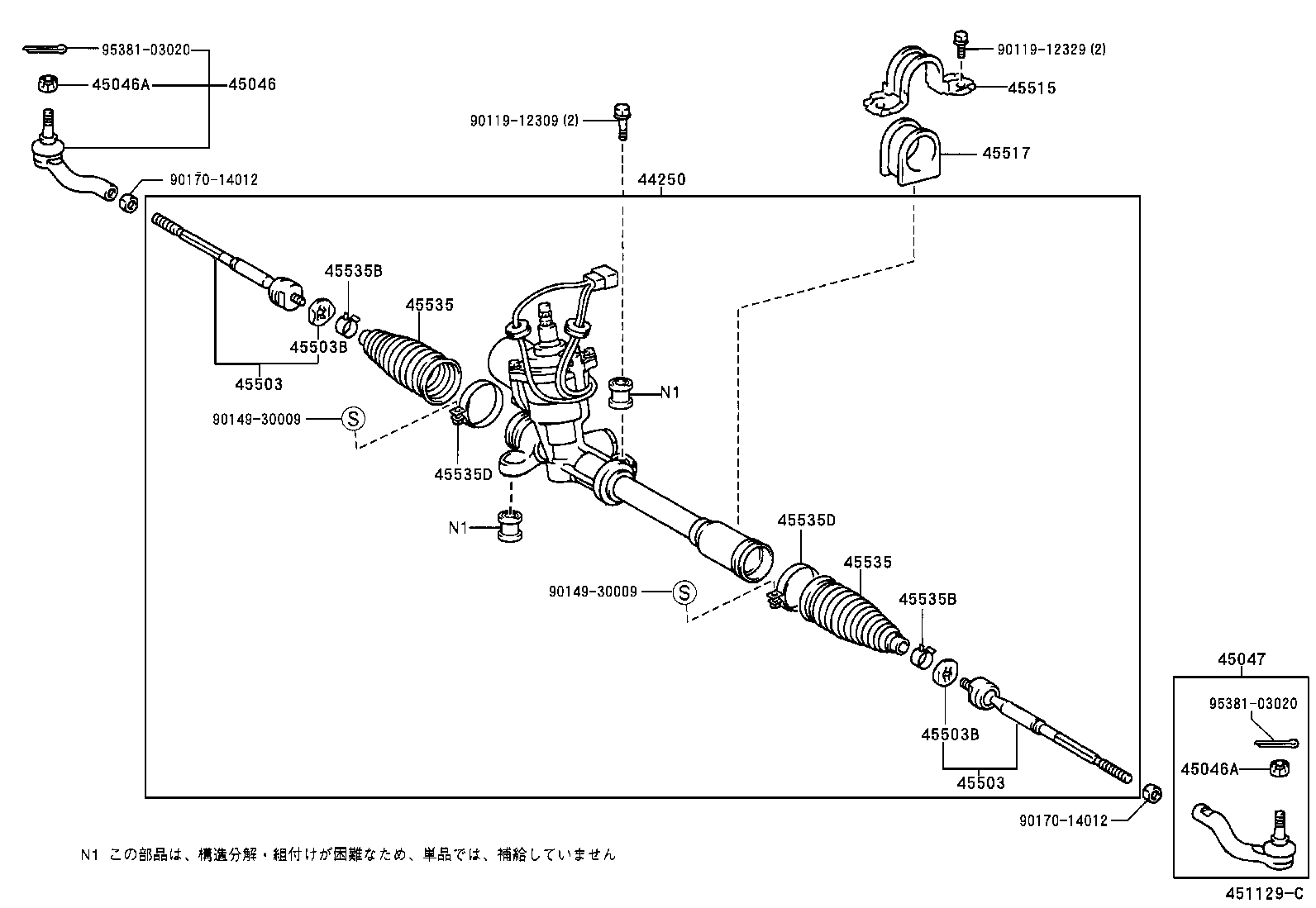

Exploded illustration 451129C 9538103020 — not listed in this catalogue 9011912329 — not listed in this catalogue 45046A — NUT, CASTLE(FOR TIE ROD END) (1 parts) 45046 — END SUB-ASSY, TIE ROD, RH (2 parts) 45515 — BRACKET, STEERING RACK HOUSING, NO.2 (1 parts) 9011912309 — not listed in this catalogue 45517 — GROMMET, STEERING RACK HOUSING, NO.2 (2 parts) 44250 — GEAR ASSY, POWER STEERING(FOR RACK & PINION) (2 parts) 9017014012 — not listed in this catalogue 45535B — CLIP(FOR STEERING RACK BOOT) (1 parts) 45535 — BOOT, STEERING RACK, NO.1 (1 parts) 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 9014930009 — not listed in this catalogue 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (1 parts) 45535D — CLAMP(FOR STEERING RACK BOOT NO.1) (1 parts) 45535 — BOOT, STEERING RACK, NO.1 (1 parts) 9014930009 — not listed in this catalogue 45535B — CLIP(FOR STEERING RACK BOOT) (1 parts) 45047 — END SUB-ASSY, TIE ROD, LH (2 parts) 9538103020 — not listed in this catalogue 45503B — WASHER, CLAW(FOR STEERING RACK END) (2 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (1 parts) 45503 — END SUB-ASSY, STEERING RACK (2 parts) 9017014012 — not listed in this catalogue
451129C · 17 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
44250 — Gear Assy, Power Steering(FOR RACK & PINION)
44200-47050 Gear Assy, Power Steering(FOR RACK & PINION)
2000-05 → —
NHW11 ¥152,000
44250-47010 Gear Assy, Power Steering(FOR RACK & PINION)
1997-12 → 2000-05 ended
NHW10 ¥141,000
45046 — End Sub-assy, Tie Rod, RH
45046-49085 End Sub-assy, Tie Rod, RH
1997-12 → 2000-05 ended
NHW10 ¥3,880
45046-49115 End Sub-assy, Tie Rod, RH
2000-05 → —
NHW11 ¥4,280
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
1997-12 → —
NHW1# ¥130
45047 — End Sub-assy, Tie Rod, LH
45047-49015 End Sub-assy, Tie Rod, LH
1997-12 → 2000-05 ended
NHW10 ¥3,880
45047-49045 End Sub-assy, Tie Rod, LH
2000-05 → —
NHW11 ¥4,280
45503 — End Sub-assy, Steering Rack
45503-49015 End Sub-assy, Steering Rack
1997-12 → 2000-05 ended
NHW10 ¥4,140
45503-49075 End Sub-assy, Steering Rack
2000-05 → —
NHW11 ¥6,700
45503B — Washer, Claw(FOR STEERING RACK END)
90214-14002 note Washer, Claw(FOR STEERING RACK END)
1997-12 → 2000-05 ended
NHW10 ¥550
90214-18004 note Washer, Claw(FOR STEERING RACK END)
2000-05 → —
NHW11 ¥180
45515 — Bracket, Steering Rack Housing, NO.2
45515-20150 Bracket, Steering Rack Housing, NO.2
1997-12 → —
NHW1# ¥1,080
45517 — Grommet, Steering Rack Housing, NO.2
45517-47010 Grommet, Steering Rack Housing, NO.2
1997-12 → 2000-05 ended
NHW10 ¥1,140
45517-47020 Grommet, Steering Rack Housing, NO.2
2000-05 → —
NHW11 ¥1,140
45535 — Boot, Steering Rack, NO.1
45535-47011 Boot, Steering Rack, NO.1
1997-12 → —
NHW1# ¥1,280
45535B — Clip(FOR STEERING RACK BOOT)
90467-19019 Clip(FOR STEERING RACK BOOT)
1997-12 → —
NHW1# ¥320
45535D — Clamp(FOR STEERING RACK BOOT NO.1)
90460-60004 Clamp(FOR STEERING RACK BOOT NO.1)
1997-12 → —
NHW1# ¥400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
