Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

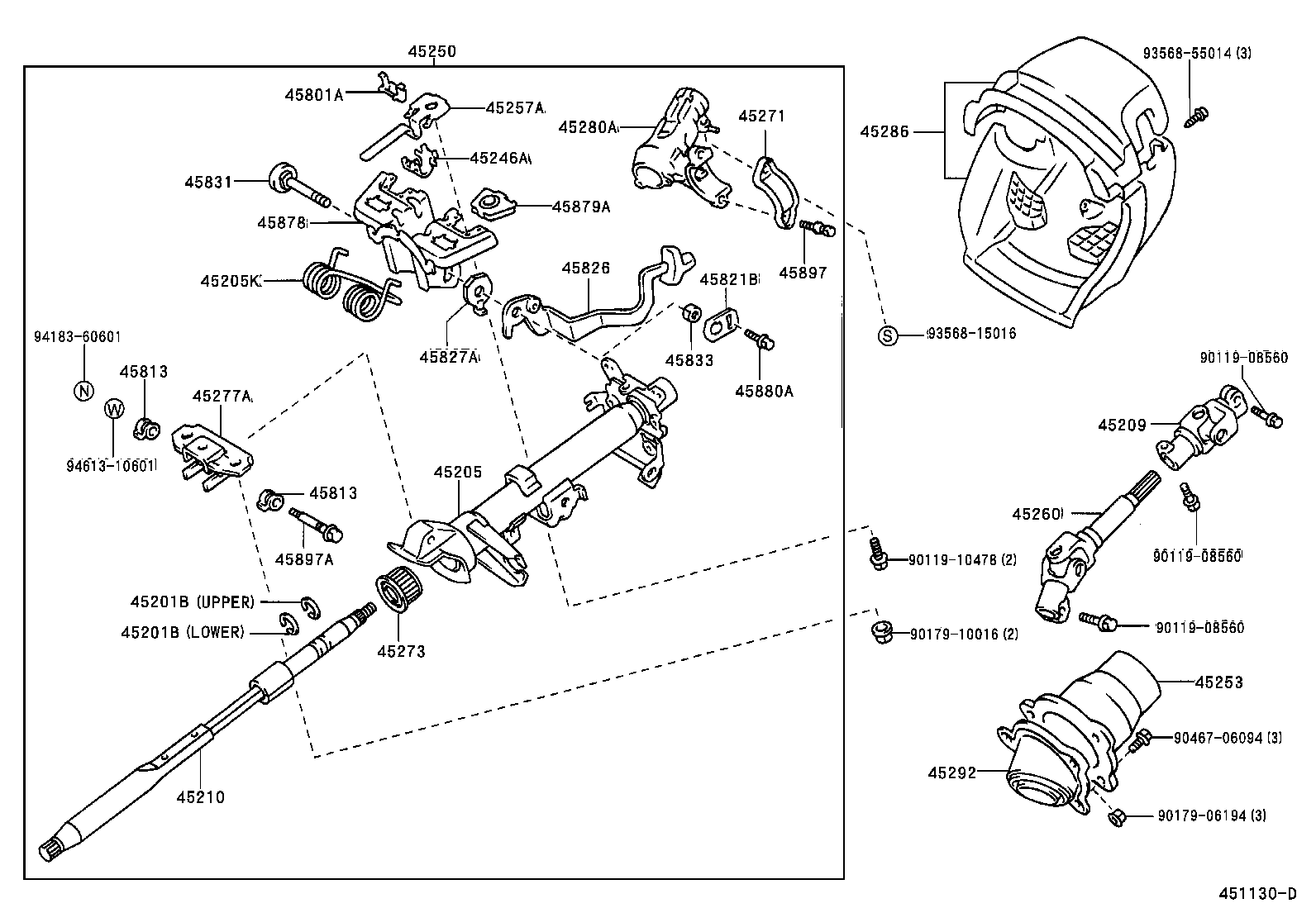

37 parts on this figure

Part number	Description	Fitment	Price
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note	Ring, Shaft Snap(FOR STEERING MAIN SHAFT) 1997-12 → —	NHW1#	¥120
90520-17269 note	Ring, Shaft Snap(FOR STEERING MAIN SHAFT) 1997-12 → —	NHW1#	¥120
45205 — Tube Sub-assy, Steering Column
45205-47010	Tube Sub-assy, Steering Column 1997-12 → —	NHW1#	¥6,700
45205K — Spring(FOR STEERING COLUMN TUBE)
90949-03027	Spring(FOR STEERING COLUMN TUBE) 1997-12 → —	NHW1#	¥850
45209 — Yoke Sub-assy, Steering Sliding
45209-47010	Yoke Sub-assy, Steering Sliding 1997-12 → 2000-05 ended	NHW10	¥7,600
45209-47030	Yoke Sub-assy, Steering Sliding 2000-05 → —	NHW11	¥7,600
45210 — Shaft Assy, Steering Main
45210-47010	Shaft Assy, Steering Main 1997-12 → 1999-08 ended	NHW10	¥22,900
45210-47011	Shaft Assy, Steering Main 1999-08 → —	NHW1#	¥22,900
45246A — Guide, Steering Energy Absorbing Plate
45246-12110	Guide, Steering Energy Absorbing Plate 1997-12 → —	NHW1#	¥230
45250 — Column Assy, Steering
45250-47010-B0 note	Column Assy, Steering 2000-05 → —	NHW11	¥57,000
45250-47010-B0 note	Column Assy, Steering 1997-12 → 2000-05 ended	NHW10	¥57,000
45253 — Cover, Steering Column Hole
45253-47010	Cover, Steering Column Hole 1997-12 → 2000-05 ended	NHW10	¥2,160
45253-47020	Cover, Steering Column Hole 2000-05 → —	NHW11	¥2,160
45257A — Plate, Steering Column Energy Absorbing
45257-12070	Plate, Steering Column Energy Absorbing 1997-12 → —	NHW1#	¥390
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-47010	Shaft Assy, Steering Intermediate, NO.2 1997-12 → 2000-05 ended	NHW10	¥14,700
45260-47020	Shaft Assy, Steering Intermediate, NO.2 2000-05 → —	NHW11	¥14,700
45271 — Clamp, Steering Column, Upper
45271-16020	Clamp, Steering Column, Upper 1997-12 → —	NHW1#	¥520
45273 — Bush, Steering Main Shaft
45273-12020	Bush, Steering Main Shaft 1997-12 → —	NHW1#	¥590
45277A — Support, Tilt Steering
45277-20110	Support, Tilt Steering 1997-12 → —	NHW1#	¥1,280
45280A — Bracket Assy, Steering Column, Upper
45280-28220	Bracket Assy, Steering Column, Upper 1997-12 → 1999-08 ended	NHW10	¥15,500
45280-28221	Bracket Assy, Steering Column, Upper 1999-08 → —	NHW1#	¥16,500
45286 — Cover, Steering Column
45286-47901-B0 note	Cover, Steering Column 1997-12 → 2000-05 ended	NHW10	¥4,320
45286-47901-B0 note	Cover, Steering Column 2000-05 → —	NHW11	¥4,320
45292 — Seal, Main Shaft Lower Dust
45292-47010	Seal, Main Shaft Lower Dust 1997-12 → —	NHW1#	¥4,670
45801A — Pin Sub-assy, Steering Energy Absorbing
45875-12010	Pin Sub-assy, Steering Energy Absorbing 1997-12 → —	NHW1#	¥160
45813 — Collar, Tilt Steering Support, NO.1
45813-12010 note	Collar, Tilt Steering Support, NO.1 1997-12 → —	NHW1#	¥120
45821B — Reinforce, Tilt Steering Support, NO.1
45821-12010	Reinforce, Tilt Steering Support, NO.1 1997-12 → —	NHW1#	¥80
45826 — Lever, Steering Tilt
45826-47010-B0 note	Lever, Steering Tilt 2000-05 → —	NHW11	¥1,650
45826-47010-B0 note	Lever, Steering Tilt 1997-12 → 2000-05 ended	NHW10	¥1,650
45827A — Lever, Steering Tilt Sub
45827-12030	Lever, Steering Tilt Sub 1997-12 → —	NHW1#	¥320
45831 — Bolt, Tilt Lever Lock, NO.1
45831-12020	Bolt, Tilt Lever Lock, NO.1 1997-12 → —	NHW1#	¥520
45833 — Nut, Tilt Steering Adjusting, NO.1
45833-12010	Nut, Tilt Steering Adjusting, NO.1 1997-12 → —	NHW1#	¥130
45878 — Bracket, Steering Column Upper Support
45878-12220	Bracket, Steering Column Upper Support 1997-12 → —	NHW1#	¥2,170
45879A — Capsule, Break Away
45879-12050	Capsule, Break Away 1997-12 → —	NHW1#	¥1,030
45880A — Bolt(FOR STEERING TILT LEVER)
45832-12010	Bolt(FOR STEERING TILT LEVER) 1997-12 → —	NHW1#	¥200
45897 — Bolt, Steering Lock Set
45897-12020	Bolt, Steering Lock Set 1997-12 → —	NHW1#	¥210
45897A — Bolt, Tilt Steering Pawl Set
45897-12040	Bolt, Tilt Steering Pawl Set 1997-12 → —	NHW1#	¥480

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
