Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

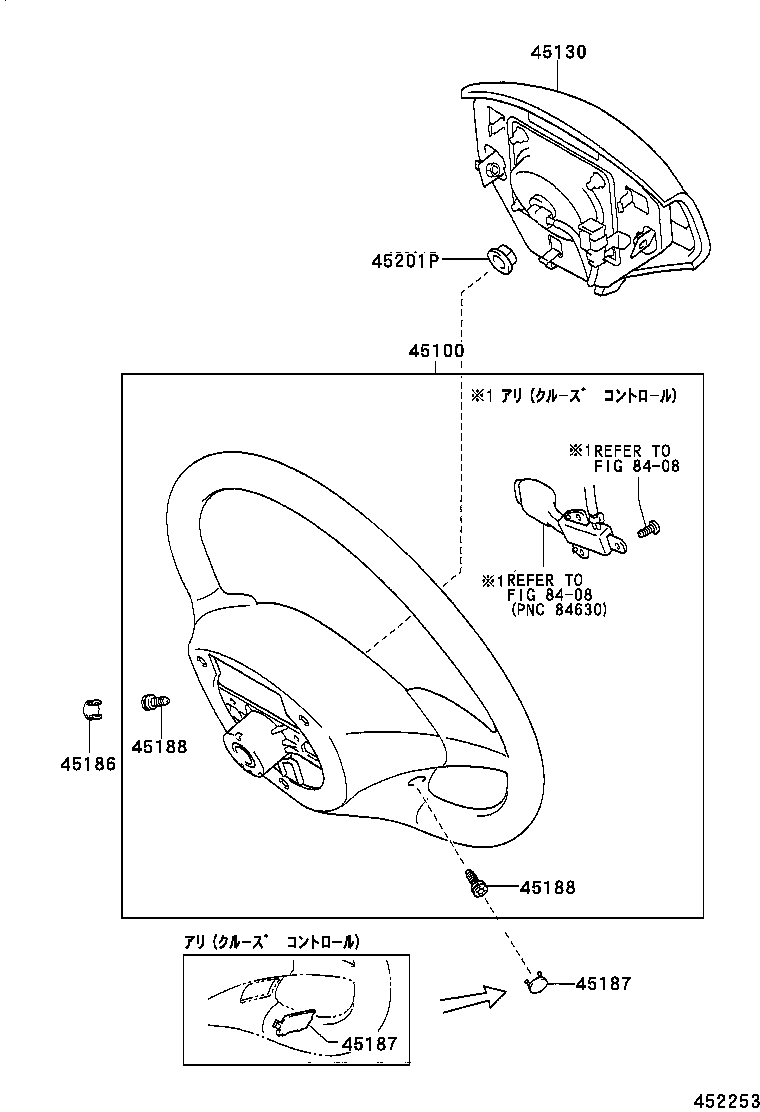

16 parts on this figure

Part number	Description	Fitment	Price
45100 — Wheel Assy, Steering
45100-21020-B1 note	Wheel Assy, Steering 1997-12 → 2000-05 ended	NHW10	¥27,900
45100-47010-B0 note	Wheel Assy, Steering 2000-05 → 2000-07 ended	NHW11 S	¥27,900
45100-47011-B0 note	Wheel Assy, Steering 2000-07 → —	NHW11 S	¥27,900
45100-47020-B0 note	Wheel Assy, Steering 2000-05 → 2000-07 ended	NHW11 S	¥38,200
45100-47021-B0 note	Wheel Assy, Steering 2000-07 → —	NHW11 S	¥38,200
45100-47030-B0 note	Wheel Assy, Steering 2000-05 → 2000-07 ended	NHW11 G	¥74,000
45100-47031-B0 note	Wheel Assy, Steering 2000-12 → 2001-12 ended	NHW11 S	¥74,000
45100-47031-B0 note	Wheel Assy, Steering 2000-07 → —	NHW11 G	¥74,000
45130 — Button Assy, Horn
45130-47010-B0 note	Button Assy, Horn 1997-12 → 2000-05 ended	NHW10	¥77,000
45130-47030-B0 note	Button Assy, Horn 2000-05 → —	NHW11	¥77,000
45186 — Cover, Steering Wheel, Lower NO.2
45186-44010-B7 note	Cover, Steering Wheel, Lower NO.2 2000-05 → —	NHW11	¥110
45187 — Cover, Steering Wheel, Lower NO.3
45186-44010-B7 note	Cover, Steering Wheel, Lower NO.3 2000-05 → —	NHW11 S	¥110
45187-30060-B3 note	Cover, Steering Wheel, Lower NO.3 2000-05 → —	NHW11	¥350
45188 — Screw, Steering Wheel Pad Attaching
90148-60007 note	Screw, Steering Wheel Pad Attaching 2000-05 → —	NHW11	¥130
90148-60026 note	Screw, Steering Wheel Pad Attaching 1997-12 → 2000-05 ended	NHW10	¥110
45201P — Nut, Steering Wheel Set
90179-12071	Nut, Steering Wheel Set 1997-12 → —	NHW1#	¥130

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
