Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

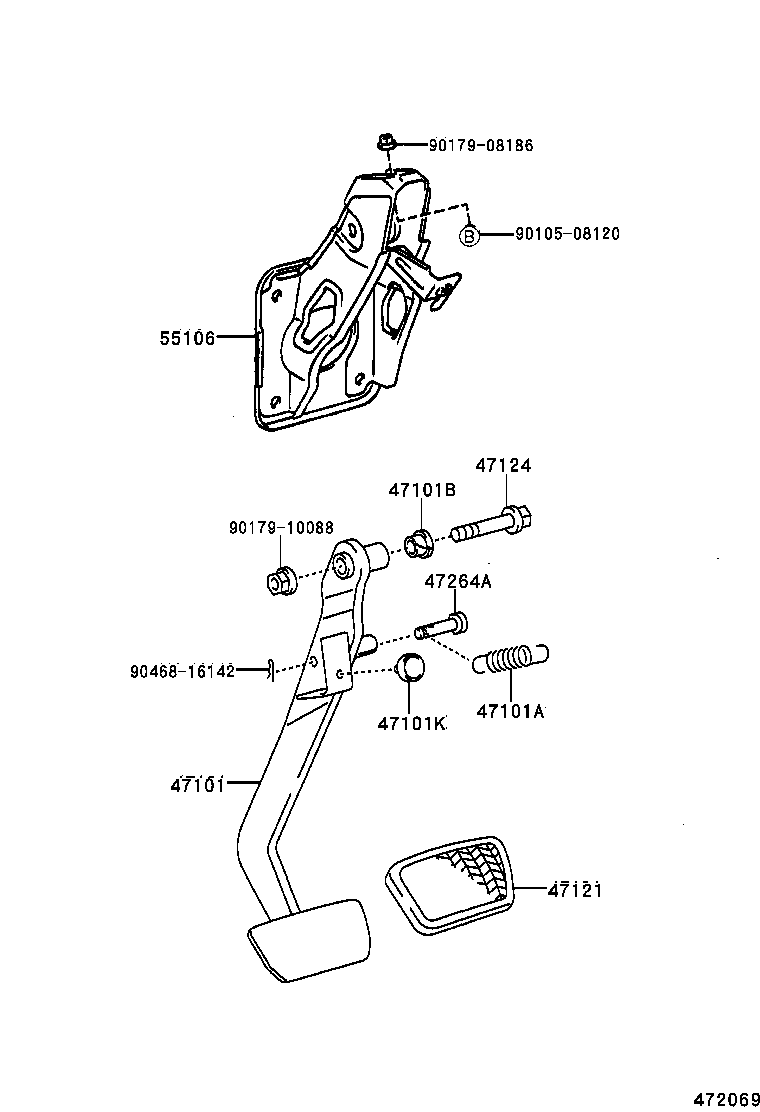

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47101-47010 |
Pedal Sub-assy, Brake
1997-12 → 2000-05
ended
|
NHW10 | ¥2,790 | |
| 47101-47020 |
Pedal Sub-assy, Brake
2000-05 → —
|
NHW11 | ¥2,790 | |
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13007 |
Spring(FOR BRAKE PEDAL RETURN)
1997-12 → 1999-10
ended
|
NHW10 | ¥260 | |
| 90507-14049 |
Spring(FOR BRAKE PEDAL RETURN)
1999-10 → 2000-05
ended
|
NHW10 | ¥260 | |
| 90905-07030 |
Spring(FOR BRAKE PEDAL RETURN)
2000-05 → —
|
NHW11 | ¥300 | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
1997-12 → —
|
NHW1# | ¥120 | |
| 47101K — Cushion(FOR PARKING LOCK CABLE) | ||||
| 90541-06049 |
Cushion(FOR PARKING LOCK CABLE)
1997-12 → 2000-05
ended
|
NHW10 | ¥110 | |
| 90541-06049 |
Cushion(FOR PARKING LOCK CABLE)
2000-05 → —
|
NHW11 | ¥110 | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-14010 |
Pad, Brake Pedal
1997-12 → 2000-05
ended
|
NHW10 | ¥490 | |
| 47121-50010 |
Pad, Brake Pedal
2000-05 → —
|
NHW11 | ¥840 | |
| 47124 — Shaft, Brake Pedal | ||||
| 90101-10015 |
Shaft, Brake Pedal
1997-12 → 2000-05
ended
|
NHW10 | ¥160 | |
| 90109-10167 |
Shaft, Brake Pedal
2000-05 → —
|
NHW11 | ¥190 | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 47148-12020 |
Pin(FOR PUSH ROD)
1997-12 → —
|
NHW1# | ¥250 | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-47010 |
Support Sub-assy, Brake Pedal
1997-12 → 2000-05
ended
|
NHW10 | ¥4,000 | |
| 55106-47020 |
Support Sub-assy, Brake Pedal
2000-05 → —
|
NHW11 | ¥4,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
