Factory parts data · Europe

Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

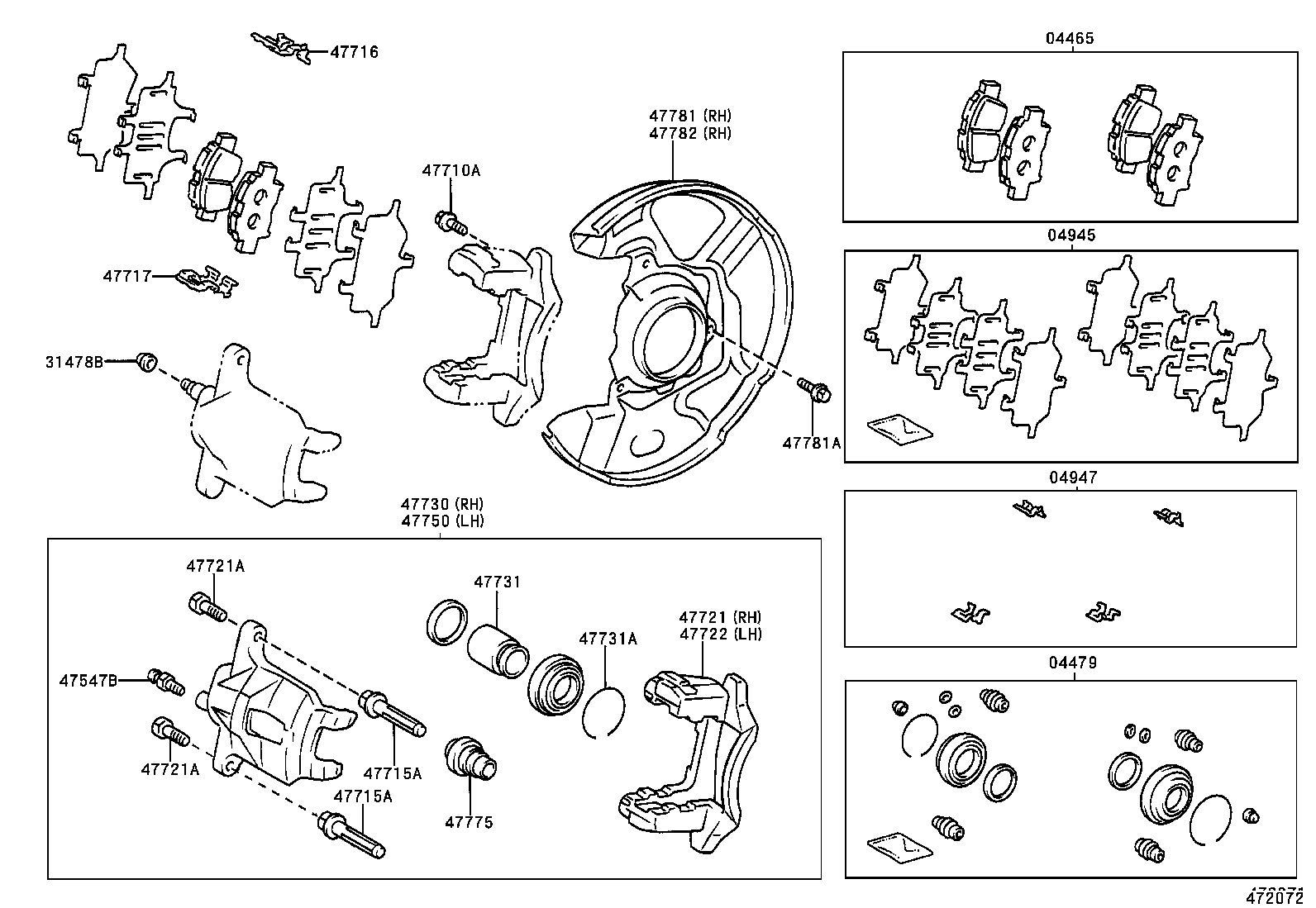

50 parts on this figure
Part number Description Fitment Price
04465 — Pad Kit, Disc Brake, Front
04465-20480 note Pad Kit, Disc Brake, Front
2000-05 → 2001-12 ended
NHW11 ¥9,600
04465-47010 Pad Kit, Disc Brake, Front
1997-12 → 2000-05 ended
NHW10 ¥11,100
04465-47030 note Pad Kit, Disc Brake, Front
2001-12 → —
NHW11 ¥8,800
04465-52010 note Pad Kit, Disc Brake, Front
2001-08 → 2001-12 ended
NHW11 ¥10,200
04465-52120 note Pad Kit, Disc Brake, Front
2001-12 → —
NHW11 ¥10,200
04479 — Cylinder Kit, Disc Brake, Front
04479-20320 note Cylinder Kit, Disc Brake, Front
2001-08 → —
NHW11 ¥3,600
04479-47010 Cylinder Kit, Disc Brake, Front
1997-12 → 2000-05 ended
NHW10 ¥2,530
04479-47020 Cylinder Kit, Disc Brake, Front
2000-05 → —
NHW11 ¥2,790
04945 — Shim Kit, Anti Squeal, Front
04945-20210 Shim Kit, Anti Squeal, Front
2000-05 → —
NHW11 ¥910
04945-47010 Shim Kit, Anti Squeal, Front
1997-12 → 2000-05 ended
NHW10 ¥1,160
04947 — Fitting Kit, Disc Brake, Front
04947-20110 note Fitting Kit, Disc Brake, Front
2001-08 → —
NHW11 ¥1,670
04947-33130 Fitting Kit, Disc Brake, Front
1997-12 → 2000-05 ended
NHW10 ¥2,760
04947-47010 Fitting Kit, Disc Brake, Front
2000-05 → —
NHW11 ¥1,670
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1997-12 → —
NHW1# ¥160
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1997-12 → —
NHW1# ¥200
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90105-12208 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1997-12 → —
NHW1# ¥160
47715A — Pin, Front Disc Brake Cylinder Slide
47715-50010 note Pin, Front Disc Brake Cylinder Slide
1997-12 → 2000-05 ended
NHW10 ¥460
47715-50030 note Pin, Front Disc Brake Cylinder Slide
1997-12 → 2000-05 ended
NHW10 ¥510
47715-52010 Pin, Front Disc Brake Cylinder Slide
2000-05 → —
NHW11 ¥400
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-12070 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2000-05 → —
NHW11 ¥440
47716-20200 note Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2001-08 → —
NHW11 ¥440
47716-33050 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1997-12 → 2000-05 ended
NHW10 ¥300
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47716-33060 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1997-12 → 2000-05 ended
NHW10 ¥300
47717-12030 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2000-05 → —
NHW11 ¥440
47717-20100 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2001-08 → —
NHW11 ¥440
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-12220 Mounting, Front Disc Brake Cylinder, RH
2000-05 → —
NHW11 ¥8,400
47721-20440 note Mounting, Front Disc Brake Cylinder, RH
2001-08 → —
NHW11 ¥8,400
47721-47010 Mounting, Front Disc Brake Cylinder, RH
1997-12 → 2000-05 ended
NHW10 ¥10,700
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1997-12 → —
NHW1# ¥90
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-12040 Mounting, Front Disc Brake Cylinder, LH
2000-05 → —
NHW11 ¥8,400
47722-20130 note Mounting, Front Disc Brake Cylinder, LH
2001-08 → —
NHW11 ¥8,400
47722-47010 Mounting, Front Disc Brake Cylinder, LH
1997-12 → 2000-05 ended
NHW10 ¥10,700
47730 — Cylinder Assy, Front Disc Brake, RH
47730-12490 Cylinder Assy, Front Disc Brake, RH
2000-05 → —
NHW11 ¥44,400
47730-20600 note Cylinder Assy, Front Disc Brake, RH
2001-08 → —
NHW11 ¥37,000
47730-47010 Cylinder Assy, Front Disc Brake, RH
1997-12 → 2000-05 ended
NHW10 ¥47,100
47731 — Piston, Front Disc Brake
47731-12170 Piston, Front Disc Brake
2000-05 → —
NHW11 ¥1,990
47731-12180 Piston, Front Disc Brake
1997-12 → 2000-05 ended
NHW10 ¥2,520
47731-20260 note Piston, Front Disc Brake
2001-08 → —
NHW11 ¥2,490
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90520-86005 note Ring, Set(FOR FRONT DISC BRAKE PISTON)
2001-08 → —
NHW11 ¥190
90522-64003 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1997-12 → 2000-05 ended
NHW10 ¥240
90522-66001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
2000-05 → —
NHW11 ¥160
47750 — Cylinder Assy, Disc Brake, LH
47750-12490 Cylinder Assy, Disc Brake, LH
2000-05 → —
NHW11 ¥44,400
47750-20510 note Cylinder Assy, Disc Brake, LH
2001-08 → —
NHW11 ¥37,000
47750-47010 Cylinder Assy, Disc Brake, LH
1997-12 → 2000-05 ended
NHW10 ¥47,100
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-20080 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1997-12 → 2000-05 ended
NHW10 ¥430
47775-52010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
2000-05 → —
NHW11 ¥350
47781 — Cover, Disc Brake Dust, Front RH
47781-47010 Cover, Disc Brake Dust, Front RH
1997-12 → —
NHW1# ¥1,690
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06134 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1997-12 → 2000-12 ended
NHW1# ¥120
90119-06227 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
2000-12 → —
NHW11 ¥90
47782 — Cover, Disc Brake Dust, Front LH
47782-47010 Cover, Disc Brake Dust, Front LH
1997-12 → —
NHW1# ¥1,690
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
