Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

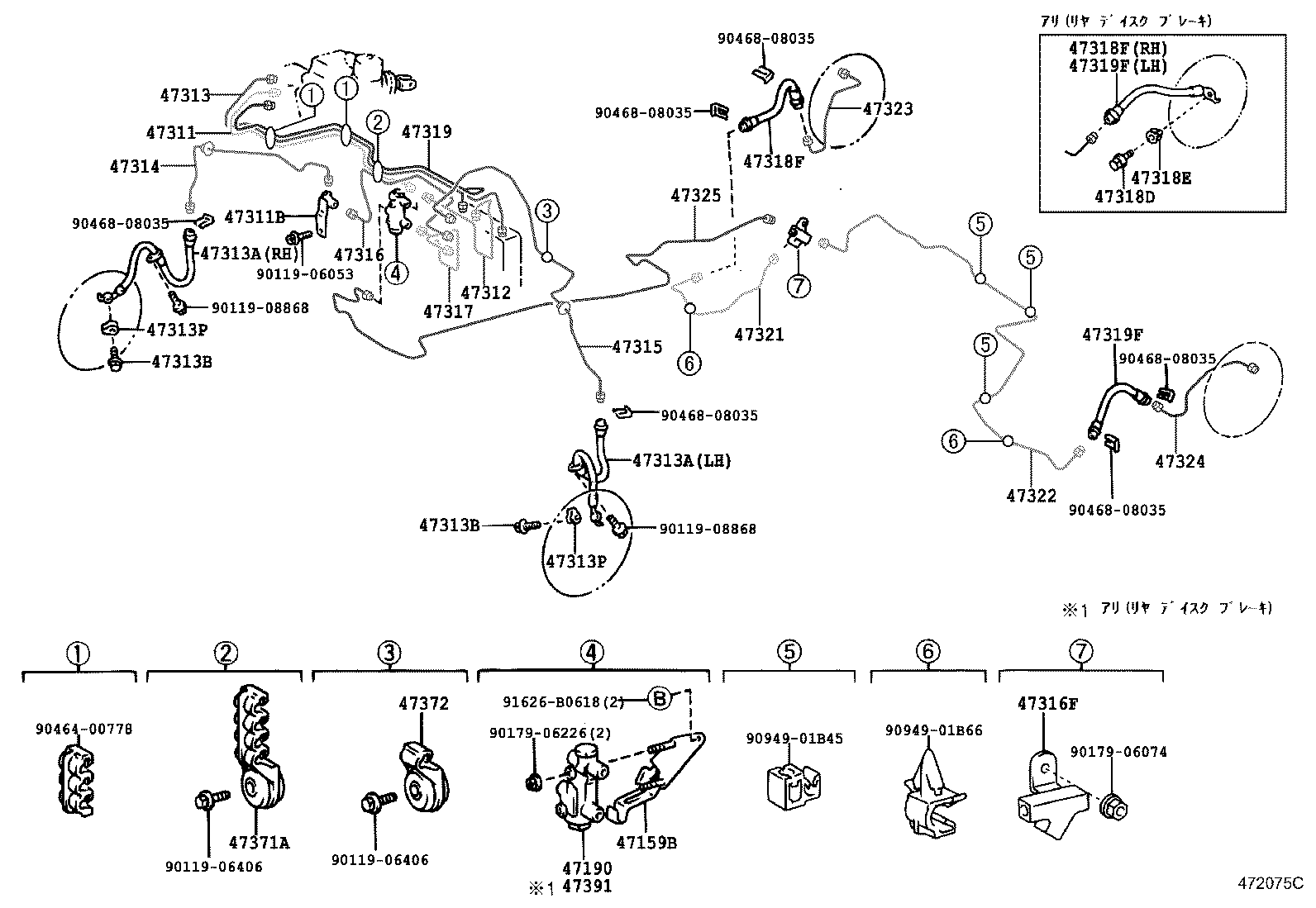

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47159B — Bracket, Proportioning & By-pass Valve | ||||
| 47159-47010 |
Bracket, Proportioning & By-pass Valve
1997-12 → —
|
NHW1# | ¥850 | |
| 47190 — Valve Assy, Proportioning & By-pass | ||||
| 47190-47010 |
Valve Assy, Proportioning & By-pass
1997-12 → 2000-05
ended
|
NHW10 | ¥10,900 | |
| 47190-47020 |
Valve Assy, Proportioning & By-pass
2000-05 → —
|
NHW11 | ¥10,900 | |
| 47311 — Tube, Front Brake, NO.1 | ||||
| 47311-47010 |
Tube, Front Brake, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥940 | |
| 47311-47020 |
Tube, Front Brake, NO.1
2000-05 → —
|
NHW11 | ¥940 | |
| 47311B — Way, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10225 |
Way, NO.1(FOR FRONT BRAKE TUBE)
1997-12 → —
|
NHW1# | ¥990 | |
| 47312 — Tube, Front Brake, NO.2 | ||||
| 47312-47010 |
Tube, Front Brake, NO.2
1997-12 → —
|
NHW1# | ¥750 | |
| 47313 — Tube, Front Brake, NO.3 | ||||
| 47313-47010 |
Tube, Front Brake, NO.3
1997-12 → 2000-05
ended
|
NHW10 | ¥1,320 | |
| 47313-47020 |
Tube, Front Brake, NO.3
2000-05 → —
|
NHW11 | ¥1,090 | |
| 47313A — Hose, Flexible, NO.1(FOR FRONT) | ||||
| 90947-02993 |
Hose, Flexible, NO.1(FOR FRONT)
1997-12 → 2000-05
ended
|
NHW10 | ¥2,610 | |
| 90947-02C51 note |
Hose, Flexible, NO.1(FOR FRONT)
2000-05 → —
|
NHW11 | ¥2,190 | |
| 90947-02C52 note |
Hose, Flexible, NO.1(FOR FRONT)
2000-05 → —
|
NHW11 | ¥2,190 | |
| 47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1997-12 → —
|
NHW1# | ¥220 | |
| 47313P — Gasket(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
Gasket(FOR FRONT FLEXIBLE HOSE)
1997-12 → —
|
NHW1# | ¥280 | |
| 47314 — Tube, Front Brake, NO.4 | ||||
| 47314-47010 |
Tube, Front Brake, NO.4
1997-12 → 2000-05
ended
|
NHW10 | ¥940 | |
| 47314-47020 |
Tube, Front Brake, NO.4
2000-05 → —
|
NHW11 | ¥940 | |
| 47315 — Tube, Front Brake, NO.5 | ||||
| 47315-47010 |
Tube, Front Brake, NO.5
1997-12 → 2000-05
ended
|
NHW10 | ¥1,090 | |
| 47315-47020 |
Tube, Front Brake, NO.5
2000-05 → —
|
NHW11 | ¥1,090 | |
| 47316 — Tube, Front Brake, NO.6 | ||||
| 47316-47010 |
Tube, Front Brake, NO.6
1997-12 → —
|
NHW1# | ¥750 | |
| 47316F — Way, 3(FOR REAR BRAKE TUBE) | ||||
| 90413-10260 |
Way, 3(FOR REAR BRAKE TUBE)
2000-05 → —
|
NHW11 | ¥1,000 | |
| 90904-13045 |
Way, 3(FOR REAR BRAKE TUBE)
1997-12 → 2000-05
ended
|
NHW10 | ¥740 | |
| 47317 — Tube, Front Brake, NO.7 | ||||
| 47317-47010 |
Tube, Front Brake, NO.7
1997-12 → —
|
NHW1# | ¥550 | |
| 47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
Bolt, Union(FOR REAR FLEXIBLE HOSE)
2001-08 → —
|
NHW11 | ¥220 | |
| 47318E — Gasket(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
Gasket(FOR REAR FLEXIBLE HOSE)
2001-08 → —
|
NHW11 | ¥280 | |
| 47318F — Hose, Flexible(FOR REAR RH) | ||||
| 90947-02992 |
Hose, Flexible(FOR REAR RH)
1997-12 → —
|
NHW1# | ¥1,490 | |
| 90947-02A36 note |
Hose, Flexible(FOR REAR RH)
2001-08 → —
|
NHW11 | ¥1,490 | |
| 47319 — Tube, Front Brake, NO.9 | ||||
| 47319-47010 |
Tube, Front Brake, NO.9
1997-12 → 2000-05
ended
|
NHW10 | ¥1,090 | |
| 47319-47020 |
Tube, Front Brake, NO.9
2000-05 → —
|
NHW11 | ¥1,090 | |
| 47319F — Hose, Flexible(FOR REAR LH) | ||||
| 90947-02992 |
Hose, Flexible(FOR REAR LH)
1997-12 → —
|
NHW1# | ¥1,490 | |
| 90947-02A36 note |
Hose, Flexible(FOR REAR LH)
2001-08 → —
|
NHW11 | ¥1,490 | |
| 47321 — Tube, Rear Brake, NO.1 | ||||
| 47321-47010 |
Tube, Rear Brake, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥550 | |
| 47321-47020 |
Tube, Rear Brake, NO.1
2000-05 → —
|
NHW11 | ¥550 | |
| 47322 — Tube, Rear Brake, NO.2 | ||||
| 47322-47010 |
Tube, Rear Brake, NO.2
1997-12 → 2000-05
ended
|
NHW10 | ¥1,630 | |
| 47322-47020 |
Tube, Rear Brake, NO.2
2000-05 → —
|
NHW11 | ¥1,630 | |
| 47323 — Tube, Rear Brake, NO.3 | ||||
| 47323-47010 |
Tube, Rear Brake, NO.3
1997-12 → 2000-05
ended
|
NHW10 | ¥550 | |
| 47323-47020 |
Tube, Rear Brake, NO.3
2000-05 → —
|
NHW11 | ¥550 | |
| 47324 — Tube, Rear Brake, NO.4 | ||||
| 47324-47010 |
Tube, Rear Brake, NO.4
1997-12 → 2000-05
ended
|
NHW10 | ¥550 | |
| 47324-47020 |
Tube, Rear Brake, NO.4
2000-05 → —
|
NHW11 | ¥550 | |
| 47325 — Tube, Rear Brake, NO.5 | ||||
| 47325-47010 |
Tube, Rear Brake, NO.5
1997-12 → 2000-05
ended
|
NHW10 | ¥3,610 | |
| 47325-47020 |
Tube, Rear Brake, NO.5
2000-05 → —
|
NHW11 | ¥3,610 | |
| 47371A — Clamp, Brake Tube, NO.1 | ||||
| 47371-47010 |
Clamp, Brake Tube, NO.1
1997-12 → —
|
NHW1# | ¥350 | |
| 47372 — Clamp, Brake Tube, NO.2 | ||||
| 47371-47020 |
Clamp, Brake Tube, NO.2
1997-12 → —
|
NHW1# | ¥330 | |
| 47391 — Way, Brake Tube | ||||
| 47391-47010 |
Way, Brake Tube
2001-08 → —
|
NHW11 | ¥1,610 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
