Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

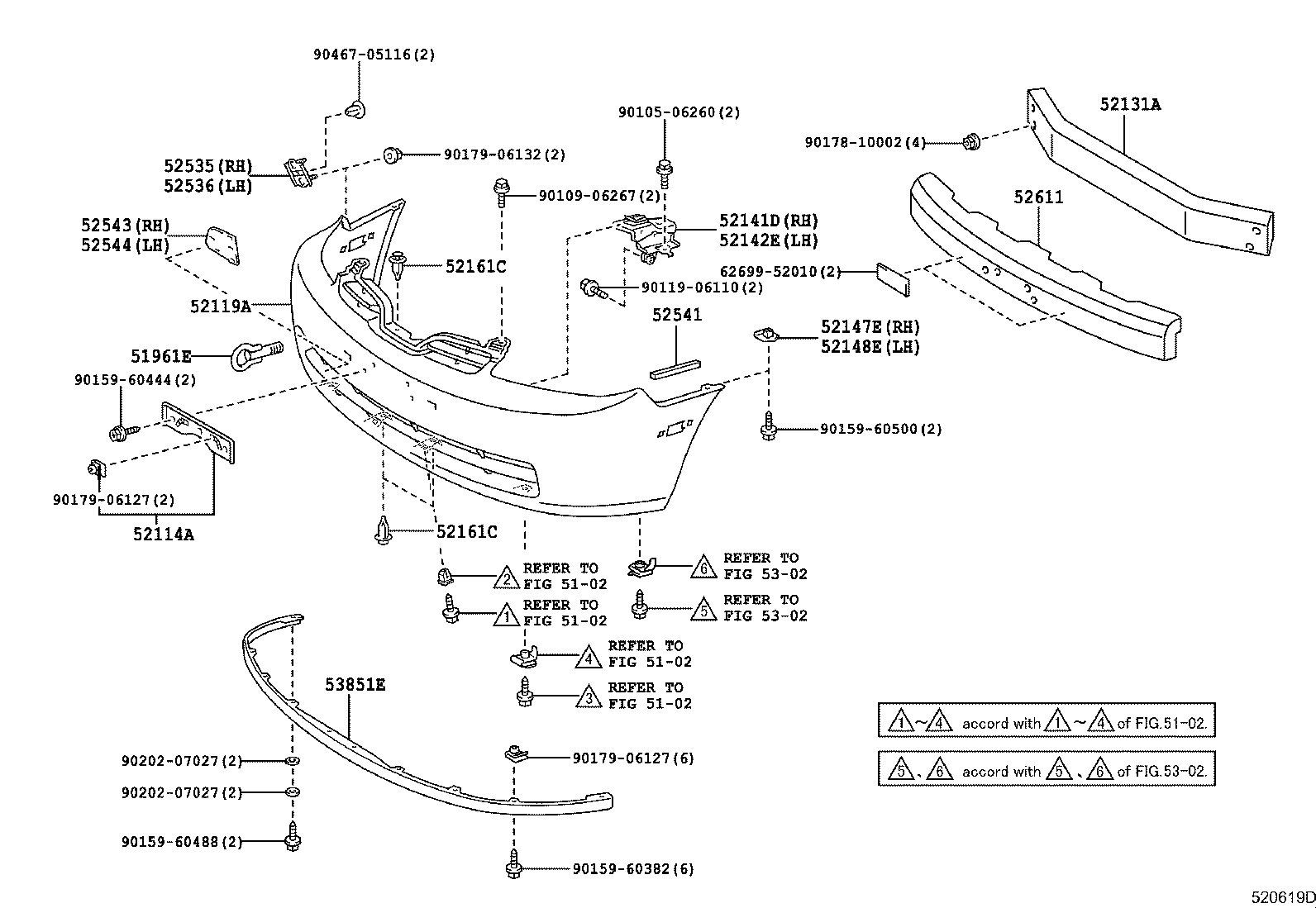

Exploded illustration 520619D 5302 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5302 — not listed in this catalogue 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 52541 — PROTECTOR, FRONT BUMPER (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 52119A — COVER, FRONT BUMPER (18 parts) 51961E — HOOK, FRONT (1 parts) 53851E — PAD, FRONT WHEEL OPENING EXTENSION, NO.1 (1 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (1 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (1 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (1 parts) 52141D — STAY, FRONT BUMPER, RH (3 parts) 52142E — STAY SUB-ASSY, FRONT BUMPER, LH (3 parts) 52147E — BRACKET, FRONT BUMPER MOUNTING, RH (1 parts) 52148E — BRACKET, FRONT BUMPER MOUNTING, LH (1 parts) 52543 — SEAL, FRONT BUMPER SIDE, RH (1 parts) 52544 — SEAL, FRONT BUMPER SIDE, LH (1 parts) 9017810002 — not listed in this catalogue 6269952010 — not listed in this catalogue 9046705116 — not listed in this catalogue 9017906132 — not listed in this catalogue 9010906267 — not listed in this catalogue 9011906110 — not listed in this catalogue 9017906127 — not listed in this catalogue 9020207027 — not listed in this catalogue 9017906127 — not listed in this catalogue 9015960382 — not listed in this catalogue 9015960500 — not listed in this catalogue 9020207027 — not listed in this catalogue 9015960488 — not listed in this catalogue 9015960444 — not listed in this catalogue 9010506260 — not listed in this catalogue
520619D · 17 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
51961E — Hook, Front
51960-47010 Hook, Front
2000-05 → —
NHW11 ¥2,430
52114A — Bracket, Front Bumper Extension Mounting
52114-47020 Bracket, Front Bumper Extension Mounting
2000-05 → —
NHW11 ¥2,240
52119A — Cover, Front Bumper
52119-47010-A0 note Cover, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥73,900
52119-47010-A1 note Cover, Front Bumper
1998-11 → 2000-05 ended
NHW10 ¥73,900
52119-47010-B0 note Cover, Front Bumper
1999-11 → 2000-05 ended
NHW10 ¥73,900
52119-47010-D0 note Cover, Front Bumper
1997-12 → 1999-01 ended
NHW10 ¥73,900
52119-47010-G1 note Cover, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥73,900
52119-47010-H0 note Cover, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥73,900
52119-47010-J0 note Cover, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥73,900
52119-47010-K0 note Cover, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥73,900
52119-47020-A0 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-A1 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-B0 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-C0 note Cover, Front Bumper
2001-09 → —
NHW11 ¥69,600
52119-47020-D0 note Cover, Front Bumper
2001-08 → —
NHW11 ¥69,600
52119-47020-D0 note Cover, Front Bumper
2000-12 → 2001-12 ended
NHW11 S ¥69,600
52119-47020-G0 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-H0 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-J0 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52119-47020-J1 note Cover, Front Bumper
2000-05 → —
NHW11 ¥69,600
52131A — Reinforcement, Front Bumper
52131-47010 Reinforcement, Front Bumper
1997-12 → 2000-05 ended
NHW10 ¥12,500
52131-47030 Reinforcement, Front Bumper
2000-05 → —
NHW11 ¥39,800
52141D — Stay, Front Bumper, RH
52081-47010 Stay, Front Bumper, RH
1997-12 → 2000-05 ended
NHW10 ¥1,800
52081-47020 Stay, Front Bumper, RH
2000-05 → 2001-11 ended
NHW11 ¥1,800
52081-47021 Stay, Front Bumper, RH
2001-11 → —
NHW11 ¥1,810
52142E — Stay Sub-assy, Front Bumper, LH
52082-47010 Stay Sub-assy, Front Bumper, LH
1997-12 → 2000-05 ended
NHW10 ¥1,800
52082-47020 Stay Sub-assy, Front Bumper, LH
2000-05 → 2001-11 ended
NHW11 ¥1,800
52082-47021 Stay Sub-assy, Front Bumper, LH
2001-11 → —
NHW11 ¥1,810
52147E — Bracket, Front Bumper Mounting, RH
52147-16080 Bracket, Front Bumper Mounting, RH
1997-12 → —
NHW1# ¥380
52148E — Bracket, Front Bumper Mounting, LH
52147-16080 Bracket, Front Bumper Mounting, LH
1997-12 → —
NHW1# ¥380
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
1997-12 → —
NHW1# ¥120
52535 — Retainer, Front Bumper Side, RH
52535-47010 Retainer, Front Bumper Side, RH
1997-12 → —
NHW1# ¥410
52536 — Retainer, Front Bumper Side, LH
52536-47010 Retainer, Front Bumper Side, LH
1997-12 → —
NHW1# ¥410
52541 — Protector, Front Bumper
52541-47010 Protector, Front Bumper
1997-12 → —
NHW1# ¥470
52543 — Seal, Front Bumper Side, RH
52543-47010 Seal, Front Bumper Side, RH
2000-05 → —
NHW11 ¥940
52544 — Seal, Front Bumper Side, LH
52544-47010 Seal, Front Bumper Side, LH
2000-05 → —
NHW11 ¥940
52611 — Absorber, Front Bumper Energy
52611-47010 Absorber, Front Bumper Energy
2000-05 → —
NHW11 ¥10,500
53851E — Pad, Front Wheel Opening Extension, NO.1
53851-47020 Pad, Front Wheel Opening Extension, NO.1
2000-05 → —
NHW11 ¥4,620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
