Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

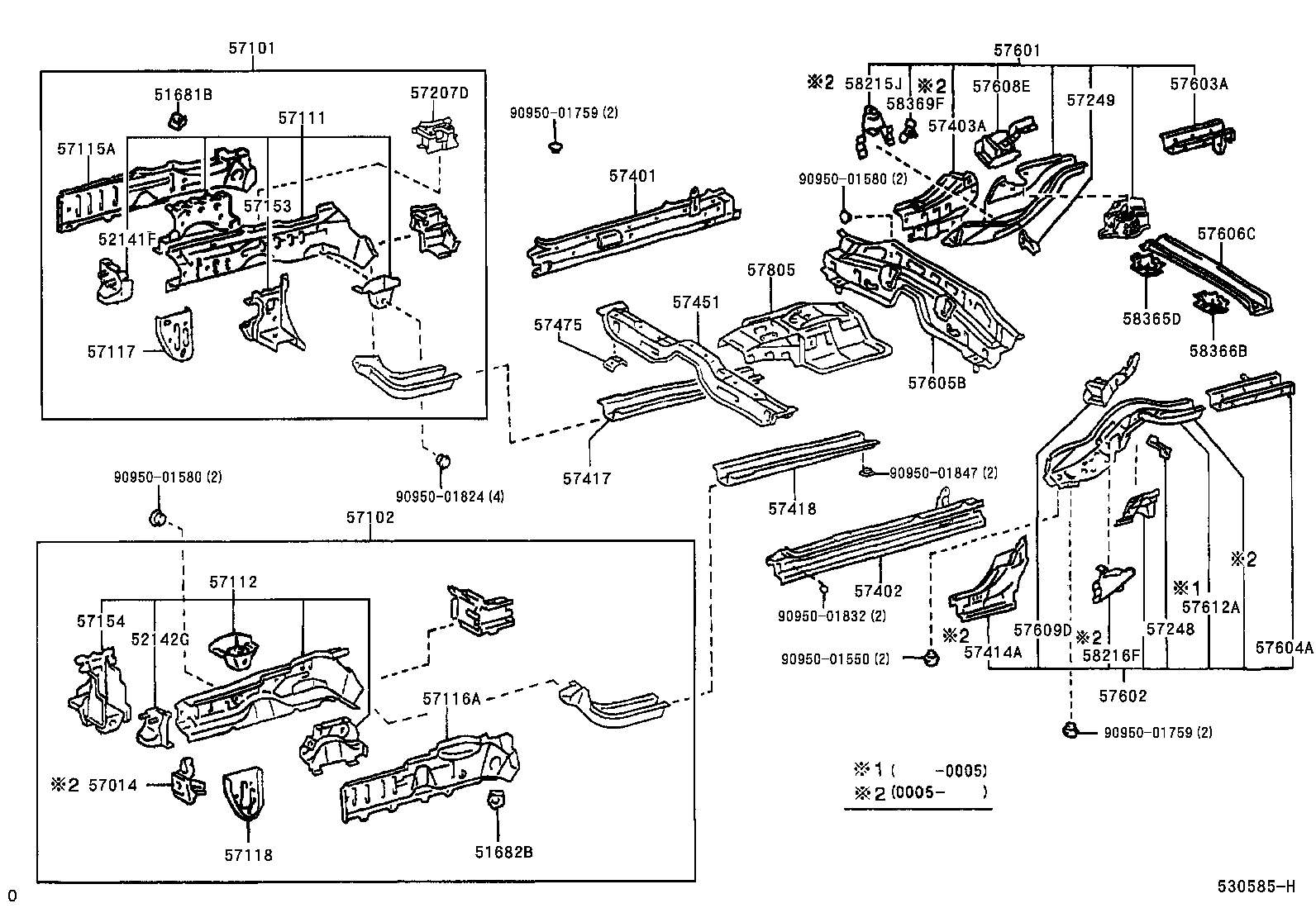

Exploded illustration 530585H 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (2 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (2 parts) 58215J — BRACKET, REAR SEAT MOUNTING, RH (1 parts) 57603A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH (1 parts) 57608E — REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH (1 parts) 57207D — BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH (1 parts) 51681B — PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH (1 parts) 57249 — BRACKET, FLEXIBLE HOSE, NO.1 (1 parts) 58369F — BRACKET, FUEL TUBE, NO.3 (1 parts) 9095001759 — not listed in this catalogue 57111 — MEMBER, FRONT SIDE, RH (2 parts) 57403A — MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 (1 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (1 parts) 57401 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH (2 parts) 9095001580 — not listed in this catalogue 57153 — REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH (1 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (2 parts) 52141F — ARM, FRONT BUMPER, RH (2 parts) 57805 — REINFORCEMENT SUB-ASSY, BELT ANCHOR (3 parts) 57451 — MEMBER, FRONT FLOOR CROSS (5 parts) 58365D — BRACKET, FUEL TANK SUPPORT, RH (2 parts) 57475 — PLATE, FRONT FLOOR CROSSMEMBER (2 parts) 58366B — BRACKET, FUEL TANK SUPPORT, LH (1 parts) 57117 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH (1 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (2 parts) 9095001847 — not listed in this catalogue 9095001580 — not listed in this catalogue 57417 — REINFORCEMENT, FRONT FLOOR UNDER, RH (1 parts) 9095001824 — not listed in this catalogue 57418 — REINFORCEMENT, FRONT FLOOR UNDER, LH (1 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (2 parts) 57112 — MEMBER, FRONT SIDE, LH (2 parts) 57402 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH (2 parts) 57612A — MEMBER, REAR FLOOR SIDE, LH (1 parts) 9095001832 — not listed in this catalogue 57154 — REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH (1 parts) 57248 — BRACKET, FLEXIBLE HOSE, NO.2 (1 parts) 57609D — REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH (1 parts) 52142G — ARM, FRONT BUMPER, LH (2 parts) 57604A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH (1 parts) 57414A — MEMBER, FLOOR SIDE, INNER REAR LH (1 parts) 58216F — BRACKET, REAR SEAT MOUNTING, LH (1 parts) 9095001550 — not listed in this catalogue 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (2 parts) 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (1 parts) 9095001759 — not listed in this catalogue 57014 — MEMBER SUB-ASSY, FLOOR, FRONT LH (1 parts) 51682B — BRACKET, FLEXIBLE HOSE, LH (1 parts) 57118 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH (1 parts)
530585H · 41 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
51681B — Plate, Front Brake Flexible Hose Support, RH
51681-47010 Plate, Front Brake Flexible Hose Support, RH
1997-12 → —
NHW1# ¥710
51682B — Bracket, Flexible Hose, LH
51682-47010 Bracket, Flexible Hose, LH
1997-12 → —
NHW1# ¥710
52141F — Arm, Front Bumper, RH
52141-47010 Arm, Front Bumper, RH
1997-12 → 2000-05 ended
NHW10 ¥2,060
52141-47020 Arm, Front Bumper, RH
2000-05 → —
NHW11 ¥2,350
52142G — Arm, Front Bumper, LH
52142-47010 Arm, Front Bumper, LH
1997-12 → 2000-05 ended
NHW10 ¥2,060
52142-47020 Arm, Front Bumper, LH
2000-05 → —
NHW11 ¥2,350
57014 — Member Sub-assy, Floor, Front LH
57014-47010 Member Sub-assy, Floor, Front LH
2000-05 → —
NHW11 ¥2,220
57101 — Member Sub-assy, Front Side, RH
57101-47010 Member Sub-assy, Front Side, RH
1997-12 → 2000-05 ended
NHW10 ¥56,900
57101-47020 Member Sub-assy, Front Side, RH
2000-05 → —
NHW11 ¥56,900
57102 — Member Sub-assy, Front Side, LH
57102-47010 Member Sub-assy, Front Side, LH
1997-12 → 2000-05 ended
NHW10 ¥54,700
57102-47020 Member Sub-assy, Front Side, LH
2000-05 → —
NHW11 ¥56,900
57111 — Member, Front Side, RH
57111-47900 Member, Front Side, RH
1997-12 → 2000-05 ended
NHW10 ¥17,000
57111-47901 Member, Front Side, RH
2000-05 → —
NHW11 ¥21,100
57112 — Member, Front Side, LH
57112-47900 Member, Front Side, LH
1997-12 → 2000-05 ended
NHW10 ¥19,000
57112-47901 Member, Front Side, LH
2000-05 → —
NHW11 ¥23,300
57115A — Plate, Front Side Member, Outer RH
57115-47010 Plate, Front Side Member, Outer RH
1997-12 → —
NHW1# ¥10,700
57116A — Plate, Front Side Member, Outer LH
57116-47010 Plate, Front Side Member, Outer LH
1997-12 → —
NHW1# ¥10,700
57117 — Plate Sub-assy, Front Side Member, Front RH
57117-47010 Plate Sub-assy, Front Side Member, Front RH
1997-12 → —
NHW1# ¥2,590
57118 — Plate Sub-assy, Front Side Member, Front LH
57118-47010 Plate Sub-assy, Front Side Member, Front LH
1997-12 → —
NHW1# ¥2,160
57153 — Reinforcement, Front Side Member, NO.2 RH
57016-47010 Reinforcement, Front Side Member, NO.2 RH
1997-12 → —
NHW1# ¥4,350
57154 — Reinforcement, Front Side Member, NO.2 LH
57017-47010 Reinforcement, Front Side Member, NO.2 LH
1997-12 → —
NHW1# ¥4,350
57207D — Bracket Sub-assy, Engine Rear Mounting Member, RH
57207-47020 Bracket Sub-assy, Engine Rear Mounting Member, RH
2000-05 → —
NHW11 ¥3,940
57248 — Bracket, Flexible Hose, NO.2
57248-47010 Bracket, Flexible Hose, NO.2
1997-12 → —
NHW1# ¥1,070
57249 — Bracket, Flexible Hose, NO.1
57249-47010 Bracket, Flexible Hose, NO.1
1997-12 → —
NHW1# ¥1,070
57401 — Member Sub-assy, Main Floor Side, RH
57401-47010 Member Sub-assy, Main Floor Side, RH
1997-12 → 2000-05 ended
NHW10 ¥15,700
57401-47020 Member Sub-assy, Main Floor Side, RH
2000-05 → —
NHW11 ¥15,600
57402 — Member Sub-assy, Main Floor Side, LH
57402-47010 Member Sub-assy, Main Floor Side, LH
1997-12 → 2000-05 ended
NHW10 ¥15,500
57402-47030 Member Sub-assy, Main Floor Side, LH
2000-05 → —
NHW11 ¥15,600
57403A — Member Sub-assy, Center Floor Cross, NO.3
57403-47010 Member Sub-assy, Center Floor Cross, NO.3
1997-12 → —
NHW1# ¥10,500
57414A — Member, Floor Side, Inner Rear LH
57404-47020 Member, Floor Side, Inner Rear LH
2000-05 → —
NHW11 ¥12,100
57417 — Reinforcement, Front Floor Under, RH
57417-47010 Reinforcement, Front Floor Under, RH
1997-12 → —
NHW1# ¥7,700
57418 — Reinforcement, Front Floor Under, LH
57418-47010 Reinforcement, Front Floor Under, LH
1997-12 → —
NHW1# ¥7,500
57451 — Member, Front Floor Cross
57451-47010 Member, Front Floor Cross
1997-12 → 2000-05 ended
NHW10 ¥10,700
57451-47020 Member, Front Floor Cross
2000-05 → 2000-08 ended
NHW11 ¥10,700
57451-47021 Member, Front Floor Cross
2000-08 → 2000-10 ended
NHW11 ¥10,700
57451-47022 Member, Front Floor Cross
2000-10 → 2001-10 ended
NHW11 ¥10,600
57451-47023 Member, Front Floor Cross
2001-10 → —
NHW11 ¥10,600
57475 — Plate, Front Floor Crossmember
57475-47010 Plate, Front Floor Crossmember
1997-12 → 2000-05 ended
NHW10 ¥620
57475-47020 Plate, Front Floor Crossmember
2000-08 → —
NHW11 ¥680
57601 — Member Sub-assy, Rear Floor Side, RH
57601-47010 Member Sub-assy, Rear Floor Side, RH
1997-12 → 2000-05 ended
NHW10 ¥48,800
57601-47020 Member Sub-assy, Rear Floor Side, RH
2000-05 → —
NHW11 ¥48,800
57602 — Member Sub-assy, Rear Floor Side, LH
57602-47010 Member Sub-assy, Rear Floor Side, LH
1997-12 → 2000-05 ended
NHW10 ¥45,600
57602-47020 Member Sub-assy, Rear Floor Side, LH
2000-05 → —
NHW11 ¥48,800
57603A — Member Sub-assy, Rear Floor Side, Rear RH
57603-47010 Member Sub-assy, Rear Floor Side, Rear RH
1997-12 → —
NHW1# ¥8,900
57604A — Member Sub-assy, Rear Floor Side, Rear LH
57604-47010 Member Sub-assy, Rear Floor Side, Rear LH
1997-12 → —
NHW1# ¥6,500
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-47010 Member Sub-assy, Rear Floor Cross, NO.1
1997-12 → 2000-05 ended
NHW10 ¥18,600
57605-47020 Member Sub-assy, Rear Floor Cross, NO.1
2000-05 → —
NHW11 ¥18,600
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-47010 Member Sub-assy, Rear Floor Cross, NO.2
1997-12 → 2000-05 ended
NHW10 ¥10,600
57606-47020 Member Sub-assy, Rear Floor Cross, NO.2
2000-05 → —
NHW11 ¥13,100
57608E — Reinforce Sub-assy, Side Member TO Floor, RH
57608-47010 Reinforce Sub-assy, Side Member TO Floor, RH
1997-12 → —
NHW1# ¥5,200
57609D — Reinforce Sub-assy, Side Member TO Floor, LH
57609-47010 Reinforce Sub-assy, Side Member TO Floor, LH
1997-12 → —
NHW1# ¥5,200
57612A — Member, Rear Floor Side, LH
57612-47010 Member, Rear Floor Side, LH
1997-12 → 2000-05 ended
NHW10 ¥18,000
57805 — Reinforcement Sub-assy, Belt Anchor
57805-47010 Reinforcement Sub-assy, Belt Anchor
1997-12 → 1999-11 ended
NHW10 ¥11,800
57805-47011 Reinforcement Sub-assy, Belt Anchor
1999-11 → 2000-05 ended
NHW10 ¥11,800
57805-47020 Reinforcement Sub-assy, Belt Anchor
2000-05 → —
NHW11 ¥12,200
58215J — Bracket, Rear Seat Mounting, RH
58215-47020 Bracket, Rear Seat Mounting, RH
2000-05 → —
NHW11 ¥1,560
58216F — Bracket, Rear Seat Mounting, LH
58216-47020 Bracket, Rear Seat Mounting, LH
2000-05 → —
NHW11 ¥1,560
58365D — Bracket, Fuel Tank Support, RH
58365-47010 Bracket, Fuel Tank Support, RH
1997-12 → 2000-05 ended
NHW10 ¥1,840
58366-47010 Bracket, Fuel Tank Support, RH
2000-05 → —
NHW11 ¥1,840
58366B — Bracket, Fuel Tank Support, LH
58366-47010 Bracket, Fuel Tank Support, LH
1997-12 → —
NHW1# ¥1,840
58369F — Bracket, Fuel Tube, NO.3
58369-47010 Bracket, Fuel Tube, NO.3
2000-05 → —
NHW11 ¥360
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
