Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

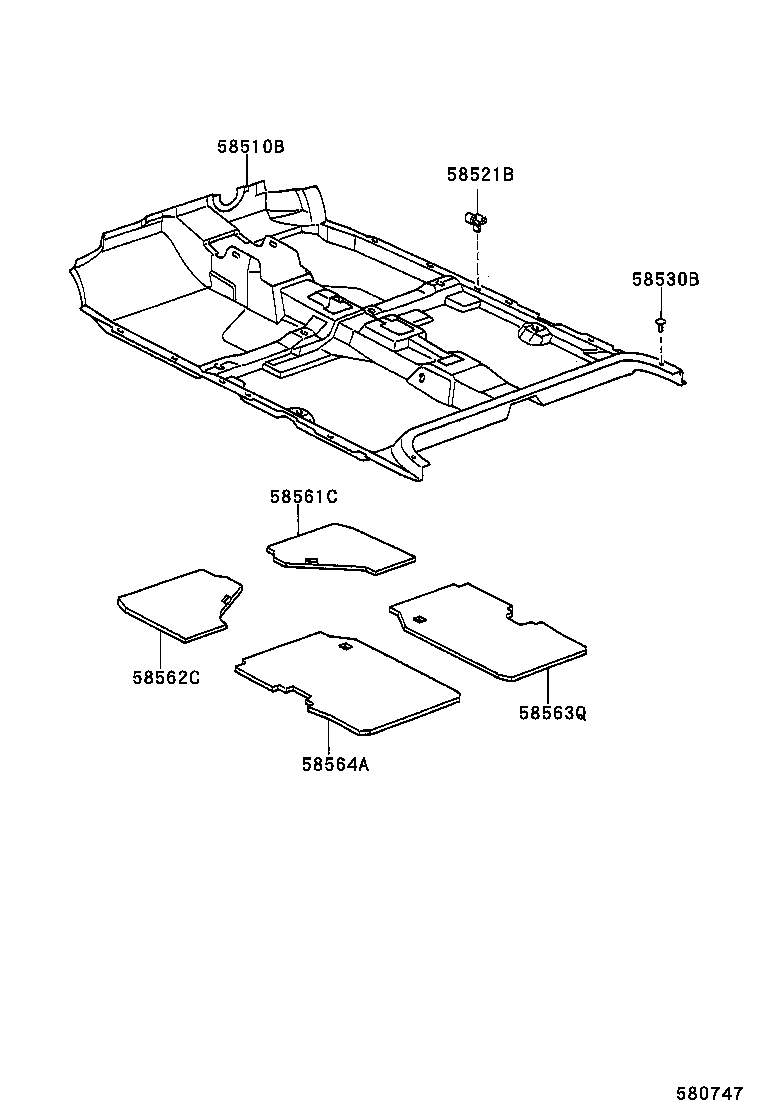

Exploded illustration 580747 58510B — MAT, FRONT FLOOR, FRONT (3 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (1 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (1 parts) 58562C — SILENCER, FRONT FLOOR, NO.2 (1 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (1 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (1 parts)
580747 · 7 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
58510B — Mat, Front Floor, Front
58510-47010-B0 note Mat, Front Floor, Front
1997-12 → 2000-05 ended
NHW10 ¥51,600
58510-47010-K0 note Mat, Front Floor, Front
1997-12 → 2000-05 ended
NHW10 ¥51,600
58510-47020-B0 note Mat, Front Floor, Front
2000-05 → —
NHW11 ¥49,800
58521B — Hook, Floor Carpet
58521-47010 note Hook, Floor Carpet
1997-12 → —
NHW1# ¥380
58521-47020 note Hook, Floor Carpet
1997-12 → —
NHW1# ¥380
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07144 Clip(FOR FRONT FLOOR CARPET)
1997-12 → —
NHW1# ¥130
58561C — Silencer, Front Floor, NO.1
58561-47010 Silencer, Front Floor, NO.1
1997-12 → —
NHW1# ¥1,980
58562C — Silencer, Front Floor, NO.2
58562-47010 Silencer, Front Floor, NO.2
1997-12 → —
NHW1# ¥1,980
58563Q — Silencer, Front Floor, NO.3
58563-47010 Silencer, Front Floor, NO.3
1997-12 → —
NHW1# ¥2,920
58564A — Silencer, Front Floor, NO.4
58564-47010 Silencer, Front Floor, NO.4
1997-12 → —
NHW1# ¥2,920
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
