Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

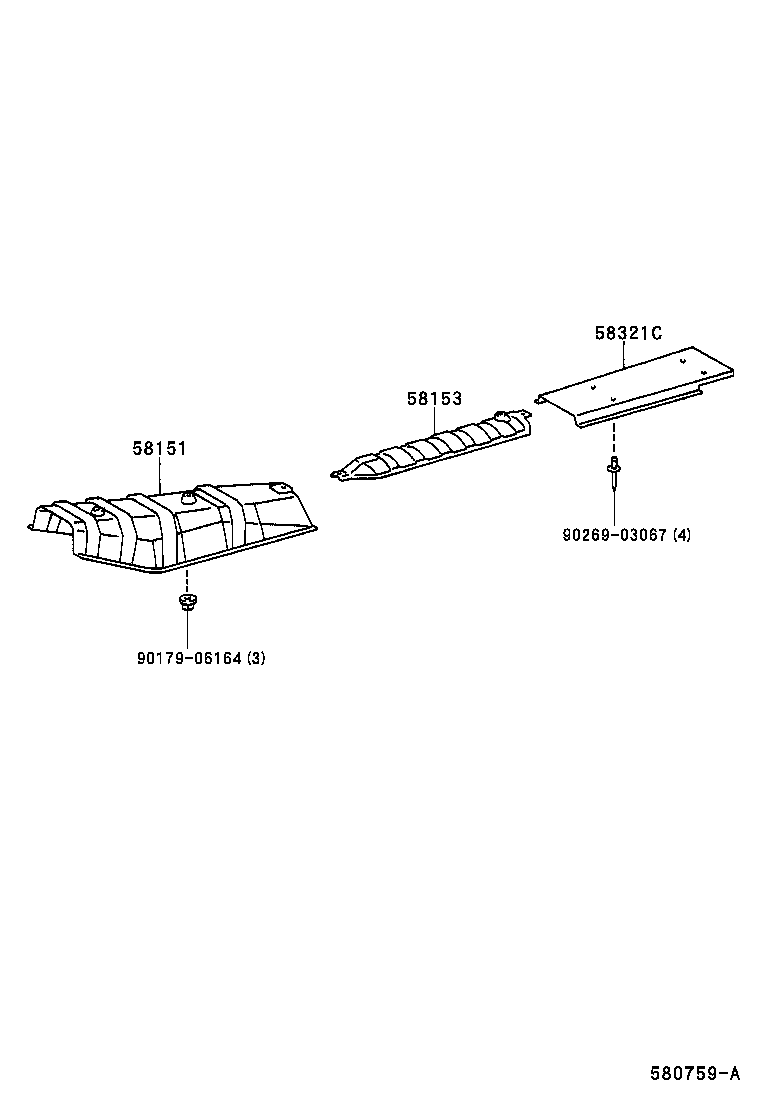

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-47010 |
Insulator, Front Floor Heat, NO.1
1997-12 → 2000-05
ended
|
NHW10 | ¥6,800 | |
| 58151-47020 |
Insulator, Front Floor Heat, NO.1
2000-05 → —
|
NHW11 | ¥6,800 | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-47010 |
Insulator, Front Floor Heat, NO.2
1997-12 → —
|
NHW1# | ¥2,520 | |
| 58321C — Insulator, Rear Floor Heat, Front | ||||
| 58321-47010 |
Insulator, Rear Floor Heat, Front
1997-12 → —
|
NHW1# | ¥3,460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
