Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

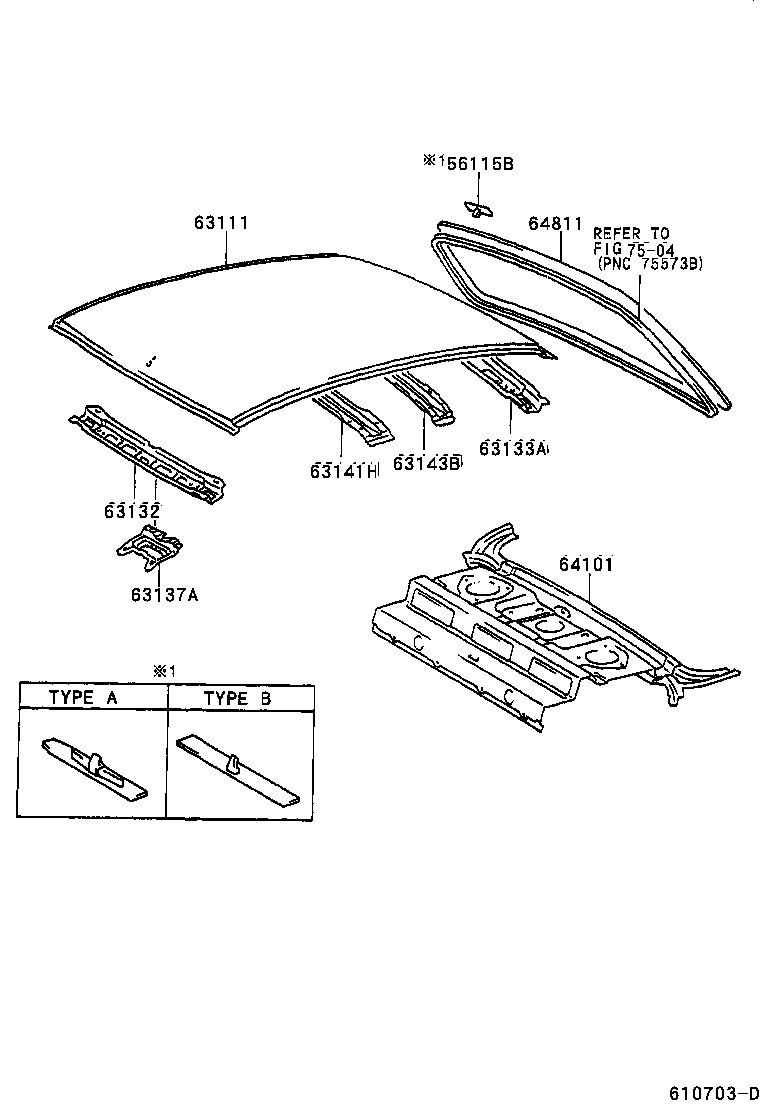

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
56115B — Stopper, Back Window Glass, NO.1
56115-33030 note	Stopper, Back Window Glass, NO.1 1997-12 → —	NHW1#	¥180
56116-35040 note	Stopper, Back Window Glass, NO.1 1997-12 → —	NHW1#	¥210
63111 — Panel, Roof
63111-47010	Panel, Roof 1997-12 → —	NHW1#	¥34,400
63132 — Panel, Windshield Header, Inner
63132-47010	Panel, Windshield Header, Inner 1997-12 → —	NHW1#	¥4,210
63133A — Frame, Back Window, Upper
63133-47010	Frame, Back Window, Upper 1997-12 → —	NHW1#	¥4,360
63137A — Bracket, Dome Lamp, NO.1
63137-47010	Bracket, Dome Lamp, NO.1 2000-05 → —	NHW11	¥1,550
63141H — Reinforcement, Roof Panel, Center
63141-47010	Reinforcement, Roof Panel, Center 1997-12 → —	NHW1#	¥3,880
63143B — Reinforcement, Roof Panel, NO.3
63143-47010	Reinforcement, Roof Panel, NO.3 1997-12 → —	NHW1#	¥2,300
64101 — Panel Sub-assy, Upper Back
64101-47020	Panel Sub-assy, Upper Back 1997-12 → 2000-05 ended	NHW10	¥28,100
64101-47030	Panel Sub-assy, Upper Back 2000-05 → —	NHW11	¥28,100
64811 — Glass, Back Window
64801-47010 note	Glass, Back Window 1997-12 → 1998-05 ended	NHW10	¥70,700
64801-47020 note	Glass, Back Window 1998-05 → 1999-09 ended	NHW10	¥70,700
64811-47021 note	Glass, Back Window 1999-09 → 2000-05 ended	NHW10	¥66,900
64811-47030 note	Glass, Back Window 2000-05 → 2002-08 ended	NHW11	¥66,900
64811-47040 note	Glass, Back Window 2000-05 → 2002-11 ended	NHW11	¥0
64811-47041 note	Glass, Back Window 2002-11 → —	NHW11	¥70,200

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
