Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

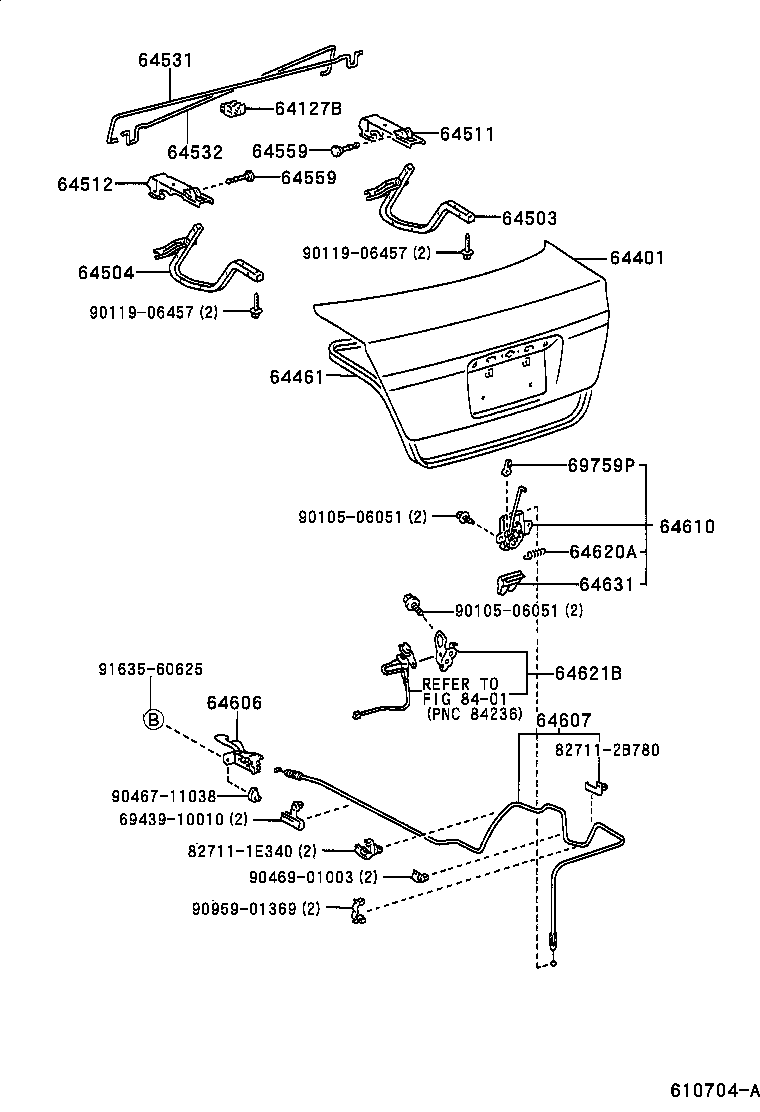

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64127B — Support, Luggage Compartment Door Torsion Bar | ||||
| 64127-20120 |
Support, Luggage Compartment Door Torsion Bar
1997-12 → —
|
NHW1# | ¥780 | |
| 64401 — Panel Sub-assy, Luggage Compartment Door | ||||
| 64401-47010 |
Panel Sub-assy, Luggage Compartment Door
1997-12 → 1999-08
ended
|
NHW10 | ¥35,400 | |
| 64401-47011 |
Panel Sub-assy, Luggage Compartment Door
1999-08 → —
|
NHW1# | ¥35,400 | |
| 64401-47020 note |
Panel Sub-assy, Luggage Compartment Door
2000-05 → —
|
NHW11 | ¥35,400 | |
| 64461 — Weatherstrip, Luggage Compartment Door | ||||
| 64461-47010 |
Weatherstrip, Luggage Compartment Door
1997-12 → —
|
NHW1# | ¥6,200 | |
| 64503 — Arm Sub-assy, Luggage Compartment Door Hinge, RH | ||||
| 64503-47010 |
Arm Sub-assy, Luggage Compartment Door Hinge, RH
1997-12 → —
|
NHW1# | ¥2,590 | |
| 64504 — Arm Sub-assy, Luggage Compartment Door Hinge, LH | ||||
| 64503-47010 |
Arm Sub-assy, Luggage Compartment Door Hinge, LH
1997-12 → —
|
NHW1# | ¥2,590 | |
| 64511 — Support, Luggage Compartment Door Hinge, RH | ||||
| 64511-12230 |
Support, Luggage Compartment Door Hinge, RH
1997-12 → —
|
NHW1# | ¥1,400 | |
| 64512 — Support, Luggage Compartment Door Hinge, LH | ||||
| 64511-12230 |
Support, Luggage Compartment Door Hinge, LH
1997-12 → —
|
NHW1# | ¥1,400 | |
| 64531 — Bar, Luggage Door Hinge Torsion, RH | ||||
| 64531-47010 |
Bar, Luggage Door Hinge Torsion, RH
1997-12 → —
|
NHW1# | ¥1,200 | |
| 64531-47020 note |
Bar, Luggage Door Hinge Torsion, RH
2000-05 → —
|
NHW11 | ¥2,030 | |
| 64532 — Bar, Luggage Door Hinge Torsion, LH | ||||
| 64532-47010 |
Bar, Luggage Door Hinge Torsion, LH
1997-12 → —
|
NHW1# | ¥1,200 | |
| 64532-47020 note |
Bar, Luggage Door Hinge Torsion, LH
2000-05 → —
|
NHW11 | ¥2,030 | |
| 64559 — Pin, Luggage Door Hinge | ||||
| 64559-12040 |
Pin, Luggage Door Hinge
1997-12 → —
|
NHW1# | ¥100 | |
| 64606 — Lever Sub-assy, Luggage Door Lock Open | ||||
| 64606-20180 |
Lever Sub-assy, Luggage Door Lock Open
1997-12 → —
|
NHW1# | ¥3,140 | |
| 64607 — Cable Sub-assy, Luggage Door Lock Control | ||||
| 64607-47010 |
Cable Sub-assy, Luggage Door Lock Control
1997-12 → 1999-09
ended
|
NHW10 | ¥2,680 | |
| 64607-47011 |
Cable Sub-assy, Luggage Door Lock Control
1999-09 → —
|
NHW1# | ¥2,680 | |
| 64610 — Lock Assy, Luggage Compartment Door | ||||
| 64610-47010 |
Lock Assy, Luggage Compartment Door
1997-12 → 2000-05
ended
|
NHW10 | ¥2,790 | |
| 64610-47011 |
Lock Assy, Luggage Compartment Door
2000-05 → —
|
NHW11 | ¥2,790 | |
| 64620A — Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-06010 |
Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
2000-05 → —
|
NHW11 | ¥160 | |
| 90905-06021 |
Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
1997-12 → 2000-05
ended
|
NHW10 | ¥110 | |
| 64621B — Striker, Luggage Compartment Door Lock | ||||
| 64620-47010 |
Striker, Luggage Compartment Door Lock
1997-12 → —
|
NHW1# | ¥1,940 | |
| 64631 — Protector, Luggage Door Lock | ||||
| 64631-12050 |
Protector, Luggage Door Lock
2000-05 → —
|
NHW11 | ¥500 | |
| 64631-16020 |
Protector, Luggage Door Lock
1997-12 → 2000-05
ended
|
NHW10 | ¥660 | |
| 69759P — Snap, Door Lock Control Link | ||||
| 69759-20040 |
Snap, Door Lock Control Link
1997-12 → —
|
NHW1# | ¥220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
