Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

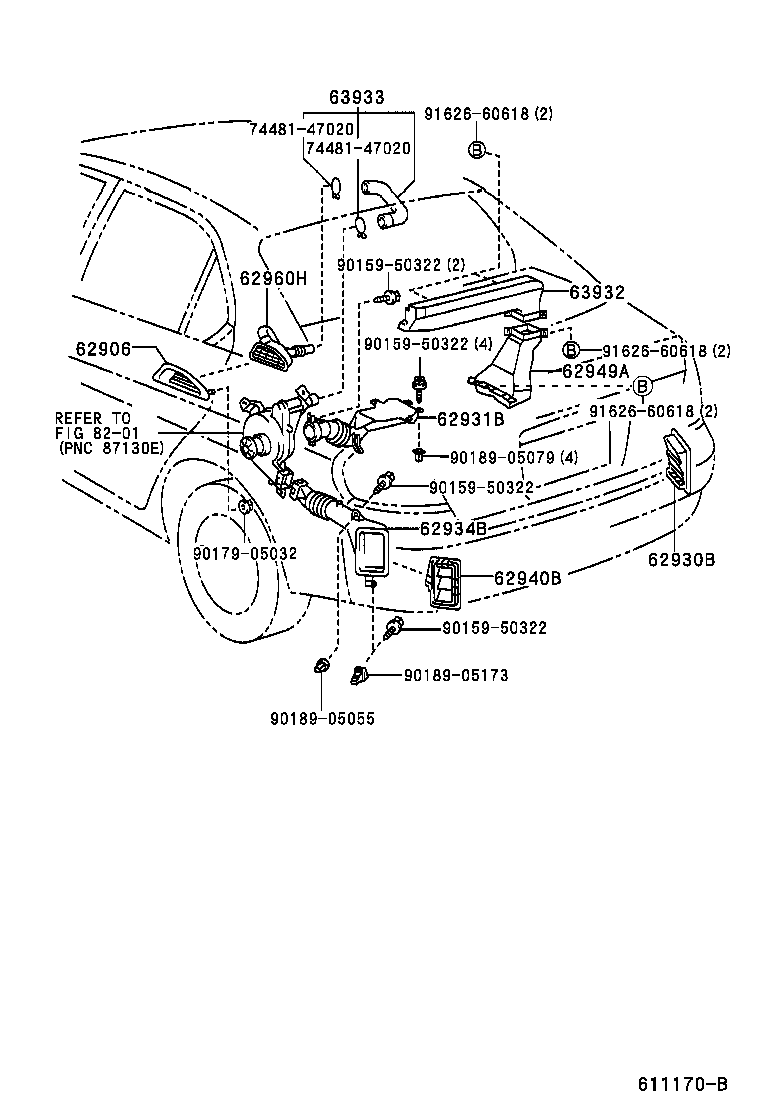

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62906 — Louver, Quater Ventilation, LH | ||||
| 62906-47010-A0 note |
Louver, Quater Ventilation, LH
1997-12 → —
|
NHW1# | ¥3,940 | |
| 62906-47010-A1 note |
Louver, Quater Ventilation, LH
1998-11 → 2000-05
ended
|
NHW10 | ¥3,940 | |
| 62906-47010-A1 note |
Louver, Quater Ventilation, LH
2000-05 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-B0 note |
Louver, Quater Ventilation, LH
1999-11 → 2000-05
ended
|
NHW10 | ¥3,940 | |
| 62906-47010-B1 note |
Louver, Quater Ventilation, LH
2000-05 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-C0 note |
Louver, Quater Ventilation, LH
2001-09 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-D0 note |
Louver, Quater Ventilation, LH
1997-12 → 1999-01
ended
|
NHW10 | ¥3,940 | |
| 62906-47010-D1 note |
Louver, Quater Ventilation, LH
2000-12 → 2001-12
ended
|
NHW11 S | ¥3,940 | |
| 62906-47010-D1 note |
Louver, Quater Ventilation, LH
2001-08 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-G1 note |
Louver, Quater Ventilation, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥3,940 | |
| 62906-47010-G2 note |
Louver, Quater Ventilation, LH
2000-05 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-H0 note |
Louver, Quater Ventilation, LH
1997-12 → —
|
NHW1# | ¥3,940 | |
| 62906-47010-J0 note |
Louver, Quater Ventilation, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥3,940 | |
| 62906-47010-J1 note |
Louver, Quater Ventilation, LH
2000-05 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-J2 note |
Louver, Quater Ventilation, LH
2000-05 → —
|
NHW11 | ¥3,940 | |
| 62906-47010-K0 note |
Louver, Quater Ventilation, LH
1997-12 → 2000-05
ended
|
NHW10 | ¥3,940 | |
| 62930B — Duct Assy, Quarter Vent, RH | ||||
| 62940-16060 |
Duct Assy, Quarter Vent, RH
1997-12 → —
|
NHW1# | ¥2,250 | |
| 62931B — Duct, Quarter Vent | ||||
| 62931-47010 |
Duct, Quarter Vent
2000-05 → —
|
NHW11 | ¥13,000 | |
| 62934B — Duct, Quarter Vent, Inner LH | ||||
| 62934-47020 |
Duct, Quarter Vent, Inner LH
2000-05 → —
|
NHW11 | ¥8,800 | |
| 62940B — Duct Assy, Quarter Vent, LH | ||||
| 62940-10020 |
Duct Assy, Quarter Vent, LH
1997-12 → —
|
NHW1# | ¥4,770 | |
| 62949A — Duct, Quarter Vent, Lower | ||||
| 62949-47010 |
Duct, Quarter Vent, Lower
2000-05 → —
|
NHW11 | ¥6,300 | |
| 62960H — Duct Assy, Quarter Vent, NO.2 LH | ||||
| 62960-47010 |
Duct Assy, Quarter Vent, NO.2 LH
1997-12 → —
|
NHW1# | ¥5,100 | |
| 63932 — Duct, Ventilator, Inner | ||||
| 63932-47010 |
Duct, Ventilator, Inner
1997-12 → 2000-05
ended
|
NHW10 | ¥7,100 | |
| 63932-47020 |
Duct, Ventilator, Inner
2000-05 → —
|
NHW11 | ¥7,500 | |
| 63933 — Duct, Quarter Vent, Inner | ||||
| 62933-47010 |
Duct, Quarter Vent, Inner
1997-12 → 2000-05
ended
|
NHW10 | ¥5,100 | |
| 62933-47020 |
Duct, Quarter Vent, Inner
2000-05 → —
|
NHW11 | ¥1,530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
